D355A-3-5 Komatsu Seals 195-63-05120 Crawler Dozer Lift Cylinder Seal Repair Kit
D355A-3-5 Komatsu Seals 195-63-05120 Crawler Dozer Lift Cylinder Seal Repair Kit
D355A-3-5 Komatsu Seals 195-63-05120 Crawler Dozer Lift Cylinder Seal Repair Kit
D355A-3-5 Komatsu Seals 195-63-05120 Crawler Dozer Lift Cylinder Seal Repair Kit
D355A-3-5 Komatsu Seals 195-63-05120 Crawler Dozer Lift Cylinder Seal Repair Kit
D355A-3-5 Komatsu Seals 195-63-05120 Crawler Dozer Lift Cylinder Seal Repair Kit
D355A-3-5 Komatsu Seals 195-63-05120 Crawler Dozer Lift Cylinder Seal Repair Kit
D355A-3-5 Komatsu Seals 195-63-05120 Crawler Dozer Lift Cylinder Seal Repair Kit
Specifications
Brand Name :
SUNCAR
Model Number :
195-63-05120 KOMATSU D355A-3, D355A-5
CertifiC.A.Tion :
ISO9001
Place of Origin :
CHINA(MAINLAND)
MOQ :
Trial order acceptable
Price :
Negotiation
Payment Terms :
Western Union, L/C, T/T, , D/A, D/P, Paypal
Supply Ability :
3500 set per month
Delivery Time :
3-5 days after payment received(public holiday excluded)
Packaging Details :
PP bag inside, carton box outside
Product Name :
Crawler Dozer Lift Cylinder Seal Repair Kit
Part Number :
195-63-05120
AppliC.A.Tion :
Crawler tractor-loader
Rod :
90MM
Bore :
160MM
Cylinder Numbers :
195-63-01110, 195-63-01120, 195-63-13700, 195-63-13800
Description

D355A-3-5 Komatsu Seals 195-63-05120 Crawler Dozer Lift Cylinder Seal Repair Kit

Product Name Crawler Dozer Lift Cylinder Seal Repair Kit
Model Number KOMATSU D355A-3, D355A-5
Place of Origin China(Mainland)
Brand name SUNCAR
Packing PP bag inside, carton box outside
Shipping Mode By air, by sea, by express(Fedex, UPS, DHL, TNT, etc.)
Part Number 195-63-05120
Payment Terms Western Union, L/C, T/T, Money Gram, D/A, D/P
CertifiC.A.Tion ISO9001
Condition 100% New
Warranty Unavailable
Customized OEM & ODM are welcomed
AppliC.A.Tion Crawler tractor-loader
Preservation Notice Closed, dry and avoid the sun
Quality Original quality, high performance
Uses Good oil resistance, wear resistance, and corrosion resistance
Rod 90MM
Bore 160MM
Cylinder Numbers 195-63-01110, 195-63-01120, 195-63-13700, 195-63-13800

Product Show:

D355A-3-5 Komatsu Seals 195-63-05120 Crawler Dozer Lift Cylinder Seal Repair Kit

D355A-3-5 Komatsu Seals 195-63-05120 Crawler Dozer Lift Cylinder Seal Repair Kit

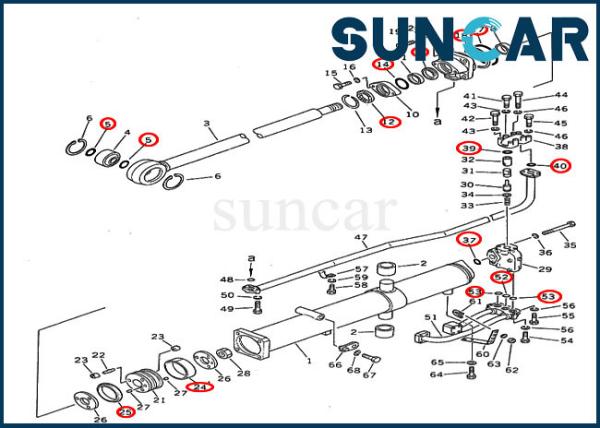

Related Parts:

Pos. Part No. Product Name QYT.
195-63-13700 CYLINDER ASSEMBLY,BLADE LIFT¤ L.H. 1
195-63-13800 CYLINDER ASSEMBLY,BLADE LIFT¤ R.H. 1
1 195-63-13142 • CYLINDER,L.H. 1
195-63-13240 • CYLINDER,R.H. 1
2 195-63-12640 • BUSHING 2
3 195-63-13121 • ROD,PISTON 1
4 07137-05509 • BUSHING 1
5 07000-03055 • O-RING (KIT) 2
6 04071-00125 • RING,SNAP 2
7 195-63-13131 • HEAD,CYLINDER 1
8 07177-09035 • BUSHING 1
9 707-51-90110 • U-PACKING (KIT) 1
10 195-63-52470 • GLAND 1
11 07177-09020 • BUSHING 1
12 195-63-94170 • SEAL,DUST (KIT) 1
13 07179-00113 • RING,SNAP 1
14 07000-03110 • O-RING (KIT) 1
15 01010-51860 • BOLT 2
16 01602-21854 • WASHER,SPRING 2
17 07000-16150 • O-RING (KIT) 1
18 07146-05152 • RING,BACK-UP (KIT) 1
19 01010-82775 • BOLT 4
20 01602-22783 • WASHER,SPRING 4
195-63-82560 • PISTON ASSEMBLY 1
21 •• PISTON 1
22 •• VALVE 3
23 •• SEAT 6
24 07155-01640 • RING,WEAR (KIT) 1
25 707-44-16180 • RING,PISTON (KIT) 1
26 707-40-16010 • RETAINER 2
27 04020-00616 • PIN 2
28 07165-15252 • NUT 1
195-63-14002 • VALVE ASSEMBLY,QUICK DROP VALVE 1
29 •• BODY 1
30 •• VALVE 1
31 •• VALVE 1
32 195-63-14163 •• COLLAR 1
33 195-63-14180 •• SPRING 1
34 01642-21216 •• WASHER 1
35 01011-51615 •• BOLT 2
36 01602-21648 •• WASHER,SPRING 2
37 07000-12055 • O-RING (KIT) 1
38 195-63-14130 • ELBOW 1
39 07000-13048 • O-RING (KIT) 1
40 07000-13045 • O-RING (KIT) 1
41 01010-51075 • BOLT 2
42 01010-51065 • BOLT 2
43 01602-21030 • WASHER,SPRING 4
44 01010-51280 • BOLT 2
45 01010-51270 • BOLT 2
46 01602-21236 • WASHER,SPRING 4
47 195-63-13462 • TUBE,L.H. 1
195-63-13472 • TUBE,R.H. 1
48 07000-13035 • O-RING (KIT) 1
49 01010-51070 • BOLT 4
50 01602-21030 • WASHER,SPRING 4
51 195-63-13563 • TUBE,L.H. 1
195-63-13573 • TUBE,R.H. 1
52 07000-13045 • O-RING (KIT) 1
53 07000-13038 • O-RING (KIT) 2
54 01010-51270 • BOLT 3
55 01010-51260 • BOLT 2
56 01602-21236 • WASHER,SPRING 5
57 07282-03411 • CLAMP 1
58 01010-51020 • BOLT 2
59 01602-21030 • WASHER,SPRING 2
60 195-63-13890 • BRACKET,L.H. 1
195-63-13990 • BRACKET,R.H. 1
61 07283-23442 • CLIP 2
62 01599-01011 • NUT 4
63 01643-31032 • WASHER 4
64 01010-51025 • BOLT 2
65 01643-31032 • WASHER 2
66 195-63-12170 • PLATE 1
67 01010-51870 • BOLT 1
68 01602-21854 • WASHER,SPRING 1
195-63-05120 SERVICE KIT 2

Thanks for viewing our listings. Please click "ask a question", or call us if you have a parts need that you do not see listed here. We will do our best to loC.A.Te the parts you need, and make every effort to save you money.
