Excavator Seal Kits 31Y1-33570 31Y133570 Models R320LC-9 R330LC-9S Hyundai Bucket Cylinder Service Kit
Excavator Seal Kits 31Y1-33570 31Y133570 Models R320LC-9 R330LC-9S Hyundai Bucket Cylinder Service Kit
Excavator Seal Kits 31Y1-33570 31Y133570 Models R320LC-9 R330LC-9S Hyundai Bucket Cylinder Service Kit
Excavator Seal Kits 31Y1-33570 31Y133570 Models R320LC-9 R330LC-9S Hyundai Bucket Cylinder Service Kit
Excavator Seal Kits 31Y1-33570 31Y133570 Models R320LC-9 R330LC-9S Hyundai Bucket Cylinder Service Kit
Excavator Seal Kits 31Y1-33570 31Y133570 Models R320LC-9 R330LC-9S Hyundai Bucket Cylinder Service Kit
Excavator Seal Kits 31Y1-33570 31Y133570 Models R320LC-9 R330LC-9S Hyundai Bucket Cylinder Service Kit
Excavator Seal Kits 31Y1-33570 31Y133570 Models R320LC-9 R330LC-9S Hyundai Bucket Cylinder Service Kit
Specifications
Brand Name :
SUNCAR
Model Number :
31Y1-33570 HYUNDAI R320LC-9, R330LC-9S, R330LC-9SH
CertifiC.A.Tion :
ISO9001
Place of Origin :
CHINA(MAINLAND)
MOQ :
Trial order acceptable
Price :
Negotiation
Payment Terms :
Western Union, L/C, T/T, , D/A, D/P
Supply Ability :
500 Piece per Week
Delivery Time :
3-5 days after payment received(public holiday excluded)
Packaging Details :
PP bag inside, carton box outside
Product name :
Bucket Cylinder Service kit
Sample :
Available
Material :
PU, Rubber, PTFE, NBR, HNBR, ACM, VMQ
Part No. :
31Y1-33570, 31Y133570
Warranty :
Unavailable
Shipping Mode :
By air, by sea, by express(Fedex, UPS, DHL, TNT, etc.)
Description

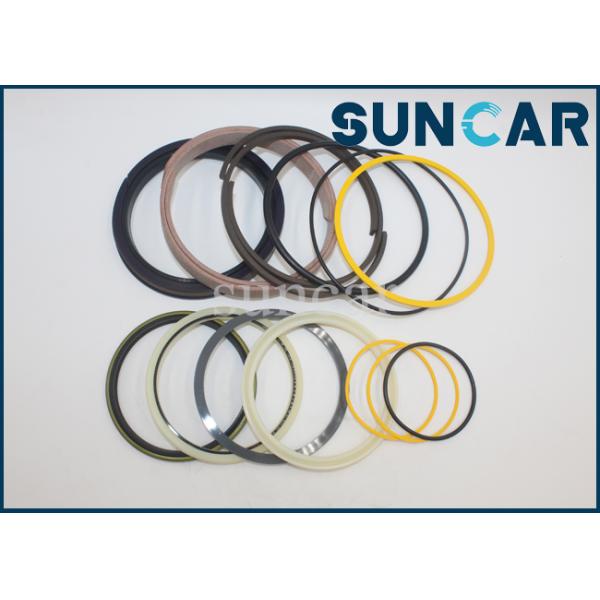

Excavator Seal Kits 31Y1-33570 31Y133570 Models R320LC-9 R330LC-9S Hyundai Bucket Cylinder Service Kit

Product Name Bucket Cylinder Service kit
Part Number 31Y1-33570, 31Y133570
Model 9-SERIES CRAWLER EXCAVATOR R320LC-9, R330LC-9S, R330LC-9SH Hyundai
Material PU, Rubber, PTFE, NBR, HNBR, ACM, VMQ
Place of Origin China(Mainland)
Brand name SUNCAR
Packing PP bag inside, carton box outside
Shipping Mode By air, by sea, by express(FedEx, UPS, DHL, TNT, etc.)
Payment Terms Western Union, Paypal, T/T, Transfer
CertifiC.A.Tion ISO9001
Warranty Unavailable
Customized OEM & ODM are welcomed
C.A.Tegory Group Hydraulic cylinder seal kit, excavator service kits
Condition New, genuine new
Sample Available
Applicable Industries Building material shops, machinery repair shops, retail, construction work...
Feature High sealing performance/ wear resistance
AppliC.A.Tion Bucket

Some Policies Regarding Product Ordering:

(1) Payment Policy:

  • We accept PayPal, TT, Western Union.

(2) Shipping Policy:

  • Usually ships within 3 business days of receiving the order.

(3) Refund policy:

  • We allow product replacement, and returned items must be in brand new condition, unused, including original parts and labels. Shipping or any other related charges will be paid by the buyer. We do not accept returns if the item is installed or damaged for some reason.

(4) Responsibility:

  • We are only responsible for the parts we sell. If there is any problem with the parts, we can accept returns, refunds or replacements, please understand that we do not compensate you for labor, trailers, repairs, rental costs or any other related costs.
  • Contact us:
  • We have more than 10 years experience in excavator parts, in addition to the items listed on the website, we also have a variety of excavator spare parts to choose from, if you have any questions or comments, feel free to contact us, we Will get back to you within 24 hours, thanks!
  • Please make sure you order the correct parts for your excavator, if you have any questions about the parts you ordered, please provide us with the details, then we can verify the parts to avoid any wrong parts and returns.

Related Parts:

Excavator Seal Kits 31Y1-33570 31Y133570 Models R320LC-9 R330LC-9S Hyundai Bucket Cylinder Service Kit

Pos. Part No Qty Parts name
*. 31Q9-60110 [1] BUCKET CYLINDER ASSY
*. 31Q9-60111 [1] BUCKET CYLINDER ASSY
*-1. 31Y1-33430 [1] BUCKET CYLINDER SUB
*-1. 31Y1-33431 [1] BUCKET CYLINDER SUB
1 31Y1-33440 [1] TUBE ASSY
2 31Y1-33490 [1] ROD ASSY
2 31Y1-33491 [1] ROD ASSY
3 31Y1-33520 [1] GLAND
4 S732-100040 [1] BUSHING-DD2
5 Y191-107000 [1] RING-SNAP
K6. Y220-100013 [1] SEAL-ROD
K7. Y180-100020 [1] RING-BACK UP
K8. Y240-100012 [1] RING-BUFFER
K9. Y110-100011 [1] WIPER-DUST
10 Y190-114000 [1] RING-SNAP
K11. S632-140004 [1] O-RING
K11. S631-130004 [1] O-RING
K12. 31YC-BP130 [1] RING-BACK UP
13 31YC-26015 [1] RING-CUSHION
14 31Y1-28770 [1] PISTON
14 31Y1-28772 [1] PISTON
K15. Y420-140000 [1] SEAL-PISTON
K16. Y310-140103 [2] RING-WEAR
K17. Y440-140202 [2] RING-DUST
K17. Y440-140200 [2] RING-DUST
K18. S632-075004 [1] O-RING
K18. S632-080004 [1] O-RING
K19. S642-075003 [2] RING-BACK UP
K19. S642-080003 [2] RING-BACK UP
20 31YC-68050 [1] NUT-LOCK
20 31YC-68090 [1] NUT-LOCK
21 S114-100164 [1] SCREW-SET
K22. S631-130004 [1] O-RING
K22. S632-140004 [1] O-RING
23 S109-180854 [14] BOLT-SOCKET
24 31YC-15090 [1] BUSHING
24 61Q6-05590 [1] BUSH-PIN
25 31YC-15090 [1] BUSHING
25 61QH-73240 [1] BUSHING
K26. Y020-090100 [4] SEAL-DUST,DLI,KPU
27 31Y1-33530 [2] BAND ASSY
27 31Y1-33531 [2] BAND ASSY
27-1. 31Y1-33540 [1] BAND SUB ASSY
27-2. 31YC-31170 [1] BAND
27-3. S011-100352 [2] BOLT-HEX
27-4. S411-100002 [2] WASHER-SPRINIG
27-5. S070-053442 [1] U-BOLT
27-6. S205-101002 [2] NUT-HEX
27-7. S411-100002 [2] WASHER-SPRINIG
28 31Y1-33550 [1] PIPE ASSY-R
28 31Y1-33551 [1] PIPE ASSY-R
29 31Y1-33560 [1] PIPE ASSY-B
29 31Y1-33561 [1] PIPE ASSY-B
K30. Y171-024004 [2] O-RING
31 S107-120556 [8] BOLT-SOCKET
32 31YC-5A020 [2] COVER-DUST
33 S011-100152 [8] BOLT-HEX
K. 31Y1-33570 [1] SEAL KIT
K. 31Y1-33571 [1] SEAL KIT

Hydraulic Seal Installation Requirements:

1. The sealing surface of hydraulic seal gasket and flange should be clean.

2. The outer diameter of the hydraulic seal gasket should be smaller than the flange sealing surface, and the inner diameter should be slightly larger than the pipe inner diameter.

3. The pretension of the gasket shall not exceed the design requirements.

4. Torque wrenches are best used when packing asbestos gaskets.

5. When installing the gasket, tighten the nuts one by one.

6. In case of leakage, step-down treatment must be carried out after installation, and the sealing gasket must be replaced or adjusted.

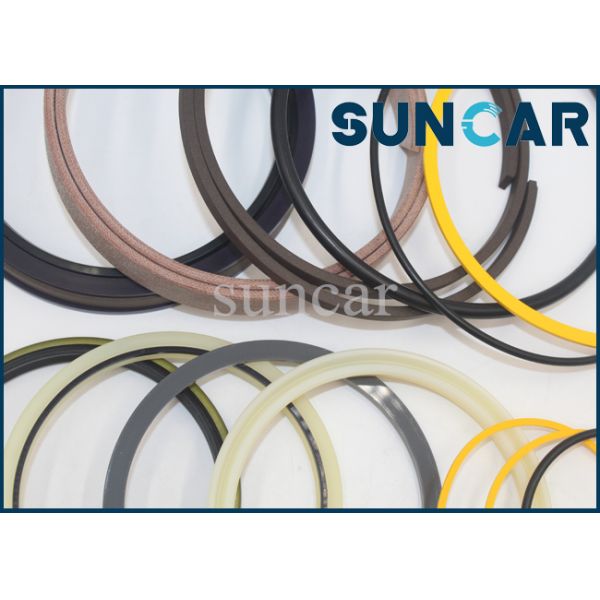

Product Show:

Excavator Seal Kits 31Y1-33570 31Y133570 Models R320LC-9 R330LC-9S Hyundai Bucket Cylinder Service Kit

Excavator Seal Kits 31Y1-33570 31Y133570 Models R320LC-9 R330LC-9S Hyundai Bucket Cylinder Service Kit
