Arm Sealing Kit 31Y1-32450 31Y132450 For Hyundai R250LC-9 R260LC-9S Hydraulic Cylinder Seal Repair Kit
Arm Sealing Kit 31Y1-32450 31Y132450 For Hyundai R250LC-9 R260LC-9S Hydraulic Cylinder Seal Repair Kit
Arm Sealing Kit 31Y1-32450 31Y132450 For Hyundai R250LC-9 R260LC-9S Hydraulic Cylinder Seal Repair Kit
Arm Sealing Kit 31Y1-32450 31Y132450 For Hyundai R250LC-9 R260LC-9S Hydraulic Cylinder Seal Repair Kit
Arm Sealing Kit 31Y1-32450 31Y132450 For Hyundai R250LC-9 R260LC-9S Hydraulic Cylinder Seal Repair Kit
Arm Sealing Kit 31Y1-32450 31Y132450 For Hyundai R250LC-9 R260LC-9S Hydraulic Cylinder Seal Repair Kit
Arm Sealing Kit 31Y1-32450 31Y132450 For Hyundai R250LC-9 R260LC-9S Hydraulic Cylinder Seal Repair Kit
Arm Sealing Kit 31Y1-32450 31Y132450 For Hyundai R250LC-9 R260LC-9S Hydraulic Cylinder Seal Repair Kit
Specifications
Brand Name :
SUNCAR
Model Number :
31Y1-32450 HYUNDAI R250LC-9, R250LC-9A, R260LC-9S, R260LC-9A, HX260L
CertifiC.A.Tion :
ISO9001
Place of Origin :
CHINA(MAINLAND)
MOQ :
Trial order acceptable
Price :
Negotiation
Payment Terms :
Western Union, L/C, T/T, , D/A, D/P
Supply Ability :
500 Piece per Week
Delivery Time :
3-5 days after payment received(public holiday excluded)
Packaging Details :
PP bag inside, carton box outside
Product name :
Arm Cylinder Seal Repair Kit
Material :
PU, Rubber, PTFE, NBR, HNBR, ACM, VMQ
Part No. :
31Y1-32450, 31Y132450
Sample :
Available
Shipping Mode :
By air, by sea, by express(Fedex, UPS, DHL, TNT, etc.)
Warranty :
Unavailable
Description

Arm Sealing Kit 31Y1-32450 31Y132450 For Hyundai R250LC-9 R260LC-9S Hydraulic Cylinder Seal Repair Kit

Product Name Arm Cylinder Seal Repair Kit
Part Number 31Y1-32450, 31Y132450
Model

9-SERIES CRAWLER EXCAVATOR R250LC-9, R250LC-9A, R260LC-9S, R260LC-9A;

F-SERIES CRAWLER EXCAVATOR HX260L Hyundai
Material PU, Rubber, PTFE, NBR, HNBR, ACM, VMQ
Place of Origin China(Mainland)
Brand name SUNCAR
Packing PP bag inside, carton box outside
Shipping Mode By air, by sea, by express(FedEx, UPS, DHL, TNT, etc.)
Payment Terms Western Union, Paypal, T/T, Transfer
CertifiC.A.Tion ISO9001
Warranty Unavailable
Customized OEM & ODM are welcomed
C.A.Tegory Group Hydraulic cylinder seal kit, excavator service kits
Condition New, genuine new
Sample Available
Applicable Industries

Building material shops, machinery repair shops, retail,

construction work...
Feature High sealing performance/ wear resistance
AppliC.A.Tion Arm

Related Parts:

Arm Sealing Kit 31Y1-32450 31Y132450 For Hyundai R250LC-9 R260LC-9S Hydraulic Cylinder Seal Repair Kit

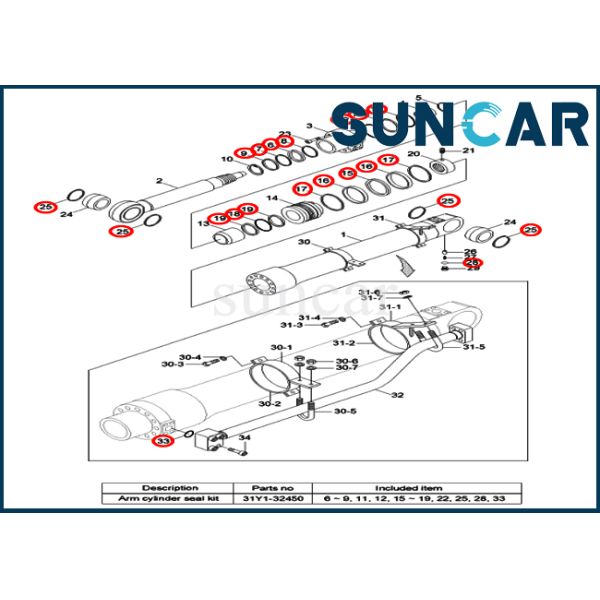

Pos. Part No Qty Parts name
*. 31Q7-50130 [1] ARM CYLINDER ASSY
*-1. 31Y1-32191 [1] ARM CYL SUB ASSY
1 31Y1-32200 [1] TUBE ASSY
2 31Y1-32260 [1] ROD ASSY
3 31Y1-32321 [1] GLAND
4 S732-105040 [1] BUSHING-DD2
5 Y191-112000 [1] RING-SNAP
K6. Y220-105013 [1] SEAL-ROD
K7. Y180-105120 [1] RING-BACK UP
K8. Y240-105012 [1] RING-BUFFER
K9. Y110-105011 [1] WIPER-DUST
10 Y190-121000 [1] RING-SNAP
K11. S631-135004 [1] O-RING
K12. 31YC-CP135 [1] RING-BACK UP
13 31YC-28090 [1] RING-CUSHION
14 31Y1-32360 [1] PISTON
K15. Y420-145000 [1] SEAL-PISTON
K16. Y310-145003 [2] RING-WEAR
K17. Y440-145102 [2] RING-DUST
K18. S632-080004 [1] O-RING
K19. S642-080003 [2] RING-BACK UP
20 31YC-68090 [1] NUT-LOCK
21 S114-100164 [1] SCREW-SET
K22. S632-145004 [1] O-RING
23 S109-200904 [12] BOLT-SOCKET
24 61Q6-97420 [2] BUSHING-PIN
K25. Y020-090100 [4] SEAL-DUST,DLI,KPU
26 31YC-2A070 [1] VALVE-CHECK
27 31YC-99071 [1] SPRING-COIL
K28. S631-014004 [1] O-RING
29 P220-110103 [1] PLUG-HEX
30 31Y1-32380 [1] BAND ASSY-R
30-1. 31Y1-32390 [1] BAND SUB ASSY
30-2. 31YC-31460 [1] BAND
30-3. S015-120452 [2] BOLT-HEX
30-4. S411-120002 [2] WASHER-SPRING
30-5. S070-053442 [1] U-BOLT
30-6. S205-101002 [2] NUT-HEX
30-7. S411-100002 [2] WASHER-SPRING
31 31Y1-32400 [1] BAND ASSY-B
31-1. 31Y1-32410 [1] BAND SUB ASSY
31-2. 31Y1-32420 [1] BAND SUB ASSY
31-3. S015-120452 [2] BOLT-HEX
31-4. S411-120002 [2] WASHER-SPRING
31-5. S070-053442 [1] U-BOLT
31-6. S205-101002 [2] NUT-HEX
31-7. S411-100002 [2] WASHER-SPRING
32 31Y1-32430 [1] PIPE ASSY-R
K33. Y171-024004 [1] O-RING
34 S107-120554 [4] BOLT-SOCKET
K. 31Y1-32450 [1] SEAL KIT

Order Process:

1. Getting your inquiry (Including: machine model, part name, order quantity, data of items, delivery term)

2. Quoting our competitive price for you

3. Place an order after approving the quotation or products

4. We will send Proforma Invoice or sales confirmation

5. You prepay by T/T or L/C or Western Union through bank

6. We will starting to produce after we get your kind payment

7. Packing

8. Shipping the goods to your(our)forwarder

9. Sending all doc for your custom clearance

10. Time to reorder

Product Show:

Arm Sealing Kit 31Y1-32450 31Y132450 For Hyundai R250LC-9 R260LC-9S Hydraulic Cylinder Seal Repair Kit

Arm Sealing Kit 31Y1-32450 31Y132450 For Hyundai R250LC-9 R260LC-9S Hydraulic Cylinder Seal Repair Kit
