31Y1-32670 31Y132670 Boom Seal Kit R250LC-9 R260LC-9S HX260L Hyundai Cylinder Service Kit Parts
31Y1-32670 31Y132670 Boom Seal Kit R250LC-9 R260LC-9S HX260L Hyundai Cylinder Service Kit Parts
31Y1-32670 31Y132670 Boom Seal Kit R250LC-9 R260LC-9S HX260L Hyundai Cylinder Service Kit Parts
31Y1-32670 31Y132670 Boom Seal Kit R250LC-9 R260LC-9S HX260L Hyundai Cylinder Service Kit Parts
31Y1-32670 31Y132670 Boom Seal Kit R250LC-9 R260LC-9S HX260L Hyundai Cylinder Service Kit Parts
31Y1-32670 31Y132670 Boom Seal Kit R250LC-9 R260LC-9S HX260L Hyundai Cylinder Service Kit Parts
31Y1-32670 31Y132670 Boom Seal Kit R250LC-9 R260LC-9S HX260L Hyundai Cylinder Service Kit Parts
31Y1-32670 31Y132670 Boom Seal Kit R250LC-9 R260LC-9S HX260L Hyundai Cylinder Service Kit Parts
Specifications
Brand Name :
SUNCAR
Model Number :
31Y1-32670 HYUNDAI R250LC-9, R250LC-9A, R260LC-9S, R260LC-9S(BRAZIL), HX260L
CertifiC.A.Tion :
ISO9001
Place of Origin :
CHINA(MAINLAND)
MOQ :
Trial order acceptable
Price :
Negotiation
Payment Terms :
Western Union, L/C, T/T, , D/A, D/P
Supply Ability :
500 Piece per Week
Delivery Time :
3-5 days after payment received(public holiday excluded)
Packaging Details :
PP bag inside, carton box outside
Product name :
Boom Cylinder Service Kit
Material :
PU, Rubber, PTFE, NBR, HNBR, ACM, VMQ
Part No. :
31Y1-32670, 31Y132670
Sample :
Available
Shipping Mode :
By air, by sea, by express(Fedex, UPS, DHL, TNT, etc.)
Warranty :
Unavailable
Description

31Y1-32670 31Y132670 Boom Seal Kit R250LC-9 R260LC-9S HX260L Hyundai Cylinder Service Kit Parts

Product Name Boom Cylinder Service Kit
Part Number 31Y1-32670, 31Y132670
Model

9-SERIES CRAWLER EXCAVATOR R250LC-9,

R250LC-9A, R260LC-9S, R260LC-9S(BRAZIL)

F-SERIES CRAWLER EXCAVATOR HX260L Hyundai
Material PU, Rubber, PTFE, NBR, HNBR, ACM, VMQ
Place of Origin China(Mainland)
Brand name SUNCAR
Packing PP bag inside, carton box outside
Shipping Mode By air, by sea, by express(FedEx, UPS, DHL, TNT, etc.)
Payment Terms Western Union, Paypal, T/T, Transfer
CertifiC.A.Tion ISO9001
Warranty Unavailable
Customized OEM & ODM are welcomed
C.A.Tegory Group Hydraulic cylinder seal kit, excavator service kits
Condition New, genuine new
Sample Available
Applicable Industries

Building material shops, machinery repair shops, retail,

construction work...
Feature High sealing performance/ wear resistance
AppliC.A.Tion Boom

Related Parts:

31Y1-32670 31Y132670 Boom Seal Kit R250LC-9 R260LC-9S HX260L Hyundai Cylinder Service Kit Parts

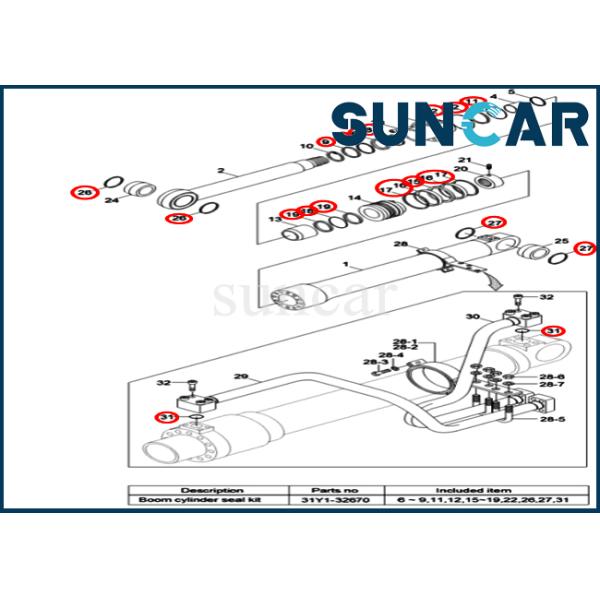

Pos. Part No Qty Parts name
*. 31Q7-50110 [1] BOOM CYLINDER ASSY-LH
*. 31Q7-50120 [1] BOOM CYLINDER ASSY-RH
*-1. 31Y1-32460 [1] BOOM CYL SUB ASSY
1 31Y1-32470 [1] TUBE ASSY
2 31Y1-32540 [1] ROD ASSY
3 31Y1-32580 [1] GLAND
4 S732-095030 [1] BUSHING-DD2
5 Y191-102000 [1] RING-SNAP
K6. Y220-095013 [1] SEAL-ROD
K7. Y180-095020 [1] RING-BACK UP
K8. Y240-095012 [1] RING-BUFFER
K9. Y110-095011 [1] WIPER-DUST
10 Y190-109000 [1] RING-SNAP
K11. S631-125004 [1] O-RING
K12. 31YC-BP125 [1] RING-BACK UP
13 31YC-26080 [1] RING-CUSHION
14 31Y1-30270 [1] PISTON
K15. Y420-135000 [1] SEAL-PISTON
K16. Y310-135303 [2] RING-WEAR
K17. Y440-135002 [2] RING-DUST
K18. S632-070004 [1] O-RING
K19. S642-070003 [2] RING-BACK UP
20 31YC-68040 [1] NUT-LOCK
21 S114-100164 [1] SCREW-SET
K22. S632-135004 [1] O-RING
23 S109-180854 [12] BOLT-SOCKET
24 61Q6-97610 [1] BUSHING-PIN
25 61Q6-97410 [1] BUSHING-PIN
K26. Y020-100100 [2] SEAL-DUST,DLI,KPU
K27. Y020-090100 [2] SEAL-DUST,DLI,KPU
28 31Y1-32590 [1] BAND ASSY
28-1. 31Y1-32600 [1] BAND SUB ASSY
28-2. 31YC-32330 [1] BAND
28-3. S011-100352 [4] BOLT-HEX
28-4. S411-100002 [4] WASHER-SPRING
28-5. S070-052738 [2] U-BOLT
28-6. S205-101002 [4] NUT-HEX
28-7. S411-100002 [4] WASHER-SPRING
29 31Y1-32610 [1] PIPE ASSY-R,LH
29 31Y1-32620 [1] PIPE ASSY-R,RH
30 31Y1-32630 [1] PIPE ASSY-B,LH
30 31Y1-32640 [1] PIPE ASSY-B,RH
K31. Y171-024004 [2] O-RING
32 S107-120554 [8] BOLT-SOCKET
K. 31Y1-32670 [1] SEAL KIT

Storage Precautions:

  • When storing seals, please pay attention to the following items:
  • Do not open the seal package when it is not necessary, otherwise dust will stick to the seal or scratch the seal.
  • Store in a cool place, not in direct sunlight. Ultraviolet rays and water vapor will accelerate the deterioration and dimensional changes of rubber and plastics.
  • When storing unpackaged products, be careful not to stick or pack impurities and store them in their original state. Nylon should be sealed tightly to prevent dimensional changes.
  • Do not place the seals close to heat sources, such as boilers, furnaces, etc. The heat will accelerate the aging of the seals.
  • Do not place the seal near the motor or where ozone is generated.
  • Do not hang the seal with needles, iron wire or rope, otherwise it will deform the seal and damage the lip.
  • The surface of the seal sometimes has color changes or white powder (blooming phenomenon), which will not affect the performance of the seal.
  • The RAREFLON ring of the combined seal is easily scratched if it drops or is impacted by the outside, so it must be handled with special care.

Product Show:

31Y1-32670 31Y132670 Boom Seal Kit R250LC-9 R260LC-9S HX260L Hyundai Cylinder Service Kit Parts

31Y1-32670 31Y132670 Boom Seal Kit R250LC-9 R260LC-9S HX260L Hyundai Cylinder Service Kit Parts
