YN30V00004F1 Travel Control Valve Kit/ Pilot Valve Seal Kit For Kobelco Excavator SK100L, SK200, SK120, SK100, SK120LC
YN30V00004F1 Travel Control Valve Kit/ Pilot Valve Seal Kit For Kobelco Excavator SK100L, SK200, SK120, SK100, SK120LC
YN30V00004F1 Travel Control Valve Kit/ Pilot Valve Seal Kit For Kobelco Excavator SK100L, SK200, SK120, SK100, SK120LC
YN30V00004F1 Travel Control Valve Kit/ Pilot Valve Seal Kit For Kobelco Excavator SK100L, SK200, SK120, SK100, SK120LC
YN30V00004F1 Travel Control Valve Kit/ Pilot Valve Seal Kit For Kobelco Excavator SK100L, SK200, SK120, SK100, SK120LC
YN30V00004F1 Travel Control Valve Kit/ Pilot Valve Seal Kit For Kobelco Excavator SK100L, SK200, SK120, SK100, SK120LC
YN30V00004F1 Travel Control Valve Kit/ Pilot Valve Seal Kit For Kobelco Excavator SK100L, SK200, SK120, SK100, SK120LC
YN30V00004F1 Travel Control Valve Kit/ Pilot Valve Seal Kit For Kobelco Excavator SK100L, SK200, SK120, SK100, SK120LC
YN30V00004F1 Travel Control Valve Kit/ Pilot Valve Seal Kit For Kobelco Excavator SK100L, SK200, SK120, SK100, SK120LC
YN30V00004F1 Travel Control Valve Kit/ Pilot Valve Seal Kit For Kobelco Excavator SK100L, SK200, SK120, SK100, SK120LC
Specifications
Brand Name :
Kobelco Track Adjuster Seal Kit
Model Number :
YN30V00004F1
Certification :
ISO9001
Place of Origin :
China Mainland
MOQ :
Acceptable Trial Order
Price :
Negotiation
Payment Terms :
Western Union, L/C, T/T, , D/A, D/P, Paypal
Supply Ability :
5000 SET/WEEK
Delivery Time :
3-5 Days After Payment Received(Public Holiday Excluded)
Packaging Details :
PP Bag & Carton Box
CertifiC.A.Tion :
ISO9001
Description

YN30V00004F1 Travel Control Valve Kit/ Pilot Valve Seal Kit For Kobelco Excavator SK100L, SK200, SK120, SK100, SK120LC, SK200LC

Product Name

YN30V00004F1 Travel Control Valve Kit/ Pilot Valve Seal Kit For Kobelco Excavator SK100L, SK200, SK120, SK100, SK120LC, SK200LC
Part No. YN30V00004F1
Material PU , Rubber , PTFE , NBR , HNBR , ACM , VMQ
Feature Resistance to high pressure, oil, weather, abrasion, solvent
Hardness 70-90 Shore A
Color Black, White or other
Size Standard Size
MOQ We Accept Trial Order
Packing PP BAG & CARTON BOX( According To Your Requirements)
Delivery Time 3-5 Days After Payment Received(Public Holiday Excluded)
Payment Western Union, L/C, T/T, etc.
Port HUAGNPU,China (Mainland)
Express Fedex,TNT,UPS,DHL
Customized OEM & ODM are welcomed

AppliC.A.Tion

 Kobelco Excavator
Condition New
Suitable (SK100) - EXCAVATOR BTW YW06501 - YW07744 (1/94-12/95) (SK100L) - EXCAVATOR BTW LX10101 - LX10160 (1/94-12/95) (SK120) - MARK V EXCAVATOR BTW LP11001 - LP13332 (9/02-12/03) (SK120LC) - MARK V EXCAVATOR BTW YP02301 - YP02376 (1/94-12/95) (SK200) - MARK V EXCAVATOR BTW YN018001 - YN022848 (ANZ) (1/98-12/03) (SK200) - MARK V EXCAVATOR BTW YN018001 - YN022848 (NA) (1/98-12/03) (SK200LC) - MARK V EXCAVATOR BTW YQ002301 - YQ002654 (ANZ) (1/95-12/95) (SK200LC) - MARK V EXCAVATOR BTW YQ002301 - YQ002654 (NA) (1/95-12/95)

The Following Seal Kits We Also Can Supply:

* Hydraulic Pump Seal Kit

* Control Valve Seal Kit

* O Ring Kit Box

* Gear Pump Seal Kit

* Travel Motor Seal Kit

* Swing Motor Seal Kit

* Pilot Valve Seal Kit/ PPC Seal

* Adjuster Seal Kit

* Center Joint Seal Kit

* Boom Cylinder Seal Kit

* Arm Cylinder Seal Kit

* Bucket Cylinder Seal Kit

* Breaker Hammer Seal Kit

Customer Service:

  • If you are interested in our products or have any questions, you can send us an email through the mail system or contact us on social media.
  • Normally, the email will be replied within 24 hours; except every Sunday and holiday. When we return to the office, we will reply as soon as possible
  • If you do not find the product you need, please send us an email with a picture, and we will be happy to help you.
  • Positive feedback is very important to us.


​Related Parts:

YN30V00004F1 Travel Control Valve Kit/ Pilot Valve Seal Kit For Kobelco Excavator SK100L, SK200, SK120, SK100, SK120LC

Pos. Part No Qty Parts name Comments
. . YN30V00004F1 [1] PILOT VALVE KOB
1 243BU1142S13 [4] SHIM (0.1) 　
2 2436U1487S7 [4] SHIM KOB 0.2
3 2436U2755S4 [2] SEAT KOB
4 2436U2755S6 [4] SPOOL KOB
5 2436U1354S5 [4] SLEEVE KOB
6 2436U1354S6 [2] COVER KOB
7 NSS [4] NOT SOLD SEPARAT CON ROD,PUSH
8 2436U1354S9 [2] PIN KOB
9 2436U1354S10 [2] BOOT KOB
10 2436U1354S11 [4] COLLAR CLAMP KOB
11 2436U1354S27 [4] SPRING KOB
12 YN30V00004S012 [2] PLATE 　
13 NSS [1] NOT SOLD SEPARAT CON BODY
14 YN30V00004S014 [1] NAME PLATE 　
15 2436U1354S4 [4] SPRING KOB
16 2436U1354S8 [2] CAM KOB
17 2436U1354S25 [4] SHIM KOB 0.2
19 2436U2412S26 [6] PLUG KOB 1/4"PF
20 ZS23C12020 [2] CAPSCREW,Hex Socket Head, M12 x 20mm KOB SCREW M12x1.75x20mm
21 2436U1354S15 [4] BOLT KOB
22 YN30V00004S022 [4] CAPSCREW 　
23 2436U1354S16 [4] WASHER KOB
24 2436U1354S17 [8] WASHER KOB
25 2436U1354S19 [4] PIN KOB SPRING
26 ZP16K02516 [4] COTTER PIN KOB PIN Superseded by part number: ZP16K02520
27 NSS [4] NOT SOLD SEPARAT CON
28 NSS [6] NOT SOLD SEPARAT CON BALL
29 ZD11P01000 [4] O-RING KOB ID 9.8 ± 0.17 x OD 13.6mm
30 ZD12P01100 [6] O-RING KOB ID 10.8mm x OD 13.2mm
31 ZD12P02400 [4] O-RING KOB ID 23.70 ± 0.24 x OD 30mm
. . 2436U1354S26 [4] PISTON KOB REPAIR KIT,CONSIST OF REF 7,28
. . YN30V00004S034 [1] REPAIR KITCONSIST OFREF 13,27 　

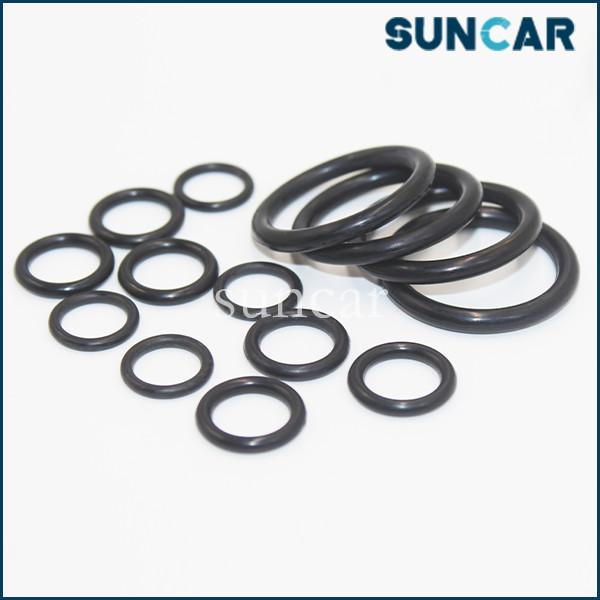

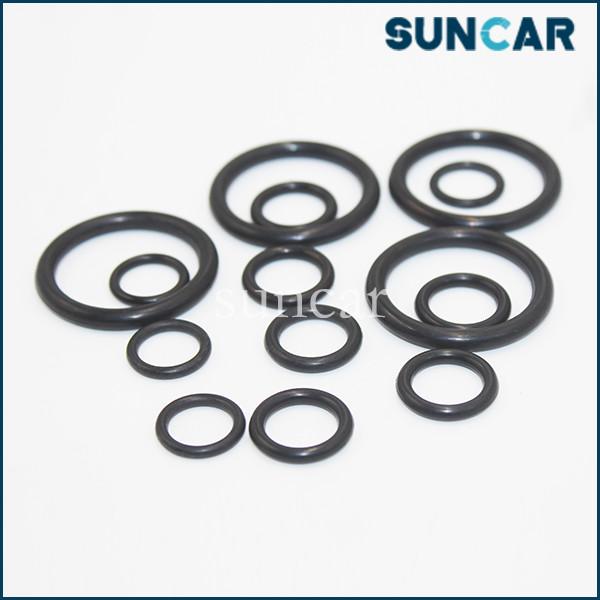

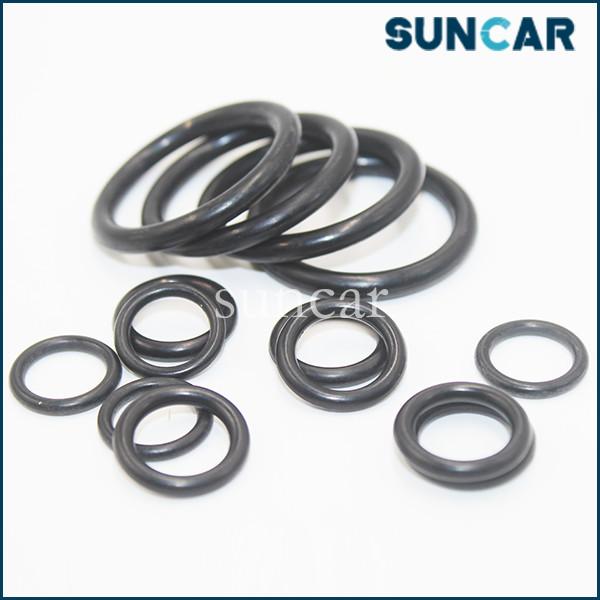

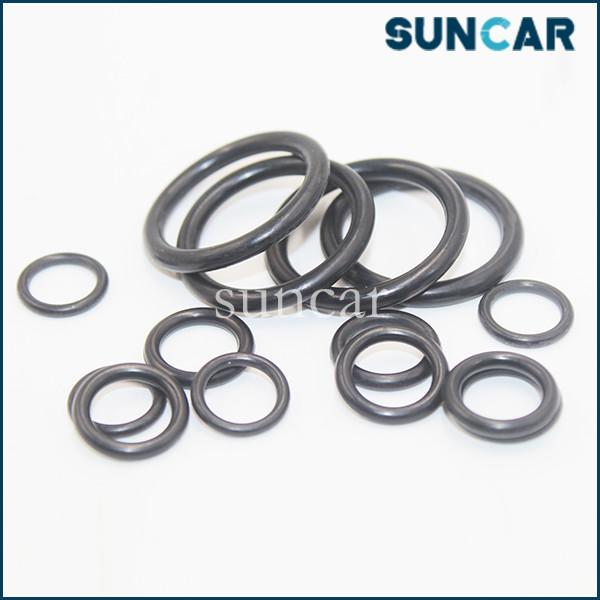

PRODUCT SHOW:

YN30V00004F1 Travel Control Valve Kit/ Pilot Valve Seal Kit For Kobelco Excavator SK100L, SK200, SK120, SK100, SK120LC
YN30V00004F1 Travel Control Valve Kit/ Pilot Valve Seal Kit For Kobelco Excavator SK100L, SK200, SK120, SK100, SK120LC
YN30V00004F1 Travel Control Valve Kit/ Pilot Valve Seal Kit For Kobelco Excavator SK100L, SK200, SK120, SK100, SK120LC
YN30V00004F1 Travel Control Valve Kit/ Pilot Valve Seal Kit For Kobelco Excavator SK100L, SK200, SK120, SK100, SK120LC

FAQ:
1.If I only know the excavator model, but can not offer parts No., what should I do ?
Q: If possible, you can send us pictures of old products, nameplate or the size for reference.

2.How can I pay the order?
Q: We can receive payment through T/T, Western Union, Paypal(for small amount)

3.When will get the items after I place order?
Q: Once your payment is confirmed, we will arrange the goods within 24 hours; if not in stock , we will inform you before placing the order.

4.How can I do if there is something wrong with the items?
Q: First of all , I have confidence in the quality of our products ,if you really found something wrong ,pls provide pictures for us and we will check. After it is confirmed, pls return to us , we will offer the correct item.

5.What is your main products ?
Q: We are specialized in the excavator spare parts, such as Hydraulic cylinder seal kit, Center joint seal kit, Transmission Seal Kit Control, valve seal kit, breaker hammer seal kit, Hydraulic pump seal kit, Travel motor seal kit , Main pump seal kit, Swing motor seal kit, Gear pump seal repair kit, Adjuster seal kit, Pilot valve seal kit, O-ring kit box Hydraulic sealing kit, Pump gasket kit, Regulator valve seal kit. If you need other excavator parts, we also can supply as your requirements.
