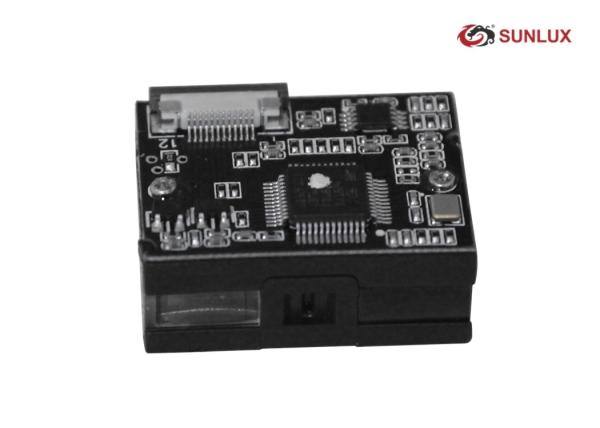

3.3V Barcode Scanner Module Red Aiming Light Black PCB Quick Reading CMOS 1D Barcode Scan Engine
3.3V Barcode Scanner Module Red Aiming Light Black PCB Quick Reading CMOS 1D Barcode Scan Engine
3.3V Barcode Scanner Module Red Aiming Light Black PCB Quick Reading CMOS 1D Barcode Scan Engine
3.3V Barcode Scanner Module Red Aiming Light Black PCB Quick Reading CMOS 1D Barcode Scan Engine
3.3V Barcode Scanner Module Red Aiming Light Black PCB Quick Reading CMOS 1D Barcode Scan Engine
3.3V Barcode Scanner Module Red Aiming Light Black PCB Quick Reading CMOS 1D Barcode Scan Engine
Specifications
Brand Name :
SUNLUX
Model Number :
XL-1125
Certification :
CE, FCC, RHOS
Place of Origin :
China
MOQ :
50 Pieces
Price :
Negotiation
Payment Terms :
T/T
Supply Ability :
Negotiation
Delivery Time :
5-8 work days
Packaging Details :
Bubble pack for 1 piece, 50 pieces per carton.
Scan Mode :
CCD
Scan Pattern :
2500 Pixel image
Size :
Lx W x H: 28×22×13(mm)
Color :
Black
Weight :
3.5g±1g
Voltage :
3.3V
Description
Red Aiming Light Black PCB Quick Reading CMOS 1D Barcode Scan Engine

Product Features

1. Multi interface support: USB, USB-VCOM, RS232.
2. Actively identify the 1D barcode on paper&screen.
3. Secondary development is available.
4. 32 bit ARM supports accurate decoding.
5. 2 year warranty for free repair and maintanance.
6. Small smart size design to be embedded in varieties of equipments.
7. Support manual and continuous scanning.
8. Easy operation, plug and play, not need driver.
9. High resolution imager with fast reading speed.

Product Specifications

Light Source LED(622nm-628nm)
Scan Pattern 2500 Pixel image
Scan Mode CCD
ScanResolution 2500Pixel
Decode Rate Up to 300 times per second
Scan Precision ≥4mil
Scan Depth of Field 30-330mm (13milEAN13, PCS=90%)
Tilt 30°
Elevation Angle 65°
Deflection Angle 55°
Support Interface UART-TTL/USB-HID/USB-VCP
Print Contrast ≥10%
Size Lx W x H: 28×22×13(mm)
Weight 3.5g±1g
Positioning Hole φ1.4mm *2mm
Voltage 3.3V
Scan Mode Manual & Continuousscanning
Operating Current Max 120mA
Static Current 25mA
EMC CE & FCC DOC compliance
Operating Temperature -20°C to 60°C
Storage Temperature -40°C to 85°C
Humidity 5% to 95% relative humidity, non-condensing
Light Levels Daylight, 0-100,000Lux
Decoding Capability Industrial 2 of 5,Standard 25,Matrix 25,Code 11,Codabar,MSI/plessy,UK/plessy,Code39
(Standard 39 & FullASCII Code 39),Code 32,Code 93, Code128,UPCA,UPCE,EAN13,EAN8,UPC/EAN add-on 2/5, ISBN,ISSN, GS1(RSS) RSS-14,LIMITED, EXPENDED, Include GS1 STACK

RFQ

1. How about the quality?
Professional QC team and testing machine(Engine age testing,wire bending machine,switch life testing,shock resistance testing). All the products pass CE, FCC, ROSH, etc.

2. Why so competitive?
With over 13 years experience,we're listed barcode scanner manufacturer in China.We are the Top 3 barcode scanner brand in China.So large quantity will reduce our raw material cost directly.What's more,we have mature technology to save cost.


3. How to control the performance stable?
We take the flow line production in the whole processing.Every product will test 5 times at least before it delivery.


4. Is OEM or ODM available?
Yes.We are the factory directly.We can make it as your requirement.


5. Why customer choose us?
ISO9001 factory with strictly quality control system.Prompt after-sales service.


6. How about the factory?
We have more than 200 workers with advanced dust-free plant.We are approved the new high-tech enterprise by the government.Owned many technical and design patents in different professional fields.
