Specifications
Brand Name :
SUNLUX
Model Number :
XL-2000
Certification :
CE, FCC
Place of Origin :
China
MOQ :
20 Pieces
Price :
Negotiation
Payment Terms :
T/T
Supply Ability :
60000 PCS per month
Delivery Time :
5-8 work days
Packaging Details :
Bubble pack+Box for 1 piece, 20 pieces per carton.
Laser Line :
20
Weight :
283g
Resolution :
4 mil
Size :
105mm × 100mm × 156mm
Scan Speed :
1500 times/s
Voltage :
5V
Description

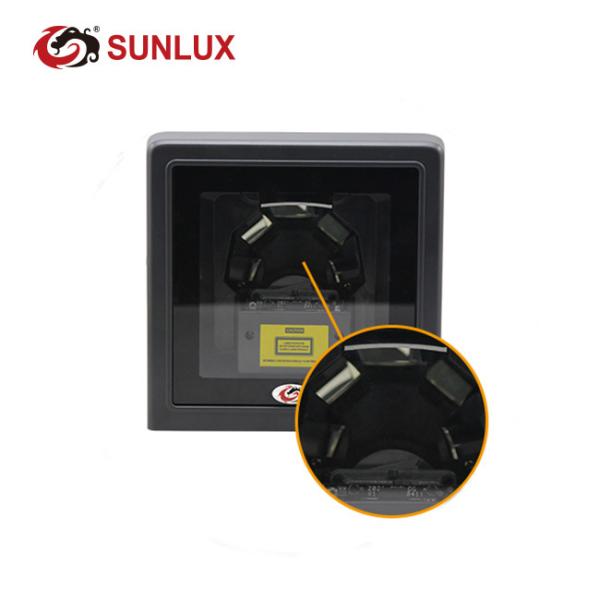

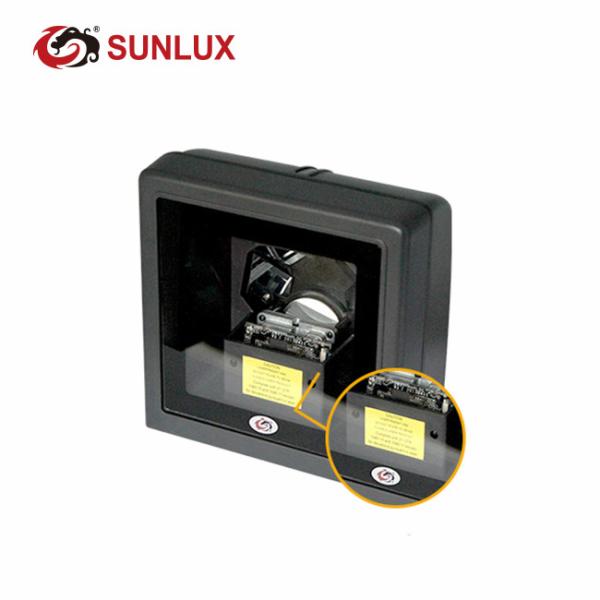

Auto Sensing Wide Angle Handsfree 1D Omni Table Barcode Scanner

Product Features

USB free driver, plug and play.
Automatic wake up function,Support multiple languages.
Scanning Speed: 1500 times/sec, fast scanning rate.
Multi-line rastering scan pattern ,more accurate and effecient.
Elegant, good stability, suitable for various commercial uses.
Adjustable scan head: enable to tilt scanner head for targeted scanning or larger products.
Reliable first-pass read all 1D standard barcodes in different angles.
Application fields:Supermarket, Retail, Warehouse,Logistic,Library, Medical etc

Online upgrade is available to meet your special needs.

LED and buzzer indicator can help you control the scanner and get right reading feedback easily.

Wide application in retail, medical, logistic, transportation, supermarket and warehouse.

High quality scanner ensured by 2 years warranty, 7x24 hours after-sale service.

No blind area, multi directional reading with 20 crossed laser scan lines.

The scanner is designed with anti-shock and anti-fall protection, can withstand 1.5m free drop to ground.

32-bit ARM decoding chip, good at reading small and damaged barcodes.

Related certificates; CE, FCC, RoHS, IP54.

Big decode angle,quickly scan various barcodes,suitable for supermarkets and retail stores.
Support multiple keyboard language:USA,Germany,French,Italy,Spanish,Turkey and so on.

1500 times per second high speed automatic catching 1D barcode printed on the paper.

Suit for USB, RS-232,USB-VCP interface port.
Powerful performance on decode capability, can read GS1 code.

IP54 standard outer case design with waterproof and dustproof, ensure more durable using life.

Plug and play, no need install driver, very simple operation in the daily use.

USB and RS232 cables are both available and interchange in one scanner.

Product Specifications

Model Number XL-2000
Light Source Visible Laser Diode 650nm
Scan Pattern 20 lines 5 fields of 4 parallel lines
Scan Speed 1500 scans/s & 75 scans/s
Print Contrast 30% @ UPC/EAN 100%
Minimum Resolution 4mil
Depth of Field 0-220mm for 0.33mm UPC/EAN100%
Host System Interfaces USB, RS232,USB-VCP
Visual Indicators Two color LED (blue & red)
Beeper Operation Programmable tone & volume
Cable Standard 2M straight
Size L × W × H:105mm × 100mm × 156mm
Weight 283g
Material ABS+PC
Laser Class Meet the Grade I National Criteria for Laser Safety
Voltage 5 Volts
Static Current 250mA
Operating Temperature -0°C to 45°C
Storage Temperature -20°C to 60°C
Humidity 5% to 85% relative humidity
Light Levels Daylight,5000LUX
Shock Designed to 1.5m drops
Decoding Capability UPC/EAN/JAN, UPC-A & UPC-E, EAN-8 & EAN-13, JAN-8 & JAN-13, ISBN/ISSN, Code 39 (with fullASCII),Codabar (NW7), Code 128 & EAN 128, Code 93, Interleaved 2 of 5 (ITF),Addendum 2 of 5, IATACode, MSI/Plessy,Code 32 (Italian Pharmacode), RSS 14, RSS Limited, RSS Expanded

Certificate

Auto Sensing Wide Angle 1D Omni Table Barcode Scanner 1500 Times/S Scan Speed

Application

Auto Sensing Wide Angle 1D Omni Table Barcode Scanner 1500 Times/S Scan Speed

Delivery

Auto Sensing Wide Angle 1D Omni Table Barcode Scanner 1500 Times/S Scan Speed

RFQ

1. How about the quality?
Professional QC team and testing machine(Engine age testing,wire bending machine,switch life testing,shock resistance testing). All the products pass CE, FCC, ROSH, etc.

2. Why so competitive?
With over 13 years experience,we're listed barcode scanner manufacturer in China.We are the Top 3 barcode scanner brand in China.So large quantity will reduce our raw material cost directly.What's more,we have mature technology to save cost.


3. How to control the performance stable?
We take the flow line production in the whole processing.Every product will test 5 times at least before it delivery.


4. Is OEM or ODM available?
Yes.We are the factory directly.We can make it as your requirement.


5. Why customer choose us?
ISO9001 factory with strictly quality control system.Prompt after-sales service.


6. How about the factory?
We have more than 200 workers with advanced dust-free plant.We are approved the new high-tech enterprise by the government.Owned many technical and design patents in different professional fields.
