Specifications
Brand Name :
SUNLUX
Model Number :
XL-518
Certification :
CE
Place of Origin :
Guangzhou, China
MOQ :
50 Pieces
Price :
Negotiation
Payment Terms :
T/T
Supply Ability :
60000 PCS per month
Delivery Time :
5-8 work days
Packaging Details :
Bubble pack+Box for 1 piece, 50 pieces per carton.
Scan Angle :
30°& 65°& 55°
IP :
65
Type :
Laser
Print Contrast :
≥10%
Scan Precision :
3mil
Certificate :
CE & FCC
Description

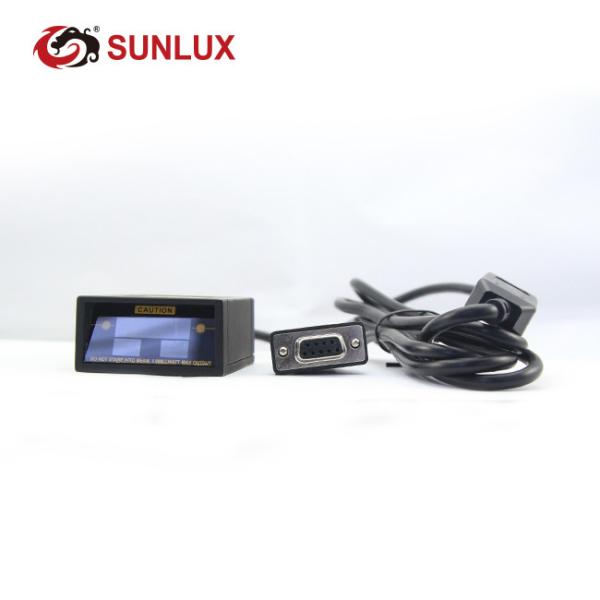

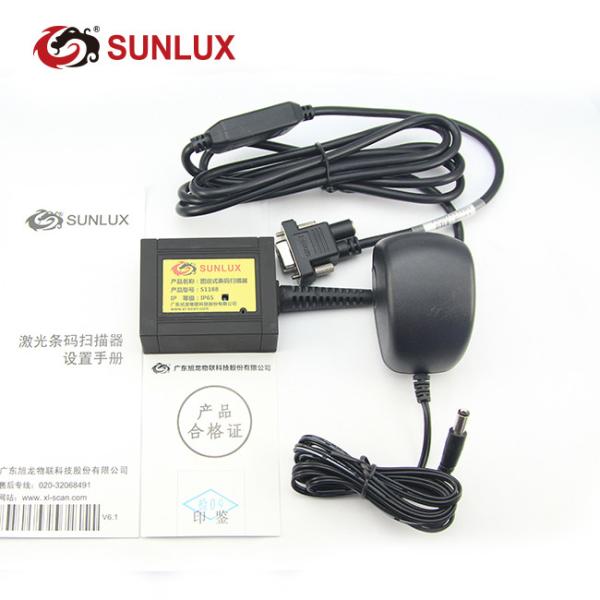

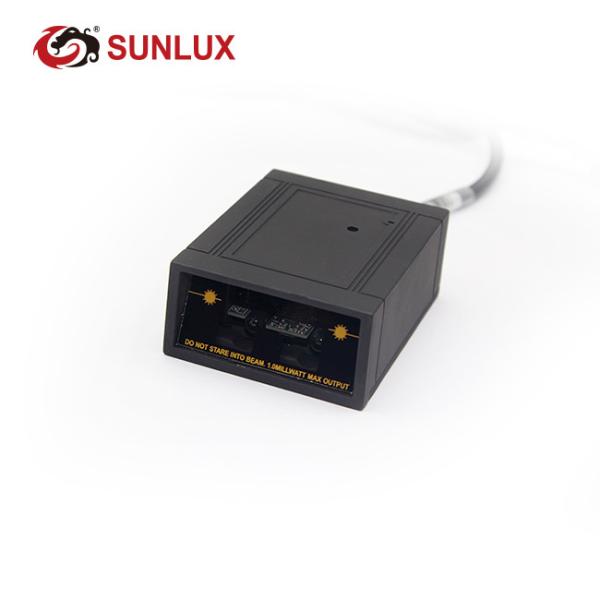

Black Durable Industrial 1D Laser Barcode Scanner Kiosk Module for OEM

Product Features

The anti-shock and waterproof structure ensure a durable using life for the scan engine.

The scanner module support automatic scanning by command sent from the host, no need to press the button.

Easy to be embedded in kiosks, vending machine, building entrance, etc.

Over 10 years experience experts can provide professional advice for your solutions.

Ergonomic handle design makes work easier.

Can withstand 1.5m free fall, perfect anti-earthquake and anti-fall.

Super long scan distance can reach 33 cm, minimum resolution can reach 3 mil.

Multiple interface available for your project needs, include common interface such as USB, RS232 and USB-VCP, also we can support unique interface such as RJ45.

2 years warranty with 7x24 hours after-sale service, we're ready to hear from you at any time.

New 32-bit high performance chip, can support quick speed scanning and decoding.

Strong zinc alloy case designed with IP65 standard, fit for any hard application situations.

Good at reading all kinds of fuzzy barcode and high-density barcode, the error rate is less than 1/8000000.

Product Specifications

PERFORMANCE PARAMETER
Light Source Visible Laser Diode 650nm
Scan Pattern Single line Scan
Scan Speed: 100 times/second
Scan Precision 3mil
Scan Width 30mm@scan window, 220mm@200mm
Scan Depth of field 0-350mm (0.33mm pcs0.9)
Host System Interfaces USB, RS232,Keyboard Wedge
Decode Capability EAN-8, EAN-13, UPC-A,UPC-E,Code 39, Code 128, EAN128, Codabar, Industrial 2 of 5, Interleave 2 of 5, Matrix 2 of 5, MSI, etc.
Tilt 30
Elevation Angle 65
Deflection Angle 55
Support Inferface RS232, PS2 and USB
Print Contrast 30% UPC/EAN 100%
Mention Pattern Buzzer, Indicator
Scan Mode Automatic, with auto sensor
MECHANICAL PARAMETER
Size L x W x H: 68mm x 51.9mm x 26.3mm
Weight 287g
Material Zinc alloy
Cable Standard 1.45M straight
ELECTRICAL PARAMETER
Voltage 5VDC
Operating Current 85mA peak current (120 mA )
Laser Class Meet the Grade I National Criteria for Laser Safety
EMC CE & FCC DOC compliance
ENVIRONMENTAL PARAMETER
Operating Temperature 0°C to 45°C
Storage Temperature -20°C to 60°C
Humidity 5% to 85% relative humidity, non-condensing
Light Levels Daylight, 5000Lux
DECODE CAPABILITY

Industrial 2 of 5,Standard 25/Matrix 25/China post 25/Code 11/Codabar/MSI/plessey/UK/plessey/Code39
(Standard 39 & Full ASCII Code 39)/Code 32/Code 93/ Code128/UPCA,UPCE,EAN13,EAN8,UPC/
EAN add-on 2/5, ISBN,ISSN, GS1(RSS) RSS-14,LIMITED, EXPENDED, Include GS1 STACK

Certificate

Black Durable Industrial 1D Laser Barcode Scanner Kiosk Module For OEM

Application

Black Durable Industrial 1D Laser Barcode Scanner Kiosk Module For OEM

Delivery

Black Durable Industrial 1D Laser Barcode Scanner Kiosk Module For OEM

RFQ

1. How about the quality?
Professional QC team and testing machine(Engine age testing,wire bending machine,switch life testing,shock resistance testing). All the products pass CE, FCC, ROSH, etc.

2. Why so competitive?
With over 13 years experience,we're listed barcode scanner manufacturer in China.We are the Top 3 barcode scanner brand in China.So large quantity will reduce our raw material cost directly.What's more,we have mature technology to save cost.


3. How to control the performance stable?
We take the flow line production in the whole processing.Every product will test 5 times at least before it delivery.


4. Is OEM or ODM available?
Yes.We are the factory directly.We can make it as your requirement.


5. Why customer choose us?
ISO9001 factory with strictly quality control system.Prompt after-sales service.


6. How about the factory?
We have more than 200 workers with advanced dust-free plant.We are approved the new high-tech enterprise by the government.Owned many technical and design patents in different professional fields.
