SUNLUX Laser Scanner Module , Waterproof Structure Barcode Scanner OEM Module
SUNLUX Laser Scanner Module , Waterproof Structure Barcode Scanner OEM Module
SUNLUX Laser Scanner Module , Waterproof Structure Barcode Scanner OEM Module
SUNLUX Laser Scanner Module , Waterproof Structure Barcode Scanner OEM Module
Specifications
Brand Name :
SUNLUX
Model Number :
XL-518
Certification :
CE
Place of Origin :
Guangzhou, China
MOQ :
50 Pieces
Price :
Negotiation
Payment Terms :
T/T
Supply Ability :
60000 PCS per month
Delivery Time :
5-8 work days
Packaging Details :
Bubble pack+Box for 1 piece, 50 pieces per carton.
Anti-shock :
2M drop
Scan Speed :
300 times/s
Scan Precision :
3mil
Material :
Zinc
Color :
Black
Secondary Develop :
Available
Description

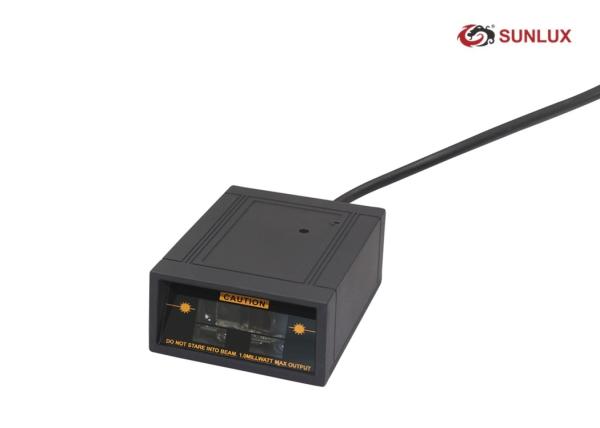

SUNLUX High Quality Waterproof Structure XL-518 Laser Barcode Scanner Module

Product Features

1. Support USB, PS2, RS232 and USB-VCP interfaces
2. The integrated structure design ensure more durable performance
3. High resilience board key and low maintenance cost
4. Ergonomic handle design makes work easier
5. Can withstand 1.5m free fall, perfect anti-earthquake and anti-fall

6. New 32-bit high performance full hardware decoding technology
7. Unique optical process reflective lens, sensitive and fast scanning
8. Strong identification of fuzzy barcode and high-density barcode
9. Equipped with simple assembly bracket
10. Intelligent induction code scanning
11. Often used in high precision industries: electronics, digital, jewelry, etc

Product Specifications

PERFORMANCE PARAMETER

Light Source

Visible Laser Diode 650nm

Scan Pattern

Single line Scan

Scan Speed:

100 times/second

Scan Precision

3mil

Scan Width

30mm@scan window, 220mm@200mm

Scan Depth of field

0-350mm (0.33mm pcs0.9)

Host System Interfaces

USB, RS232,Keyboard Wedge

Decode Capability

EAN-8, EAN-13, UPC-A,UPC-E,Code 39, Code 128, EAN128, Codabar, Industrial 2 of 5, Interleave 2 of 5, Matrix 2 of 5, MSI, etc.

Tilt

30

Elevation Angle

65

Deflection Angle

55

Support Inferface

RS232, PS2 and USB

Print Contrast

30% UPC/EAN 100%

Mention Pattern

Buzzer, Indicator

Scan Mode

Automatic, with auto sensor

MECHANICAL PARAMETER

Size

L x W x H: 68mm x 51.9mm x 26.3mm

Weight

287g

Material

Zinc alloy

Cable

Standard 1.45M straight

ELECTRICAL PARAMETER

Voltage

5VDC

Operating Current

85mA peak current (120 mA )

Laser Class

Meet the Grade I National Criteria for Laser Safety

EMC

CE & FCC DOC compliance

ENVIRONMENTAL PARAMETER

Operating Temperature

0°C to 45°C

Storage Temperature

-20°C to 60°C

Humidity

5% to 85% relative humidity, non-condensing

Light Levels

Daylight, 5000Lux

DECODE CAPABILITY

Industrial 2 of 5,Standard 25/Matrix 25/China post 25/Code 11/Codabar/MSI/plessey/UK/plessey/Code39
(Standard 39 & Full ASCII Code 39)/Code 32/Code 93/ Code128/UPCA,UPCE,EAN13,EAN8,UPC/
EAN add-on 2/5, ISBN,ISSN, GS1(RSS) RSS-14,LIMITED, EXPENDED, Include GS1 STACK

FAQ

Q:Can I make a trial or sample order before ordering?

A: Yes,sure

Q: How can I stick my logo on scanners? how much ?

A: Yes, we can stick your logo on the scanner, but there should be a MOQ of 1000 pcs. Also we can provide scanners without logo.

Q:Can we have our logo or company name to be printed on the product or package?

A:Yes, barcode scanners with logo or company name is acceptable, please contact us for more details.

Q: How about your warranty?

A: The buyer will enjoy 2 year warranty since buying from us

Q: If the scanner not working ,how can we do ?

A: Pls contact and inform related sales managers with the issues you have.
