2.4G Frequency Long Range Barcode Reader , 100m Bluetooth 2d Barcode Scanner
2.4G Frequency Long Range Barcode Reader , 100m Bluetooth 2d Barcode Scanner
2.4G Frequency Long Range Barcode Reader , 100m Bluetooth 2d Barcode Scanner
2.4G Frequency Long Range Barcode Reader , 100m Bluetooth 2d Barcode Scanner
2.4G Frequency Long Range Barcode Reader , 100m Bluetooth 2d Barcode Scanner
2.4G Frequency Long Range Barcode Reader , 100m Bluetooth 2d Barcode Scanner
Specifications
Brand Name :
SUNLUX
Model Number :
XL-9221G
Certification :
CE, FCC
Place of Origin :
China
MOQ :
50 Pieces
Price :
Negotiation
Payment Terms :
T/T
Supply Ability :
60000 PCS per month
Delivery Time :
5-8 work days
Packaging Details :
Bubble pack+Box for 1 piece, 50 pieces per carton.
Light Source :
White LED (Lighting)
CPU :
MIPS @1GHz
Image Sensor :
CMOS
Image Size :
640x480 pixels
Precision :
4mil
Depth of Scan Field :
20-220mm (13mil PCS90%)
Description

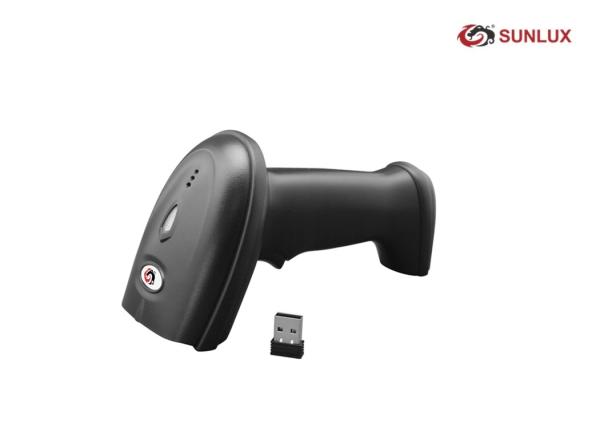

XL-9221G 2.4G Frequency Dark Grey Wireless 2D Barcode Scanner

Product Features

1. 4mil Precision, good at reading small barcodes.

2. No need driver, plug and play.

3. Small size mini USB receiver.

4. Support 2.4G Frequency 100m distance transfer & USB transfer.

5. Large storage capability of 40,000 EAN 13.

6. Firmware support upgrade on-line.

8. One time full charging spends 4.5h, continuously working 16h.

9. CMOS Image Technology, read all main 1D&2D barcodes.

Product Specifications

Light Source White LED (Lighting)
CPU MIPS @1GHz
Image Sensor CMOS
Image Size 640x480 pixels
Light Source Red light,LED,622nm±10nm
Precision 4mil
Depth of Scan Field 20-220mm (13mil PCS90%)
Sensitivity Roll:360° Skew:±65°, Pitch:±55°
Wireless Performance 2.4G: 100M communication distance (open space)
Scan Speed 30fps/s
Memory Capacity Up to 520,000 characters (40,000 EAN 13 barcodes)
Scan Mode Manual & Continuous
Decoding Capability 1D: UPC-A; UPC-E; EAN-8; EAN-13; Code39; Codabar; Code128; Interleaved 2 of 5; Industrial 2 of 5; Matrix 2 of 5; Code 93; UCC/EAN 128; Code 11; MSI; UK/Plessey ; ISBN/ ISSN; GS1 Databar Expanded; GS1 Databar; GS1 Databar Limited. 2D: QR code; PDF 417; Datamatrix
Dimension

Size: L × W × H:170mm × 73mm × 102mm

Receiver: L × W × H:19mm × 14mm × 6mm
Weight 200g
Material ABS+PC
Battery Rechargeable lithium battery, 2200 mAh 16h (continuous working )
Current (Working) 350MA(Working current), 106MA(Static current) ,<1uA(Standby current)
Temperature -20℃- 55℃(working temperature),- 40℃- 80℃(Storage temperature)
Support Interface USB,USB-VCP(under 2.4G& Wired mode)
Charging Mode Micro USB charging , DC5V (charging voltage), 4.5 hours (charging time)
Communication Mode 2.4G Wireless
Indicator Double LED Indicator and Buzzer
Humidity 5% to 95%
Illumination 0 to 100000LUX

Product Images

2.4G Frequency Long Range Barcode Reader , 100m Bluetooth 2d Barcode Scanner

RFQ

1. How about the quality?
Professional QC team and testing machine(Engine age testing,wire bending machine,switch life testing,shock resistance testing). All the products pass CE, FCC, ROSH, etc.

2. Why so competitive?
With over 13 years experience,we're listed barcode scanner manufacturer in China.We are the Top 3 barcode scanner brand in China.So large quantity will reduce our raw material cost directly.What's more,we have mature technology to save cost.


3. How to control the performance stable?
We take the flow line production in the whole processing.Every product will test 5 times at least before it delivery.


4. Is OEM or ODM available?
Yes.We are the factory directly.We can make it as your requirement.


5. Why customer choose us?
ISO9001 factory with strictly quality control system.Prompt after-sales service.


6. How about the factory?
We have more than 200 workers with advanced dust-free plant.We are approved the new high-tech enterprise by the government.Owned many technical and design patents in different professional fields.
