Specifications
Brand Name :
SUNNY
Model Number :
HSZ75
Place of Origin :
Hunan
MOQ :
1 set
Price :
USD 110000-150000/ SET
Payment Terms :
L/C, T/T, D/P, Western Union, MoneyGram
Supply Ability :
20 Set/Sets per Month
Delivery Time :
25-30 days
Packaging Details :
container
Maaterial :
cement, crushed stone, sands and so on
Application :
Building Works,Construction Projects,bridges,docks,airport
Control system :
automatic PLC control,totally automatic
Productivity :
≤60m3/h
Mixer :
JS1500 Twin-shaft Concrete Mixer
Warranty :
12 Months
Condition :
New
After-sales service provided :
Engineers available to service machinery overseas,Online support,Video technical support,Field installation,commissioning and training
Description

The HZS50 bucket type batching plant is an advanced, stationary concrete mixing facility designed for reliable and efficient concrete production. With a capacity of about 50 cubic meters per hour, it is well-suited for medium-sized construction projects.

Key Features

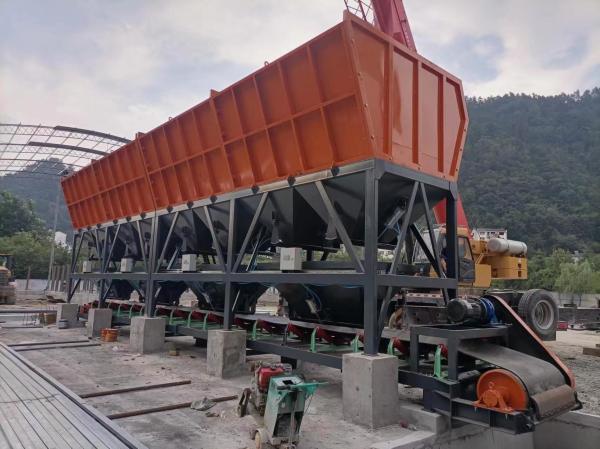

  1. Aggregate Storage: The plant includes several storage bins for different aggregate materials, such as sand and gravel, ensuring a continuous supply for mixing.

  2. Bucket Elevator: Aggregates are lifted from the storage bins to the weighing hoppers using a bucket elevator system, which offers efficient and clean handling with minimal spillage.

  3. Weighing and Mixing: It features an accurate electronic weighing system for all materials—aggregates, cement, water, and additives. This ensures precise mix ratios and high-quality concrete. The mixing is done in a robust twin-shaft horizontal mixer or similar, providing thorough and uniform blending.

  4. Control System: The plant is equipped with a modern computerized control system that allows for real-time monitoring, recipe management, and operational adjustments to maintain consistent concrete quality.

  5. Discharge System: The concrete is efficiently discharged through a bucket-type system, enabling smooth transfer to transport vehicles or directly to the construction site.

Name of parameter
HZS60
HZS90
HZS120
HZS180
HZS240
Theoretical productivity
60 M3/h
90 M3/h
120 M3/h
180 M3/h
240m³/h
Model of mixer
JS1000
JS1500
JS2000
JS3000
JS4000
Mixing motor power
2x18.5Kw
2x30Kw
2x37Kw
2x55Kw
2*75Kw
Cycle period
60s
60s
60s
60s
60s
Volume of mixer
1000L
1500L
2000L
3000L
4000L
Unloading height
4.0m
4.0m
4.0m
4.0m
4.0m
Measuring range and precision of aggregate
(600-2000)≤±2%
(700-2400)≤±2%
(1000-3600)≤±2%
(1600-4800)≤±2%
(1600-4800)≤±2%
Measuring range and precision of cement
(300-1200)≤±1%
(300-1200)≤±1%
600-1800)≤±1%
(800-2400)≤±1%
(800-2400)≤±1%
Measuring range and precision of coal ash
(200-600)≤±1%
(200-600)≤±1%
(300-900)≤±1%
(400-1200)≤±1%
(400-1200)≤±2%
Measuring range and precision of water
200-600)≤±1%
(200-600)≤±1%
(200-700)≤±1%
(360-1200)≤±1%
(360-1200)≤±1%
Measuring range and precision of admixture
20-60)≤±1%
(20-60)≤±1%
(30-100)≤±1%
(36-120)≤±1%
(36-120)≤±1%

Automatic PLC Control Mixer JS1500 Twin-shaft Concrete Batching Plant 50 60 90 120 m3/h

Q: What kind of products do you have?
1. Stationary concrete batching plant arranges from HZS25 to HZS180.
2. Mobile concrete batching plant.
3. Concrete mixer machine.
4. Portable drum concrete mixer with diesel engine.
5. Spare parts including screw conveyor and bolted cement silo.
Q: Are you trading company or manufacturer?
A: We are manufacturer. We can design and manufacturer products with our patent. Welcome to visit us to check it!
Q: What are the terms of payment in your formal trade?
A:Normally we can work on T/T term ,L/C term and Alibaba Trade Assurance Order Online .
T/T: 30%T/T prepayment , 70% paid by T/T before delivery.
L/C: 100% irrevocable L/C at sight.
