ISO9001 Mirror Villa 450kg 800MM Passenger Elevator With Center Opening Door
ISO9001 Mirror Villa 450kg 800MM Passenger Elevator With Center Opening Door
ISO9001 Mirror Villa 450kg 800MM Passenger Elevator With Center Opening Door
ISO9001 Mirror Villa 450kg 800MM Passenger Elevator With Center Opening Door
Specifications
Brand Name :
SUNNY
Model Number :
Passenger elevator
Certification :
3C,CE
Place of Origin :
China
MOQ :
1 set
Price :
$7000~12000
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
500 Set/ Year
Delivery Time :
15~30 days
Packaging Details :
container
Name :
Passenger elevator
Load :
450-1600kg
Speed :
1.0~2.5m/s
Handrail :
Stainless steel/wooden/others
Warranty :
12 months after shipping
Door Knife :
Double
Usage :
Passenger elevator
Elevator Door :
Center Opening Door
Product :
Passenger elevator
Description

Shaft and machine room dimensions for mini MR passenger elevator

1, Passenger elevators and escalators, sightseeing lift ,moving walk and home lift .
2, Good quality and competitive price
3, Good before and after sales service.

Load(kg) Speed(m/s)

Opening

width

JJ(mm)

Car

width

AA(mm)

Car

depth

BB(mm)

Car

height

CH(mm)

Hoistway

width

AH(mm)

Hoistway

depth

BH(mm)

Machine

room

width

AM(mm)

Machine

room

depth

BM(mm)

 QH(mm)
450 1.0 800 1400 850 2385 1900 1500 1900 1500 975
630

1.0

1.6

1.75

 800 1400 1100 1900 1750 1900 1750 975
800 1100 1400 1800 2050 1800 2050 900
800

1.0

1.6

1.75

2.0

2.5

 800 1400 1350 2385/2490 1900 2000 1900 2000 975
800 1350 1400 1850 2050 1850 2050 950
1000

1.0

1.6

1.75

2.0

2.5

 900 1600 1500 2200 2150 2200 2150 1100
900 1600 1400 2200 2050 2200 2050 1100
900 1100 2100 2100 2500 2100 2500 1093
1250

1.0

1.6

1.75

2.0

2.5

 1000 1800 1500 2490 2400 2250 2400 2250 1200
1100 2000 1400 2600 2150 2600 2150 1300
1350

1.0

1.6

1.75

2.0

2.5

 1100 2000 1500 2600 2250 2600 2250 1300
1600

1.0

1.6

1.75

2.0

2.5

 1100 1950 1750 2600 2500 2600 2500 1300
1100 2000 1750 2600 2500 2600 2500 1300
1100 2100 1600 2700 2350 2700 2350 1350

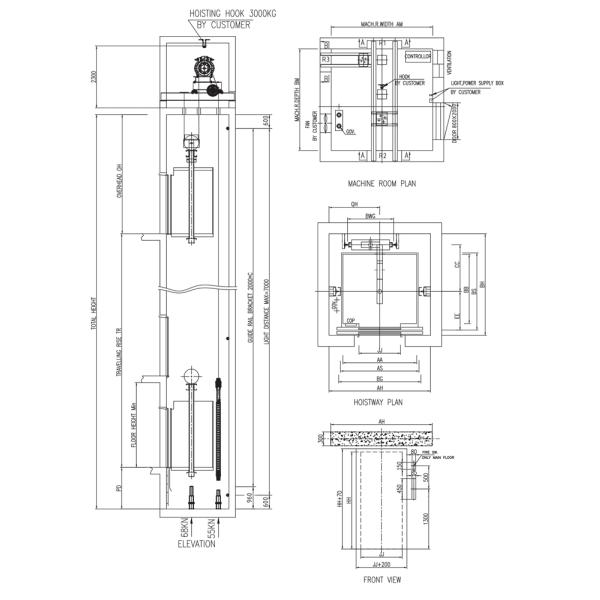

Construction Sketch

ISO9001 Mirror Villa 450kg 800MM Passenger Elevator With Center Opening Door

ISO9001 Mirror Villa 450kg 800MM Passenger Elevator With Center Opening Door

ISO9001 Mirror Villa 450kg 800MM Passenger Elevator With Center Opening Door

ISO9001 Mirror Villa 450kg 800MM Passenger Elevator With Center Opening Door


FAQ
1. Is it dangerous for power failure suddenly during the elevator running?
If it occurs, the elevator will automatically stop due to the electrical and mechanical safety device. In case of power failure,elevator brakes will automatically taken. In addition, the power supply departments such as planned outage, prior notice are also operating.


2. Will us be hurt when it closed suddenly?
In the closing process, if people touch the hall door, the door of elevator will automatically restart without any danger. With anti clamping switch, once the gate touched, this switching action make the elevator unable to be closed and even reopened. In addition, closing force is also available here.


3. How the elevator running?
Elevators are operated with a counterweight wire rope through the (tractor) traction drive, making ups and downs on the guide rail.


4. Do you have any cerifications?
Yes, we do with ISO9001 / CCC / CE Certificates for u.
