Specifications
Brand Name :
SolarEast
Model Number :
YC-220TA1
Certification :
CE
Place of Origin :
CHINA
Supply Ability :
5000 Unit/Units per Month
Power supply :
380-415/3/50
Installation :
Freestanding
Refrigerant :
R410a
Warranty :
2 years
Feature :
High Efficiency
Max Hot Water Temp. :
43℃
Air Flow Direction :
Vertical
Heat Exchanger :
Titanium
Communication :
MODBUS
Description

To learn more about Solareast Heat Pumps, click the link to watch the video! ➡https://www.youtube.com/watch?v=Y9Y2rir3sJU

Technical Data

Model DLN-050TA1 DLN-100TA1 DLN-200TA1 DLN-400TA1
Power supply V/Ph/Hz 380-415/3/50
Heating Capacity at Air 7℃/6℃, Water 30℃ in, 35℃ out
Heating Capacity kW 45 90 180 350
Power Input kW 10.3 20.8 42 81.4
COP 4.36 4.32 4.25 4.30
Heating Capacity at Air 7℃/6℃, Water 50℃ in, 55℃ out
Heating Capacity kW 36 67 167 328
Power Input kW 15.5 25.48 56.7 113.9
COP 2.32 2.63 2.95 2.88
Heating Capacity at Air -12℃/-14℃, Water 50℃ in, 55℃ out
Heating Capacity kW 24 40 107 205
Power Input kW 15.4 25 54 104.6
COP 1.55 1.60 1.98 1.96
Cooling Capacity at Air 35℃/24℃, Water 12℃ in, 7℃ out
Cooling Capacity kW 30 60 140 269
Power Input kW 11.9 22.9 43.8 87.9
EER 2.53 2.62 3.19 3.05
Max Power Input kW 16.8 36.5 70.1 145.0
Max Current A 31.5 63.3 132.5 260.0
Compressor quantity 1 2 2 4
Expansion Valve mm Saginomiya/EEV Saginomiya/EEV Danfoss/EEV Danfoss/EEV
Air Flow Direction Vertical
Water Flow Volume m³/h 8 16 32 60
Water Pressure Drop kPa 50 50 48 50
Dimensions(L*W*H) mm 1252*1076*1870 2198*1096*2176 2300*1150*2400 2800*2200*2450
Working temperature range -25~48
Noise dB(A) ≤62 ≤67 ≤70 ≤76
IP class IPX4
Net Weight kg 450 800 1330 2186
Water connection mm DN 40 DN 80 Flange DN 80 Flange DN 100

R410A Environmentally Friendly Refrigerant

Solareast's TA series of commercial heating and cooling heat pumps utilizes R410A refrigerant, which offers several significant advantages. Firstly, R410A has zero ozone depletion potential, making it an environmentally friendly choice with minimal impact on the environment. Its superior thermodynamic properties enhance energy efficiency and reduce operating costs. This refrigerant also boasts excellent heat transfer capabilities, ensuring optimal heating and cooling performance. Additionally, R410A operates at higher pressures, allowing for more compact system designs and improved overall performance.Moreover, R410A significantly enhances the durability and reliability of heat pump systems, ensuring consistent performance over time. By employing R410A refrigerant, Solareast's TA series commercial heat pumps provide an efficient, environmentally friendly, and cost-effective solution to meet the heating and cooling needs of commercial buildings.

Water Temperature Output Of Up To 60 ºC

Capable of delivering hot water up to 60 degrees Celsius, Solareast's TA series is ideal for commercial spaces such as hotels, hospitals and factories. The heat pump system provides a reliable heating and cooling solution, ensuring a comfortable environment all year round. With a maximum water temperature of up to 60 degrees Celsius, customers can enjoy a consistent supply of warm water in a variety of applications. All in all, Solareast's TA series is an excellent choice for commercial environments that require economical, reliable and efficient heating and cooling solutions.

50KW/100KW/200KW/400KW R410a High Efficiency Defrost Automatically Commercial Heat Pump

Protection Against High Pressure

A standout feature of Solareast's TA series is its robust high-pressure protection system. This built-in safety measure ensures that the heat pump operates smoothly within safe pressure limits at all times, preventing potential damage or malfunctions due to excessive pressure. The high-pressure protection function guarantees the longevity and reliability of the heat pump, enabling continuous and uninterrupted operation. This proactive measure minimizes the risk of system failure while ensuring optimal performance and durability. With Solareast's TA series, customers can be confident that their heat pump systems are equipped with advanced high-pressure protection for safe and efficient operation in various commercial applications.

50KW/100KW/200KW/400KW R410a High Efficiency Defrost Automatically Commercial Heat Pump

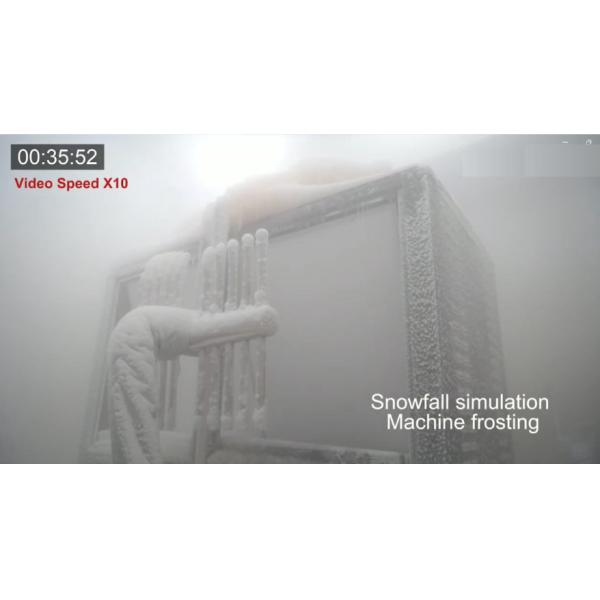

Automatically Defrost

Another key feature of Solareast's TA series is the automatic defrost function. This innovative feature detects frost or ice buildup on the outdoor heat exchanger during cold weather conditions and effectively removes it. By automatically initiating a defrost cycle, the system ensures efficient heat transfer and maintains optimal performance even in extreme cold. The automatic defrost function eliminates the need for manual intervention, saving users time and effort. With this feature, Solareast's TA series provides a reliable operating experience that minimizes downtime while ensuring consistent heating and cooling performance in commercial environments.

50KW/100KW/200KW/400KW R410a High Efficiency Defrost Automatically Commercial Heat Pump

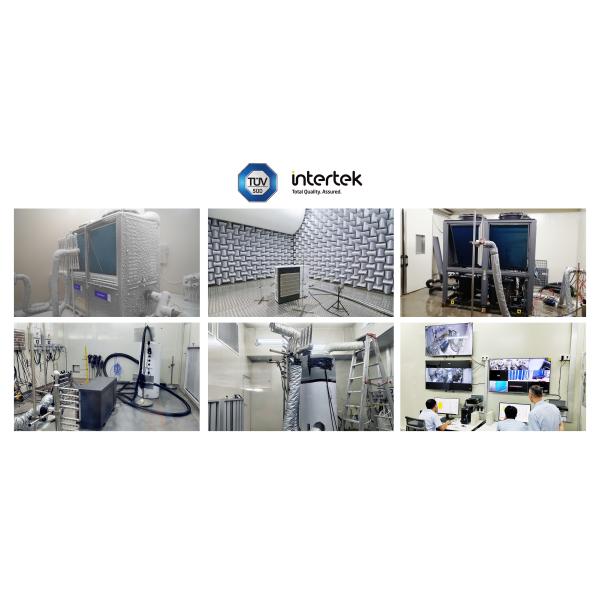

Laboratory

At Soalreast Heat Pump Ltd., we have invested USD 3 million to create an advanced laboratory capable of simulating extreme environmental conditions from -30°C to 52°C, ensuring long-term operational testing. Our facility includes a state-of-the-art data monitoring center and has received certifications from TUV and Intertek, affirming the highest standards of quality and safety. In 2023, we are expanding with the construction of a water drawing testing laboratory and an explosion-proof laboratory to further enhance our testing capabilities.

50KW/100KW/200KW/400KW R410a High Efficiency Defrost Automatically Commercial Heat Pump

Solareast Projects All Over The World

With many years of project experience, Solareast has established good relationships with many global strategic partners.Solareast heat pumps have earned a good reputation worldwide, especially in Europe, UK, Germany, France, Poland, Netherlands, Czech Republic, Australia, Italy, Russia, Spain, Portugal and Norway. Through continuous technological innovation and excellent customer service, Solareast is committed to meeting the heating and cooling needs of different markets, promoting sustainable development, and providing customers with efficient and reliable solutions.

50KW/100KW/200KW/400KW R410a High Efficiency Defrost Automatically Commercial Heat Pump

Global Certification

We have a total of 203 certifications worldwide, covering 1,129 product models. Among them, international certifications include ISO 14001, ISO9001, CB, UN38.3, IEC, MSDS, etc.; European certifications include SG, ErP, PED, LVD, CE, MCS, UKCA, etc.; Australia certifications include SAA, Solar keymark, StandardsMark, OceanaMark, etc.; Asian certifications includeCCC, CQC, CHINA GREEN PRODUCT, etc.; North American certifications include SRCC, NSF, etc.

50KW/100KW/200KW/400KW R410a High Efficiency Defrost Automatically Commercial Heat Pump

More information:https://www.solareasthvac.com/
