4000 BPH Apple Fruit Juice Filling Machine With Plastic Screw Cap
4000 BPH Apple Fruit Juice Filling Machine With Plastic Screw Cap
Specifications
Brand Name :
SUNRISE
Model Number :
KQSHF-06
Certification :
EcoVadis audit, UL certification, SGS certification, Sedex certification, European Union PED, American ASME, German TUV, Russian GOST, European Union ATEX, Australia AS1210, CE, ISO
Place of Origin :
Jiangsu, China
MOQ :
1
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
6 units per year
Delivery Time :
120 days
Packaging Details :
Standard shipping wooden box or stretch film packaging
Capacity: (BPH) :
3000-4000
Cleaning head: :
16
Filling head: :
12
Gland head: :
6
Bottle diameter: :
60-97mm
Bottle height: :
150-320mm
Weight (kg): :
2800
Power (kw): :
3.5
Description

Apple Juice Filling Machine

KQSHF Apple juice filling machine series juice filling line is used to produce PET bottled juice within the volume from 250ml-1500ml.ifferent models can satisfy various requirement of output from 1500B/H to 25000B/H. This machine incorporates washing, filling and capping into one kind of full-automatic equipment. It is suitable for producing PET and Plastic bottled juice and tea. The method of filling adopts hot filling. The equipment is fitted with advanced Siemens PLC to control the operation and cooperated by frequency converter of the main motor. It makes the operation more stable and reliable. the photoelectric sensor is used to detect operating conditions of each section, which makes the operation of this equipment highly automatic and convenient.

Apple juice filling machine Technical Parameter

model KQSHF-06 KQSHF-06A KQSHF-08 KQSHF-10
capacity(BPH) 3000-4000 5000-6000 10000 14000
washing heads 16 18 24 32
filling heads 12 18 24 32
capping heads 6 6 8 10
suitable bottle PET bottle plastic bottle
diameter of bottle 60-97mm
height of bottle 150-320mm
suitable cap plastic screw cap
weight(kg) 2800 4000 6000 8000
Power(kw)3.5 3.5 4.62 5.5 6.62



Apple juice filling machine Main details

Washing heads

1). The rotary disk is fully made of SUS304 stainless steel.
2). Using company original tilting bottle clip, bottle clamp stuck bottleneck.
3). Using imported special efficient spray nozzle.

4000 BPH Apple Fruit Juice Filling Machine With Plastic Screw Cap

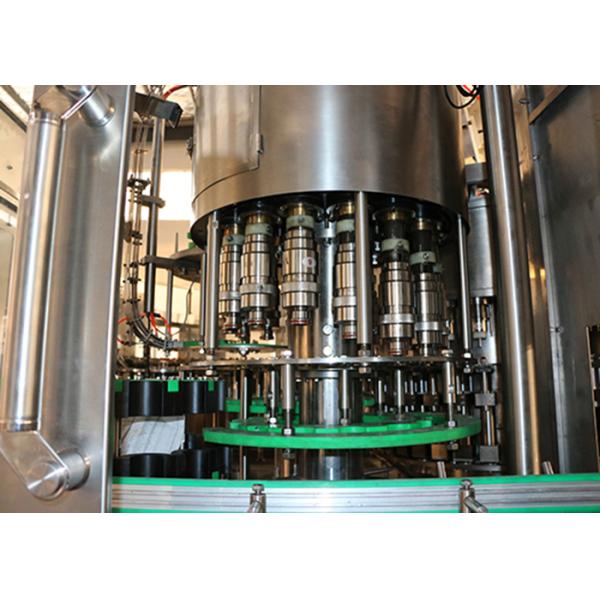

Filling heads

1). The washing bottle, filling, sealing are connecting with bottleneck transportation methods.
2). The rotating disk is all made of SUS304 stainless.
3). Filling method is gravity filling.

4000 BPH Apple Fruit Juice Filling Machine With Plastic Screw Cap

Capping heads

1). The capping machine is the highest precision in 3-in-1 unit machine
2). Full made of stainless steel SUS304

4000 BPH Apple Fruit Juice Filling Machine With Plastic Screw Cap

Apple Juice Filling Machine Features

1. The main frame machine of apple juice making machine adopts the automatic control technology of PLC and transducer with high degree of automatization.
2. The dynamical system of apple juice making machine is connected by transmission shaft with stable performance.
3. The filling principle of micro negative gravity increases the precision.
4. The advanced automatic lubricating system which equipped on juice making machine requires no manual effort and increases the life span of the machines.
5. The noise of juice making machine is low and the overall machine is easy to maintain.
