CIP System Lemon Fruit Juice Filling Machine Hot Filling
CIP System Lemon Fruit Juice Filling Machine Hot Filling
Specifications
Brand Name :
SUNRISE
Model Number :
KQSHF-08
Certification :
EcoVadis audit, UL certification, SGS certification, Sedex certification, European Union PED, American ASME, German TUV, Russian GOST, European Union ATEX, Australia AS1210, CE, ISO
Place of Origin :
Jiangsu, China
MOQ :
1
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
6 units per year
Delivery Time :
120 days
Packaging Details :
Standard shipping wooden box or stretch film packaging
Production capacity (500ml bottle): :
10000 bottles/hour
Rinsing heads: :
24
Rinsing time: :
2-2.5 s
Filling valve heads: :
24
Filling valve flow speed: :
140~150ml/s
Capping heads: :
8
Total power: :
5.5KW
Capping moment: :
0.6~2.8Nm (adjustable)
Description

Lemon juice filling machine

Product Description

Sunrise lemon juice filling machine incorporates rinsing, filling and capping into one and is a kind of full-automatic equipment. It is suitable for producing PET and plastic bottled juice and tea. The method of filling adopts hot filling. The equipment is fitted with advanced Siemens PLC to control the operation and cooperated by frequency converter of the main motor. It makes the operation more stable and reliable. The photoelectric sensor is used to detect operating conditions of each section, which makes the operation of this equipment highly automatic and convenient.

Application:

Tea, juice, functional drink, milk beverage etc.

Technical characteristics

Full filling avoids the bottle distorted after cooling and reduces dissolved oxygen at the maximum degree. Product storage hopper and feed system adopt reasonable product feed design (constant flow, constant pressure, no foaming). Product hopper with reasonable structure (exhaust, fully close, temperature can be detected). Medium and high speed line adopts product distributor instead of large liquid carousel, which can be cleaned completely by pressure cleaning with CIP. Sanitary filling valve system umbrella-flow type structure, high speed. Perfect hot filling temperature control system. Product recycle tank system with automatic product feed startup. Perfect CIP system.

model KQSHF-06 KQSHF-06A KQSHF-08 KQSHF-10
capacity(BPH) 3000-4000 5000-6000 10000 14000
washing heads 16 18 24 32
filling heads 12 18 24 32
capping heads 6 6 8 10
suitable bottle PET bottle plastic bottle
diameter of bottle 50-106mm
height of bottle 180-340mm
suitable cap plastic screw cap
weight(kg) 2800 4000 6000 8000
main motor power(kw) 3.5 4.62 5.5 6.62


Bottle design service

Our engineer can design different bottle drawing for your reference!

Contact Us: We will send design drawing

Layout design service

We supply standard layout for each water filling machine line,

also available for customize design layout based on Customers Factory Area!

Give US: Factory Area

Label design service

Design colorful label for customers choice

Provide Us: Information want to put on label

SUNRISE sales service

Before Sales

1.Answer your any question on us within 24 hours.

2.Supply all information you required.

3.Machines video for reference

4.Welcome to visit factory

On Sales

1.Update production progress each week

2.Sending machines pictures on production

3.Machines testing running over 8 hours, and sending testing videos

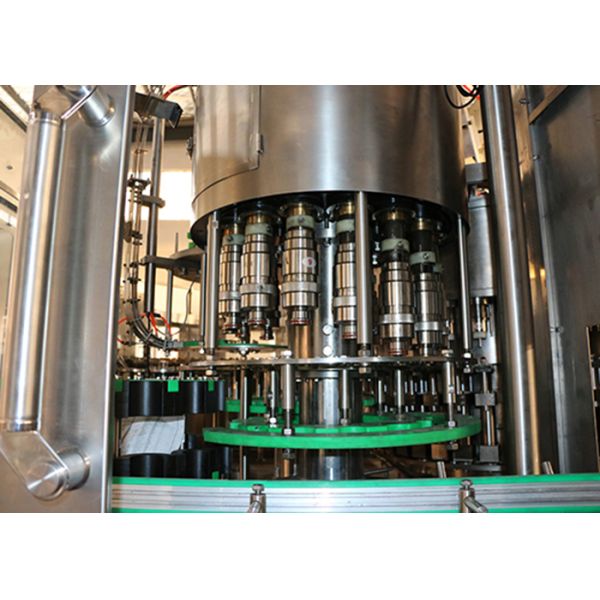

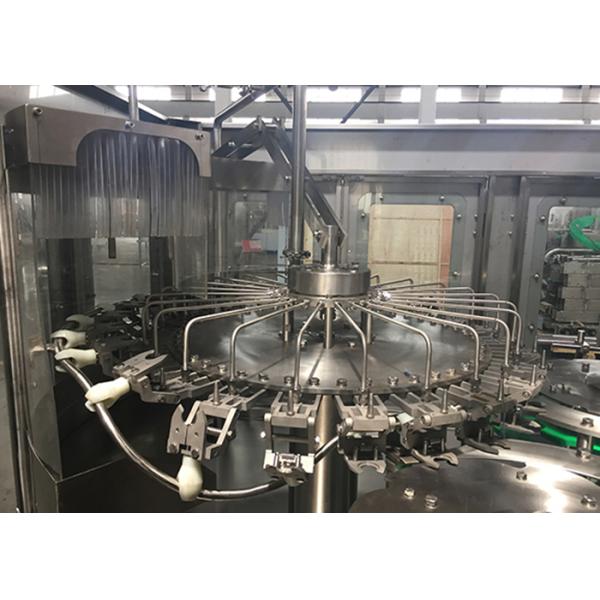

CIP System Lemon Fruit Juice Filling Machine Hot FillingCIP System Lemon Fruit Juice Filling Machine Hot Filling

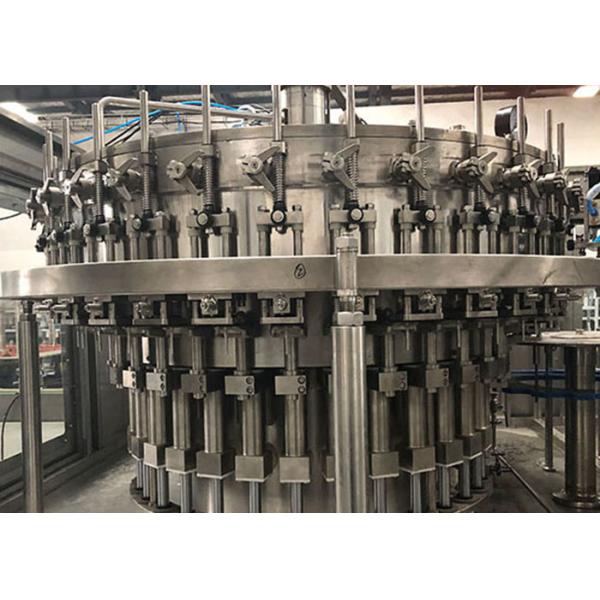

CIP System Lemon Fruit Juice Filling Machine Hot Filling
