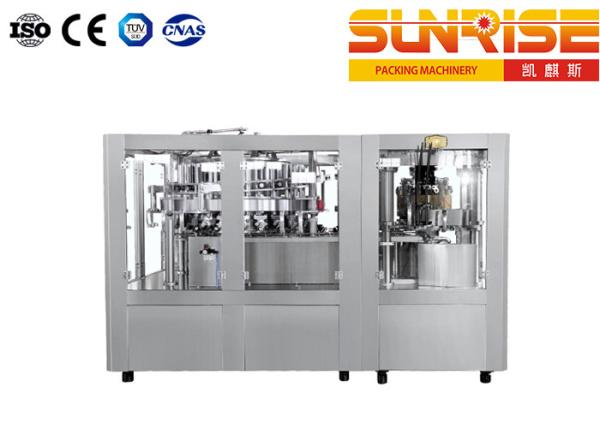

Automatic Liquid Paste Cans Filling Machine, 4 Capping Head Number
Automatic Liquid Paste Cans Filling Machine, 4 Capping Head Number
Automatic Liquid Paste Cans Filling Machine, 4 Capping Head Number
Automatic Liquid Paste Cans Filling Machine, 4 Capping Head Number
Specifications
Brand Name :
SUNRISE
Model Number :
KQSJL04
Certification :
EcoVadis audit, UL certification, SGS certification, Sedex certification, European Union PED, American ASME, German TUV, Russian GOST, European Union ATEX, Australia AS1210, CE, ISO
Place of Origin :
Jiangsu, China
MOQ :
1
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
6 units per year
Delivery Time :
120 days
Packaging Details :
Standard shipping wooden box or stretch film packaging
Model :
KQSJL04
The number of capping head :
4
The number of filling head :
12
Can Height: :
50~160mm
Can Diameter: :
52~99mm
Filling capacity: :
70~850g
Production capacity: :
80~200{cans/min}
Power: :
5.5kw
Operating mode: :
Fully automatic
Description

Automatic Canned paste filling machine

paste filling machine Product description:

The machine adopts the principle of piston filling. After the empty tinplate can or glass bottle sent to the filling position, the compressed air will enter into the cylinder after passing through the pneumatic triplex parts to turn on the filling valve. Under the action of the cam, the piston will move downwards in the piston cylinder to carry out filling. After filled, the filling valve will be automatically closed under the action of cylinder. The piston will carry out material suction.
The material cylinder is made of high quality stainless steel, and equipped with various automatic control designs, such as the material blending system, three-point liquid level control, and filling if there is any can.

paste filling machine Advantages:

Stainless steel made
PLC, frequency converter, material blending system, three-point liquid level control, no can no fill.
Easy operation, smoothly running
Low price, high quality
Automatic control

All equipment are in protection state.

All the malfunction will alarm and can be found out easily

Canned paste filling machine main technical parameters:

Model KQSJL04 KQSJL06
The number of capping head 4 6
The number of filling head 12 30
Can Height 50~160mm 50~160mm
Can Diameter 52~99mm 52~99mm
Filling capacity 70~850g 70~850g
Production capacity 80~200{cans/min} 80~400{cans/min}
Power 5.5kw 7.5kw
Weight 4000kg 5800kg
Dimension(L*W*H) 2800*1600*1900mm 3214*2104*1900mm

cans paste filling machine Adapt to the product:

It is suitable for filling of various sauces (such as ketchup, pepper sauce, fruit jam), viscous materials and beverages of high strength or containing pulps or granules, and even rationed filling of pure liquids.
