15000BPH Automatic Secondary Packaging System Air Duct
15000BPH Automatic Secondary Packaging System Air Duct
15000BPH Automatic Secondary Packaging System Air Duct
15000BPH Automatic Secondary Packaging System Air Duct
15000BPH Automatic Secondary Packaging System Air Duct
15000BPH Automatic Secondary Packaging System Air Duct
Specifications
Brand Name :
SUNRISE
Model Number :
KYFS210-FD
Certification :
EcoVadis audit, UL certification, SGS certification, Sedex certification, European Union PED, American ASME, German TUV, Russian GOST, European Union ATEX, Australia AS1210, CE, ISO
Place of Origin :
Jiangsu, China
MOQ :
1
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
6 units per year
Delivery Time :
120 days
Packaging Details :
Standard shipping wooden box or stretch film packaging
1. Production capacity: :
≧15000BPH (calculated based on 0.35L PET empty bottle)
2. Applicable product: :
PET bottle
3. Fan power: :
3kw
4. Air volume: :
2200-2500m³/h
5. Wind pressure: :
600-1300Pa
6. The maximum weight of a single bottle conveyed in the air duct: :
120g
Description

KYFS210-FD Type Air Supply-Air Duct

Product Introduction:

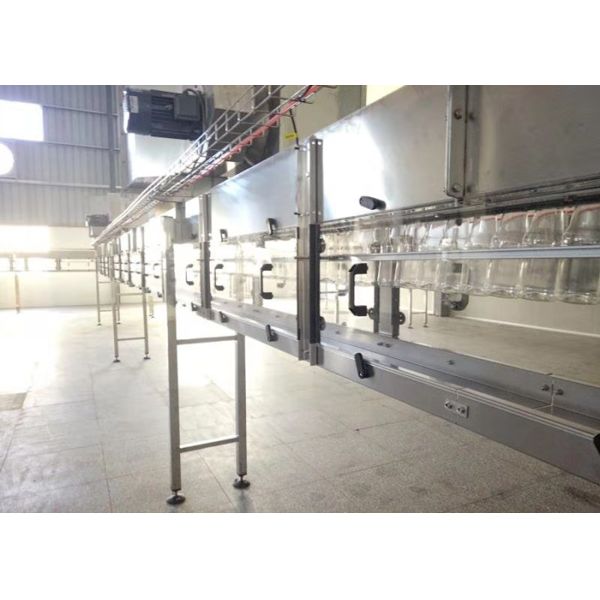

The air conveying line is a device that uses wind to transport empty PET bottles, which is widely used in the transportation of PET empty bottles in the beverage industry. It realizes that the empty bottles produced from the bottle blowing machine are directly transported to the filling machine for disinfection, washing, filling and sealing, which reduces the turnover pollution of the empty bottles during the conveying process and saves production costs. The conveying line has a long conveying route, diversified layout, and can be conveyed horizontally, up and down, and turning. In this way, the space of the workshop can be fully utilized, and the high-efficiency and high-speed delivery of PET bottles has been achieved to meet the high-speed filling machine.

Product Properties:

1. Production capacity: ≧15000BPH
2. Applicable product: PET bottle
3. Fan power: 3kw
4. Air volume: 2200-2500m³/h
5. Wind pressure: 600-1300Pa
6. The maximum weight of a single bottle conveyed in the air duct: 120g
7. Air duct conveying speed: 1-3m/s

15000BPH Automatic Secondary Packaging System Air Duct15000BPH Automatic Secondary Packaging System Air Duct15000BPH Automatic Secondary Packaging System Air Duct

Main Structure And Characteristics :


The PET empty bottle air supply line is mainly composed of air duct, fan power, bottle dropping device, bottle clamping device, splitter and merging device.
The entire air duct is made of 2mm thick SUS304 stainless steel, which can resist various weak acids and weak alkalis. The cross-sectional size is 240mmX220mm. The air duct module is composed of straight ducts, curved ducts and lifting sections.
