Full Box Food & Beverage Inspection Systems 1500 cans / min
Full Box Food & Beverage Inspection Systems 1500 cans / min
Full Box Food & Beverage Inspection Systems 1500 cans / min
Full Box Food & Beverage Inspection Systems 1500 cans / min
Full Box Food & Beverage Inspection Systems 1500 cans / min
Full Box Food & Beverage Inspection Systems 1500 cans / min
Full Box Food & Beverage Inspection Systems 1500 cans / min
Full Box Food & Beverage Inspection Systems 1500 cans / min
Specifications
Brand Name :
T-LINE
Model Number :
TJMXS60
Certification :
EcoVadis audit, UL certification, SGS certification, Sedex certification, European Union PED, American ASME, German TUV, Russian GOST, European Union ATEX, Australia AS1210, CE, ISO
Place of Origin :
Jiangsu, China
MOQ :
1
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
6 units per year
Delivery Time :
120 days
Packaging Details :
Standard shipping wooden box or stretch film packaging
Dimensions: :
683*1428*1889mm
Air consumption of rejector: :
≈6.23L/time
Power: :
0.25KW
Maximum detection speed: :
1500 cans/min
External power supply: :
AC220V/single phase
Temperature: :
0ºC-45ºC
External air source: :
>0.5Mpa
External air source flow: :
>500L/min
Altitude: :
<3000 meters
External air source interface: :
outer diameter φ12 trachea
Description

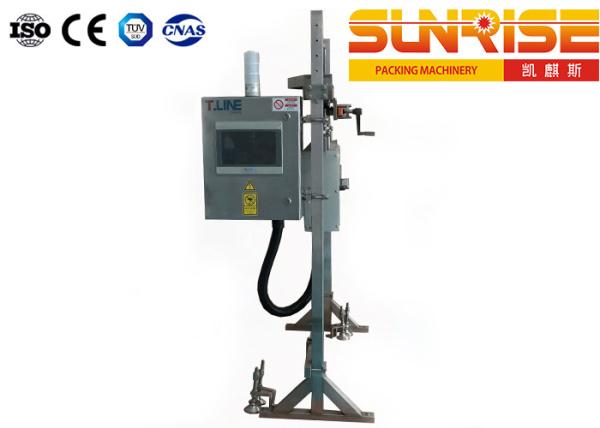

Full Box Food & Beverage Inspection Systems 1500 cans / min

Equipment Overview:

The X-ray full case detector is a liquid level detection instrument developed and produced by our company that has reached the international advanced level. The instrument adopts nuclear technology and uses the principle of changing the intensity of rays after the low-energy photon source interacts with the measured substance to control the volume of the product in the detection box. Because of its non-contact measurement method, it fundamentally solves the problem that the conventional weighing method requires a large distance between the box and the box. Therefore, it is widely used in online inspection of food and beverage.

Equipment Composition And Layout Diagram:

The detection system is mainly composed of a man-machine interface, a differential belt, a weighing detection unit, and a rejector. The weight sensor is the core component of the device; the man-machine interface includes a touch screen, a tower lamp, and an operation interface; the rejector is the system The actuator is used to reject unqualified boxes.
Layout diagram: single-row roller conveyor installed after the packing machine.

Technical Parameters And Characteristics:

--Technical Parameter:

Dimensions: 683*1428*1889mm
Air consumption of rejector: ≈6.23L/time
Power: 0.25KW
Maximum detection speed: 1500 cans/min
External power supply: AC220V/single phase
Temperature: 0ºC-45ºC
External air source: >0.5Mpa
External air source flow: >500L/min
Altitude: <3000 meters
External air source interface: outer diameter φ12 trachea


--Structural Features:​

Non-contact detection
Chinese language menu
Color man-machine interface operation
Up to IP65 grade chassis
Reliable high-speed hit
Continuous hitting alarm
Ten product types storage
Save 10 groups of deleted data
Digital signal processing
Precision hit timing encoder
Alarm information
Network remote control (optional)

Full Box Food & Beverage Inspection Systems 1500 cans / minFull Box Food & Beverage Inspection Systems 1500 cans / minFull Box Food & Beverage Inspection Systems 1500 cans / min

Accessories Brand:

Display: Weiluntong, 11-inch touch screen;
High voltage power supply: American Spellman
Ray receiving tube: Japan Hamamatsu Photon
Optoelectronics: Japan Omron;
Cylinder: Japan SMC;
Signal lights, circuit breakers: Schneider;
Ray launch tube: Oxford, UK
Industrial fan: Australia Leizike;
Encoder: Ike, Switzerland;
Solenoid valve: American MAC;
