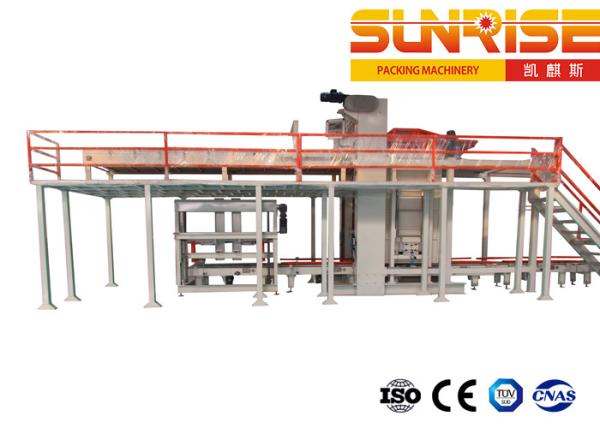

High Bit Empty Can Unloading Machine,Glass Bottle Unloading Machine

High Level Palletizer​ Description:

Designed with innovative features to maintain total bottle control during depalletizing, and built for long-term production, this depalletizer is the solution for bottle, cans handing productivity. will customized according to specific products and requirements of each customer.

Product description:

● High level stacker is suitable for Makou iron can / PET / glass bottle, etc.
● main drive, lifting chain is rs80 double row high-strength chain.
● the conveying line of the conveying stack is rs60 double row high-strength chain, the conveying speed can be variable-frequency and adjustable, and the stacking position can store more than 2 stacks of products.
● the door plates on both sides of the unloading position of the main machine are adjusted automatically when entering the stack.
● it is required to automatically suck and place the collection partition plate when unloading the tank. The cardboard clamping mechanism shall be adjusted to clamp the bottle unloading on the whole layer to prevent the tank from pouring.
● the empty plank is automatically collected, and the lifting drive is the reducer with brake motor, and the lifting movement is stable.
● main electrical components, Mitsubishi PLC, touch screen Schneider, inverter Danfoss, photoelectric (schk), low voltage electrical equipment Schneider.
● the whole machine is controlled by PLC linkage, which is in place automatically, positioned, lifted and lowered automatically, the partition plate is automatically sucked and released, the tank is unloaded automatically, and the empty pallet is automatically collected. It is required to operate simply and can handle abnormal problems quickly.

High Level Palletizer Features:

1.welding-joint structure
2.product input area and buffer area are made of stainless steel expansion cylinder and the output expansioncylinder
3.the finishe d stack is made of carbon steel also can be chain transport
4.adopt with TR/NSK waterproof bearings
5.two arrangement forms: up sliding box and horizontal sliding
6.main lifting mechanism adopts motor drive transmission
7.adopting electric motor transmission sliding board
8.speed up conveyor and steering gear
9. one set of side pressure device for storage place
10.power roller conveyor in stack area
11.permutation buffer
12.one set of pallet positioned
14.empty pallet supplier
15.6 meters chain conveyor

The warranty or guarantee for our drink equipment:

1. The guarantee of our machines is at least one years, also we will send 3% of sales value as spare parts along with the machines free of charge, the parts will be enough for at least 3 years for the normal operation of machines.
2. We can train your engineers in our factory free of charge. It means you can send your engineers to our factory to study and training, we have rich experiences for the training, it is the good way to make sure that you can operate and maintain our machines successfully and for long term normal use.
3. We will offer you detail manual books for our machines. In the event of force majeure, we will make one Video CD to show you how to install and maintain the machines, the CD is the movie for the machines, it will be the great references for you to maintain the machines for the long time.
4. Another way is that we can send our engineers to your factory to install the machines and train your engineers, we think it is the best way to help you operate and maintain the machines. We have been doing the install jobs for our overseas customers for many years. In this way you should provide the room and board, round-trip flight ticket charges, visa fee, insurance,and also need to pay for installation workers as subsidy according to the actual situation.
5. All of the electrical parts in our machines are CE or TUV approved. We can offer you UL or CUL/CSA approved parts if you need for the North American markets. The good electrical parts are the guarantee for the good quality for our machines.
