Bridgelux LED Lens Array 60 W Led Street Light Accessories , ROHS
Bridgelux LED Lens Array 60 W Led Street Light Accessories , ROHS
Bridgelux LED Lens Array 60 W Led Street Light Accessories , ROHS
Bridgelux LED Lens Array 60 W Led Street Light Accessories , ROHS
Bridgelux LED Lens Array 60 W Led Street Light Accessories , ROHS
Bridgelux LED Lens Array 60 W Led Street Light Accessories , ROHS
Specifications
Place of Origin :
Shenzhen,China
Brand Name :
Sunshineopto
Certification :
ROHS
Model Number :
SUN-L60X120ED803
MOQ :
30
Packaging Details :
20pcs lens /parcel 32x18x12cm/2.5kgs
Delivery Time :
5-6 working days
Payment Terms :
T/T,PAYPAL,Western Union,Money Gram
Supply Ability :
5000pcs/months
Material :
PC
Lens Size :
200x150x11.65mm
Beam Angle :
60X120degree
PCB Size :
179x130mm
PCB Circuit :
10 Series 6 Parallel
Main Parts :

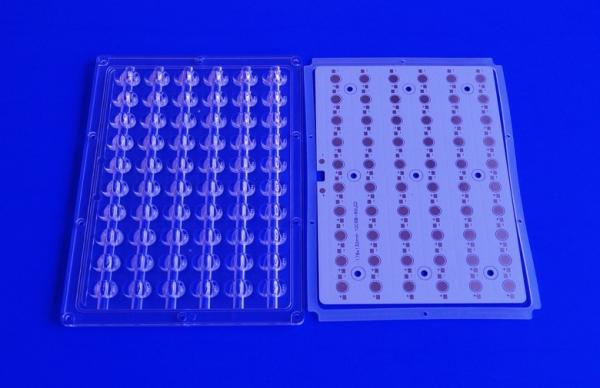

60W Lens+ Silicone gasket + AL PCB mounting leds +Waterproof led constant driver
Description

Bridgelux Lens 60W LED Lens Array, 60W LED Street Light Accessories

Quick Detail:

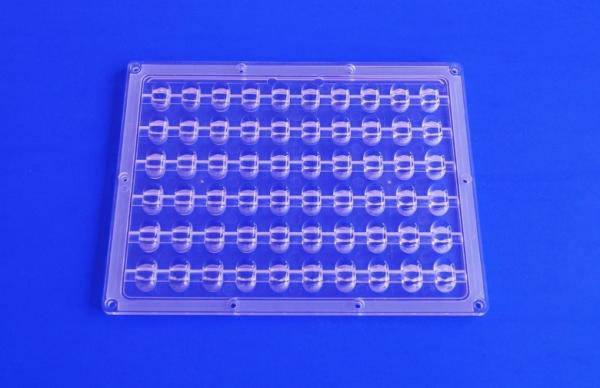

1. 60W Lens Material: optical PC

2. Lens Beam Angle :60x120degree

3. Lens size:200x150x11.65mm

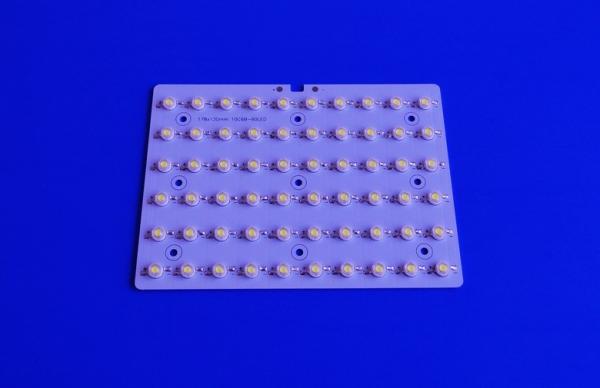

4. PCB Module size :179x130mm

5. Led chips:Bridgelux|Edison

6. Model No : SUN-L60X120ED803

Features :

  1. This SKD 60W Street Light lens with PCB Module is best choice to retrofit the old lamps or assemble power lamps like 60W,120W and so on .
  2. It's the lowest total cost solution ,they can replace existing Metal Halide or HPS bulbs, the old housings can be re-used. The total cost is significantly reduced compared with using new complete LED fixtures.
  3. Industry-leading thermal management utilizing technology
  4. Operating temperature range: from 35 Celsius degree to 70 Celsius degree.
  5. Optic lenses are available for projects that need smaller beam angles, like 90x120°, 140x70°,120x60°, 90x126°etc.

Specifications:

Product Name

Bridgelux Lens 60W LED Lens Array, 60W LED Street Light Accessories

Model No

SUN-L60x120ED803

Main parts

60W Lens+ Silicone gasket + AL PCB mounting leds +Waterproof led constant driver

Lens Material

PC Optical

Lens size

200x150x11.65mm

PCB Size

179x130mm

Driver enclosure

plastic or aluminum case for choice

PCB Circuit

10 series 6 parallel

Certificate

ROHS,CE

Quality guarantee

If you receive defective items, please email us a picture of the defective part. We will send you replacement without extra charger, or offer refund.

Main market

Europe, South America,North America, Asia

Competitive Advantage:

1). Using high quality USA Bridgelux chips
2). CE driver, very easy for repair/replacement
3). Various choice : AC 100-240V Input voltage Waterproof or non-waterproof
4). Higher lumen compared to similar models of others
5). Industry-leading thermal management utilizing technology
6). Top quality with warranty of 2 years warranty
7). LM80 testing reports available
8). All models are simply installed by E26/E39/E40 mounting brackets.

Application:

It is used in the street light ,high way led lamp,tunnel lamp ,square lamp,road lamp, city lighting, parking spot lamp, scenery area and so on. It will be the best to replace traditional high pressure street light .It is also the best choice to retrofit the old HPS lamps as replacement .
