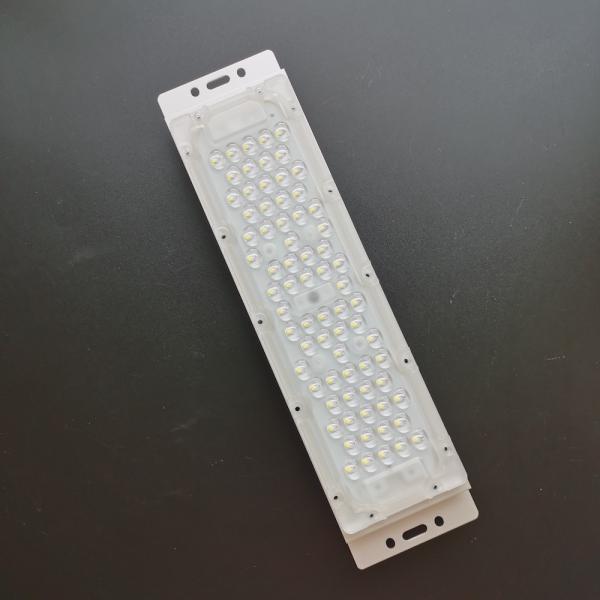

PH3030 LED Street Light Module 50W 160lm/w SMD 8 Series 9 Parallel PCB Circuit
PH3030 LED Street Light Module 50W 160lm/w SMD 8 Series 9 Parallel PCB Circuit
PH3030 LED Street Light Module 50W 160lm/w SMD 8 Series 9 Parallel PCB Circuit
PH3030 LED Street Light Module 50W 160lm/w SMD 8 Series 9 Parallel PCB Circuit
PH3030 LED Street Light Module 50W 160lm/w SMD 8 Series 9 Parallel PCB Circuit
PH3030 LED Street Light Module 50W 160lm/w SMD 8 Series 9 Parallel PCB Circuit
PH3030 LED Street Light Module 50W 160lm/w SMD 8 Series 9 Parallel PCB Circuit
PH3030 LED Street Light Module 50W 160lm/w SMD 8 Series 9 Parallel PCB Circuit
Specifications
Brand Name :
Sunshineopto
Model Number :
SUN-SL72-3030-60
Certification :
SGS,ROHS
Place of Origin :
Shenzhen,China
MOQ :
1
Payment Terms :
T/T,PAYPAL,Western Union,Money Gram
Supply Ability :
5000pcs/months
Delivery Time :
3-4 working days
Packaging Details :
Cartons
Product name :
50W 160lm/w SMD PH3030 LED Light Module For Led Tunnel Lighting
Model No. :
SUN-SL72-3030-60
Angle :
60 degree
Lens dimension :
250x74x6.15mm
Lens Material :
Optical grade PC
LED CHIP :
3030 SMD LED, 150-160lm/w 150mA,6v
Tranmittance :
91%
Application :
High bay light/Street light
Accessory :
gasket and lens+PCB+ 3030SMD LED+Heat sink
PCB size :
226x57.9x1.5mm
PCB Circuit :
8 series 9 parallel
Heat sink size :
300x70x40mm
Other angle :
80x150degree and 90 degree
Description

50W 160lm/w SMD PH3030 LED Light Module For Led Tunnel Lighitng

Product Feature:

1. This led street light module has a small size can match a variety of lamp housing .
2. Whole led light module use Ph3030 leds ,High quality leds guarantee long life .

3. We can according your require to design new Lens & Board.
4. This SKD 72 LED Array lens with PCB Module is best design power lamps like 50W for per module.

5. It’s the lowest total cost solution ,they can replace existing Metal Halide or HPS bulbs, the old housings can be re-used. The total cost is significantly reduced compared with using new complete LED fixtures.


Applications:

It is used in the street light ,high way led lamp,tunnel lamp ,square lamp,road lamp, city lighting, parking spot lamp, track lighting fixtures ,scenery area ,retail lighting and other applications where high luminous flux is desired.

Specifications:

1, Product Name

50W 160lm/w SMD PH3030 LED Street Light Module For Led Tunnel Lighitng

2, Model No

SUN-SL72-3030-60

3, Main parts

Array lens , silicon gasket+PCB+LED+HEAT SINK

4, Lens Material

PC

5, Lens size

250X74MM

6, Transmittance

91%

7,LEDS

3030 SMD LED, 140-150lm 150mA,6v

8, Sample

3-4 work day

9, Delivery

5-7 work days for 10000 sets

10, Angle

80x150 degree /60 degree/90 degree

11, Quality guarantee

If you receive defective items, please email us a picture of the defective part. We will send you replacement without extra charger, or offer refund.

12, Main market

Europe, South America,North America, Asia

Model No. Power(W) Angle(Degree) Lens size(mm) PCB size(mm) Circuit

SUN-LD3x12-3030-90x90

30 90x90 250x74

228x53x1.5

 6S6P

SUN-LD3x12-3030-60x140

30 60x140 120x110

89x89x1.5

 6S6P

SUN-LD4X12-3030-60X60

40 60x60 250x74

228x53x1.5

 6S8P

SUN-SL56W-3030-30/60/90

50 30/60/90

256.6x78.6

233x55x1.5

7S8P

SUN-SL64W-3030-30/60/90

50 30/60/90 236x70

219.1x53.54x1.5

 8S8P

SUN-SL72-3030-60/90

50 60/90 250x74

226x57.9x1.5

 8S9P


LENS Dimensions :
PH3030 LED Street Light Module 50W 160lm/w SMD 8 Series 9 Parallel PCB Circuit

Gasket size:
PH3030 LED Street Light Module 50W 160lm/w SMD 8 Series 9 Parallel PCB Circuit

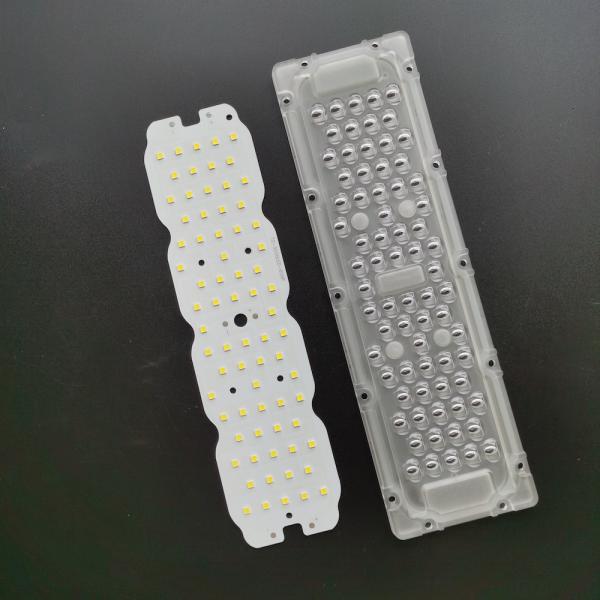

PCB size:

PH3030 LED Street Light Module 50W 160lm/w SMD 8 Series 9 Parallel PCB Circuit
