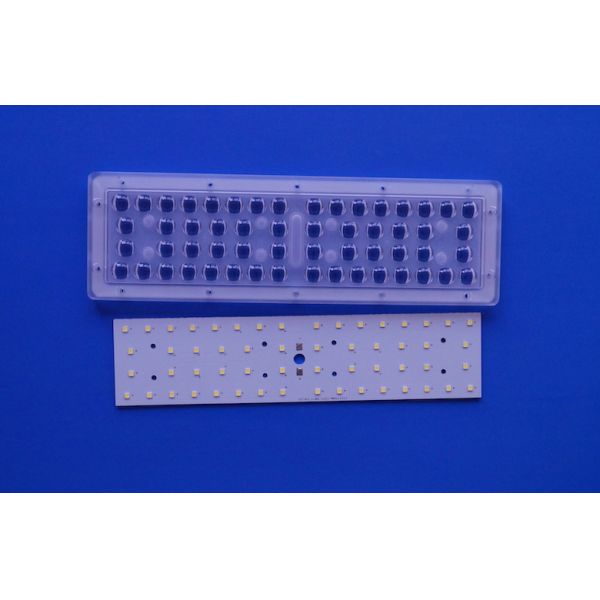

56 IN 1 30W 50W LED Street Light Module With SMD 3030 3535 LED PCB / LENS 90X120 Degree

Quick Detail:

Model No:SUN-SL56W-3030-90x120

Material: PC

Beam Angle : 90x120 degree

Lens size:256.6x78.6x7.1mm

Circuit: 7 series 8 parallel

Led chips: 3030SMD 1W LED

Lense array of 56 LEDs

Small footprint, high light output

Features :

1. This SKD 56W LED Array lens with PCB Module is best design power lamps like 56W,112W and so on .
2. It’s the lowest total cost solution ,they can replace existing Metal Halide or HPS bulbs, the old housings can be re-used. The total cost is significantly reduced compared with using new complete LED fixtures.
3. Industry-leading thermal management utilizing technology
4. Operating temperature range: from 35 Celsius degree to 70 Celsius degree.
5. The LED retrofit kits contain no any mercury or lead.
6. Does not produce UV rays that harm people’s eyes.
7. Directional light means no light pollution, dark sky compliance.
8. Optic lenses are available for projects that need smaller beam angles, like 30/60/90/30X70/60X90/145X70/80X155 degree etc.

Applications:

It is used in the street light ,high way led lamp,tunnel lamp ,square lamp,road lamp, city lighting, parking spot lamp, track lighting fixtures ,scenery area ,retail lighting and other applications where high luminous flux is desired.

Specifications:

Shipping and delivery time:

Competitive Advantage:

1). Using high quality for 3030SMD LED Series.

2). CE driver, very easy for repair/replacement
3). Higher lumen compared to similar models of others
4). Positive cooling technology
5). Reduce energy costs up to 90% compared to traditional lamps, reduce maintenance costs up to 90%, almost free of maintenance
6). Industry-leading thermal management utilizing technology
7). Top quality with warranty of 2 years warranty
8). LM80 testing reports available

56W LENS Dimensions and Beam Pattern:

Beam angle:
