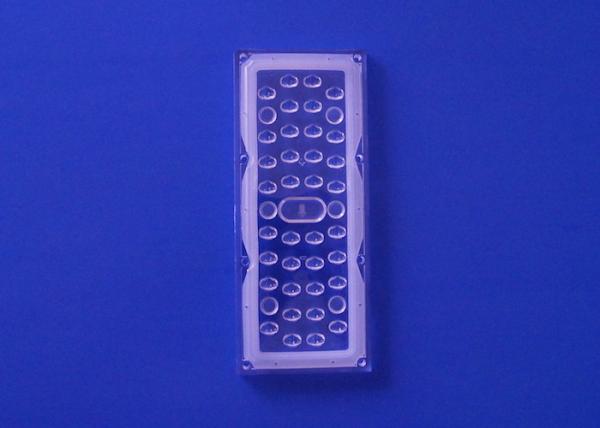

36 Led Lens Cover 173MM 3030 3535 SMD TYPE2-S 157X90 Degree Highway Module Type
36 Led Lens Cover 173MM 3030 3535 SMD TYPE2-S 157X90 Degree Highway Module Type
36 Led Lens Cover 173MM 3030 3535 SMD TYPE2-S 157X90 Degree Highway Module Type
36 Led Lens Cover 173MM 3030 3535 SMD TYPE2-S 157X90 Degree Highway Module Type
36 Led Lens Cover 173MM 3030 3535 SMD TYPE2-S 157X90 Degree Highway Module Type
36 Led Lens Cover 173MM 3030 3535 SMD TYPE2-S 157X90 Degree Highway Module Type
Specifications
Brand Name :
Sunshineopto
Model Number :
SUN-LD36H1-157X90-TPII-S-H
Certification :
SGS,ROHS
Place of Origin :
Shenzhen,China
MOQ :
1
Payment Terms :
T/T,PAYPAL,Western Union,Money Gram
Supply Ability :
5000pcs/months
Delivery Time :
3-4 working days
Packaging Details :
Cartons
Product name :
36 LED Lens 173MM 3030 3535 SMD TYPE2-S 157X90 degree Highway module Lens
Model No. :
SUN-LD36H1-157X90-TPII-S-H
Beam angle :
157X90 degree
LENS size :
173X71.4X5.2MM
Material :
Optical grade PC
LED CHIP :
3030 SMD LED, 140-150lm/w@ 150mA,6v
Tranmittance :
93%
Application :
High bay light/Street light/Highway light
Dense array of 30 LED :
Small footprint, high light output
Work temperature :
-40-120 degree
Structure :
Plano-convex
Description

36 LED Lens 173MM 3030 3535 SMD TYPE2-S 157X90 degree Highway module Lens

Quick Detail:

Model No: SUN-LD36H1-157X90-TPII-S-H
Material: PC
Beam Angle : 157X90 degree
Lens size: 173X71.4X5.2mm
Match LED: 3030SMD LED
Small footprint, high light output


Features :

  1. This SKD 36 LED Array lens with PCB Module is best design power lamps like 20-32W for per module.
  2. It’s the lowest total cost solution ,they can replace existing Metal Halide or HPS bulbs, the old housings can be re-used. The total cost is significantly reduced compared with using new complete LED fixtures.
  3. Industry-leading thermal management utilizing technology
  4. Operating temperature range: from 35 Celsius degree to 70 Celsius degree.
  5. The LED retrofit kits contain no any mercury or lead.
  6. Does not produce UV rays that harm people’s eyes.
  7. Directional light means no light pollution, dark sky compliance.
  8. Optic lenses are available for projects that need smaller beam angles, like 60 degree, 90 degree. TYPE2-M, TYPE3-S,TYPE3-M and so on.


Applications:

It is used in the street light ,high way led lamp,tunnel lamp ,square lamp,road lamp, city lighting, parking spot lamp, track lighting fixtures ,scenery area ,retail lighting and other applications where high luminous flux is desired.


Specifications:

1, Product Name

36 LED Lens 173MM 3030 3535 SMD TYPE2-S 157X90 degree Highway module Lens

2, Model No

SUN-LD36H1-157X90-TPII-S-H

3, Main parts

Array lens , silicon gasket+PCB

4, Lens Material

PC

5, Lens size

173X71.4X5.2MM

6, Transmittance

93%

7,LEDS

3030 SMD LED, 140-150lm@ 150mA,6v / XTE 3535 S3 LED

8, Sample

3-4 work day

9, Delivery

5-7 work days for 10000 sets

10, Angle

157X90 degree TYPE2-S

11, Quality guarantee

If you receive defective items, please email us a picture of the defective part. We will send you replacement without extra charger, or offer refund.

12, Main market

Europe, South America,North America, Asia



Shipping and delivery time:

DHL/UPS/TNT/FEDEX

4-5 working days

EMS

10-15 working days

HK Post Air Mail Register

15-18 working days

Trade Terms

FOB|EXW|CIF|CFR

Sample availability

YES

Delivery time

3-4 working days

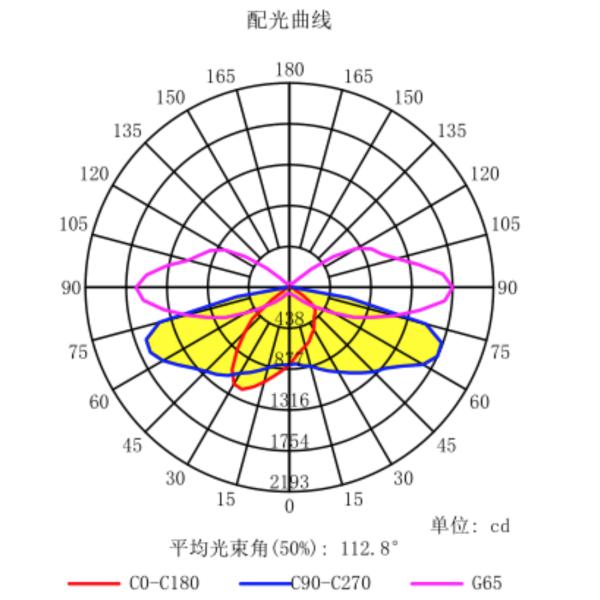

Light distribution:
36 Led Lens Cover 173MM 3030 3535 SMD TYPE2-S 157X90 Degree Highway Module Type

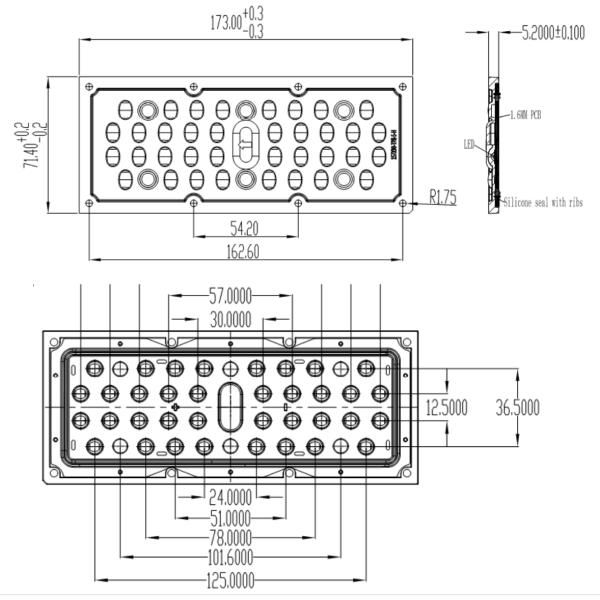

LENS Dimensions :
36 Led Lens Cover 173MM 3030 3535 SMD TYPE2-S 157X90 Degree Highway Module Type

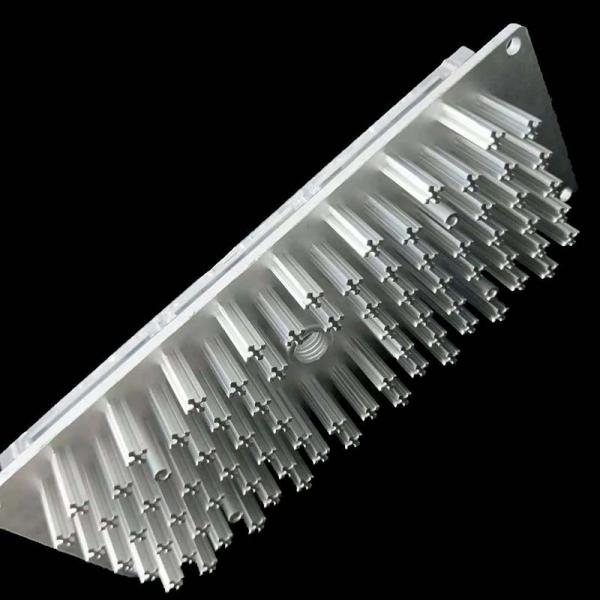

LED module with heat sink:


36 Led Lens Cover 173MM 3030 3535 SMD TYPE2-S 157X90 Degree Highway Module Type

36 Led Lens Cover 173MM 3030 3535 SMD TYPE2-S 157X90 Degree Highway Module Type

Array lens series:

36 Led Lens Cover 173MM 3030 3535 SMD TYPE2-S 157X90 Degree Highway Module Type
