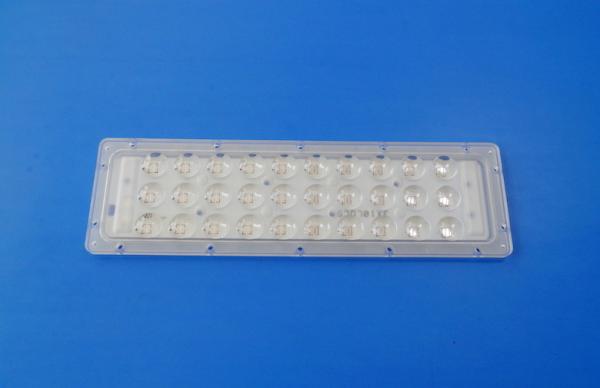

120 degree 3x10 3535 LED PCB board and array lens and Heat sink for led outside lights
120 degree 3x10 3535 LED PCB board and array lens and Heat sink for led outside lights
120 degree 3x10 3535 LED PCB board and array lens and Heat sink for led outside lights
120 degree 3x10 3535 LED PCB board and array lens and Heat sink for led outside lights
120 degree 3x10 3535 LED PCB board and array lens and Heat sink for led outside lights
120 degree 3x10 3535 LED PCB board and array lens and Heat sink for led outside lights
120 degree 3x10 3535 LED PCB board and array lens and Heat sink for led outside lights
120 degree 3x10 3535 LED PCB board and array lens and Heat sink for led outside lights
120 degree 3x10 3535 LED PCB board and array lens and Heat sink for led outside lights
120 degree 3x10 3535 LED PCB board and array lens and Heat sink for led outside lights
120 degree 3x10 3535 LED PCB board and array lens and Heat sink for led outside lights
120 degree 3x10 3535 LED PCB board and array lens and Heat sink for led outside lights
120 degree 3x10 3535 LED PCB board and array lens and Heat sink for led outside lights
120 degree 3x10 3535 LED PCB board and array lens and Heat sink for led outside lights
Specifications
Brand Name :
Sunshineopto
Model Number :
SUN-3X10CR120
Certification :
ROHS
Place of Origin :
Shenzhen,China
MOQ :
1
Payment Terms :
T/T,PAYPAL,Western Union,Money Gram
Supply Ability :
5000pcs/months
Delivery Time :
3-4 working days
Packaging Details :
1pc/bag 1kg
Product name :
120 degree 3x10 3535 LED PCB board and array lens and Heat sink for led outside lights
Model No. :
SUN-3X10CR120
Beam angle :
120 degree
LENS size :
250x74mm
PCB size :
228x53x1.5mm
Heat sink :
278x74x54mm , 8.0mm thickness
Circuit :
10 series 3 parallel
LED CHIP :
XTE/XPE/3535 LED
Material :
Optical grade PC
Description

120 degree 3x10 3535 LED PCB board and array lens and Heat sink for led outside lights

120 degree 3x10 3535 LED PCB board and array lens and Heat sink for led outside lights

120 degree 3x10 3535 LED PCB board and array lens and Heat sink for led outside lights

Quick Detail:

Model No:SUN-3x10CR120

Material: PC

Beam Angle : 120 degree

Lens size:250X74mm

Circuit: 10 series 3 parallel

Led chips:XTE/XPE/3535 LED

Lense array of 30 LEDs

Small footprint, high light output

Features :

  1. This SKD 3x10 LED Array lens with PCB Module is best choice to retrofit the old lamps 100W or design power lamps like 30W,60W,90W and so on .
  2. It’s the lowest total cost solution ,they can replace existing Metal Halide or HPS bulbs, the old housings can be re-used. The total cost is significantly reduced compared with using new complete LED fixtures.
  3. Industry-leading thermal management utilizing technology
  4. Operating temperature range: from 35 Celsius degree to 70 Celsius degree.
  5. The LED retrofit kits contain no any mercury or lead.
  6. Does not produce UV rays that harm people’s eyes.
  7. Directional light means no light pollution, dark sky compliance.
  8. Optic lenses are available for projects that need smaller beam angles, like 87x134 degree ,78x132 degree ,90 degree ,90x90 degree ,120 degree ,70x140 degree etc.

.

Applications:

It is used in the street light ,high way led lamp,tunnel lamp ,square lamp,road lamp, city lighting, parking spot lamp, track lighting fixtures ,scenery area ,retail lighting and other applications where high luminous flux is desired.

Specifications:

1, Product Name

120 degree 3x10 3535 LED PCB board and array lens and Heat sink for led outside lights

2, Model No

SUN-3x10CR120

3, Main parts

30W Array lens , silicon gasket

4, Lens Material

PC

5, Lens size

250X74mm

6, Transmittance

91%

7,LEDS

XTE/XPE/3535 LED

8, Sample

3-4 work day

9, Delivery

5-7 work days for 300 sets

10, Angle

120 degree

11, Quality guarantee

If you receive defective items, please email us a picture of the defective part. We will send you replacement without extra charger, or offer refund.

12, Main market

Europe, South America,North America, Asia

Shipping and delivery time:

DHL/UPS/TNT/FEDEX

4-5 working days

EMS

10-15 working days

HK Post Air Mail Register

15-18 working days

Trade Terms

FOB|EXW|CIF|CFR

Sample availability

YES

Delivery time

3-4 working days

Competitive Advantage:

1). Using high quality for Edison,P4

2). CE driver, very easy for repair/replacement
3). Various choice : AC 100-240V Input voltage Waterproof or non-waterproof
4). Higher lumen compared to similar models of others
5). Positive cooling technology
6). Reduce energy costs up to 90% compared to traditional lamps, reduce maintenance costs up to 90%, almost free of maintenance
7). Industry-leading thermal management utilizing technology
8). Top quality with warranty of 2 years warranty
9). LM80 testing reports available

Beam pattern of 10x3 LENS :

120 degree 3x10 3535 LED PCB board and array lens and Heat sink for led outside lights

Any request or question , please freely contact me by :

Yuan Hu

Sunshine Opto-Electronics Enterprise

www.sunshineopto.com
EMAIL :marketing@sunshineopto.com
Skype : yuanhelen56

Whatsapp:+86-18665803783
TradeManager ID: cn1001873994
Phone : +86-755-84565811

Mobile: +86-18665803783
