Specifications
Brand Name :
Sunshineopto
Model Number :
SUN-D100-28H1-100X60-TPIV-S
Certification :
SGS,ROHS
Place of Origin :
Shenzhen,China
MOQ :
1
Payment Terms :
T/T,PAYPAL,Western Union,Money Gram
Supply Ability :
5000pcs/months
Delivery Time :
3-4 working days

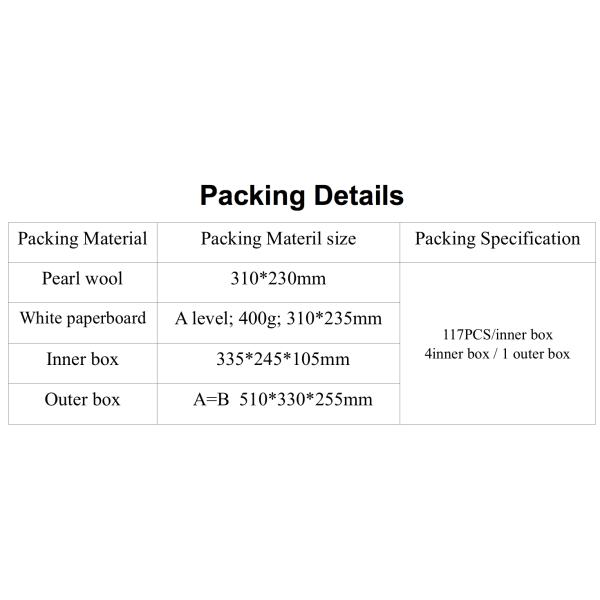

Packaging Details :
Cartons
Product name :
3535 SMD Array LED lens 28 in 1 square module lens for 30w - 50w
Model No. :
SUN-D100-28H1-100X60-TPIV-S
Beam angle :
100X60 degree
LENS size :
100x100x8.5mm
Material :
Optical grade PC
LED CHIP :
XTE2 XPG3 3535 SMD LED
Tranmittance :
91%
Application :
High bay light/Street light/Square lighting/Projection lam and so on
PCB size :
76x76x1.5mm
Circuit for PCB board :
14 series 2 parallel
Description

3535 SMD Array LED lens 28 in 1 square module lens for 30w - 50w

Quick Detail:

Model No:SUN-D100-28H1-100X60-TPIV-S
Material: PC
Beam Angle : 100X60 degree/ TPYE IV -S
Lens size:100X100X8.5mm
PCB size:76X76X1.5mm
Circuit:14 series 2 parallel
Match LED: 3535 SMD LED/ 3030SMD LED
Small footprint, high light output


Features :

  1. This SKD 28 LED Array lens with PCB Module is best choice to retrofit the old lamps 100W or design power lamps like 28-50W and so on .
  2. It’s the lowest total cost solution ,they can replace existing Metal Halide or HPS bulbs, the old housings can be re-used. The total cost is significantly reduced compared with using new complete LED fixtures.
  3. Industry-leading thermal management utilizing technology
  4. Operating temperature range: from 35 Celsius degree to 70 Celsius degree.
  5. The LED retrofit kits contain no any mercury or lead.
  6. Does not produce UV rays that harm people’s eyes.
  7. Directional light means no light pollution, dark sky compliance.
  8. Optic lenses are available for projects that need smaller beam angles, like 60 degree, 90 degree, 150 degree, 117x52 degree, 100x1400 degree, 181x51 degree.


Applications:

It is used in the street light ,high way led lamp,tunnel lamp ,square lamp,road lamp, city lighting, parking spot lamp, track lighting fixtures ,scenery area ,retail lighting and other applications where high luminous flux is desired.


Specifications:

1, Product Name

3535 SMD Array LED lens 28 in 1 square module lens for 30w - 50w

2, Model No

SUN-D100-28H1-100X60-TPIV-S

3, Main parts

28 Array lens , silicon gasket+PCB+ XTE/XPG 3535 SMD LED

4, Lens Material

PC

5, Lens size

100X100X8.5MM

6, Transmittance

91%

7,LEDS

3535 SMD LED 3V, 1-5W

8, Sample

3-4 work day

9, Delivery

5-7 work days for 10000 sets

10, Angle

100X60 degree

11, Quality guarantee

If you receive defective items, please email us a picture of the defective part. We will send you replacement without extra charger, or offer refund.

12, Main market

Europe, South America,North America, Asia



Shipping and delivery time:

DHL/UPS/TNT/FEDEX

4-5 working days

EMS

10-15 working days

HK Post Air Mail Register

15-18 working days

Trade Terms

FOB|EXW|CIF|CFR

Sample availability

YES

Delivery time

3-4 working days

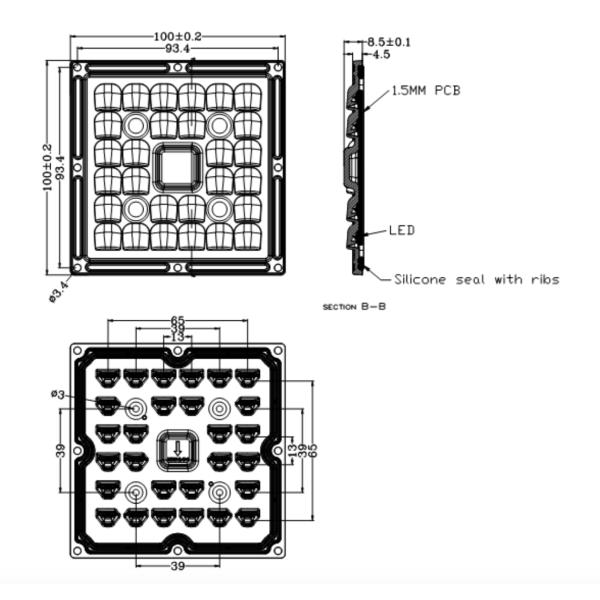

LENS Dimensions :

3535 SMD LED Lens Array 28 In 1 Square Module 100X60 Degree Beam Angle For 30w-50w

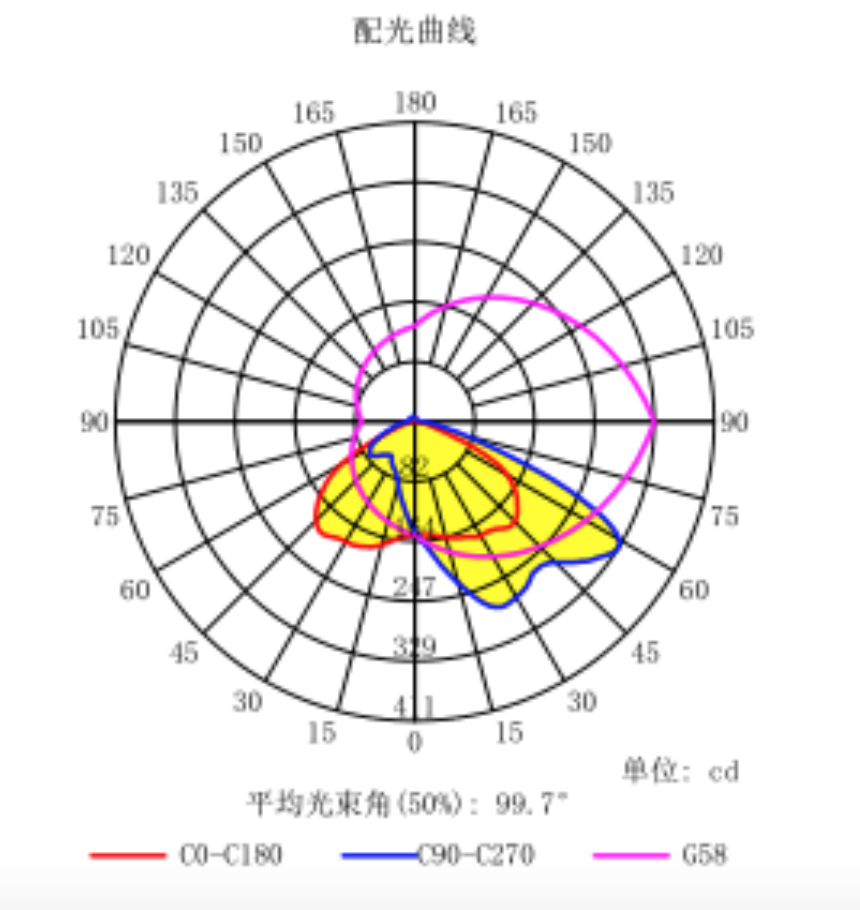

Beam pattern:

3535 SMD LED Lens Array 28 In 1 Square Module 100X60 Degree Beam Angle For 30w-50w


3535 SMD LED Lens Array 28 In 1 Square Module 100X60 Degree Beam Angle For 30w-50w

Rerated of lens:

3535 SMD LED Lens Array 28 In 1 Square Module 100X60 Degree Beam Angle For 30w-50w

3535 SMD LED Lens Array 28 In 1 Square Module 100X60 Degree Beam Angle For 30w-50w

Application:

3535 SMD LED Lens Array 28 In 1 Square Module 100X60 Degree Beam Angle For 30w-50w

3535 SMD LED Lens Array 28 In 1 Square Module 100X60 Degree Beam Angle For 30w-50w
