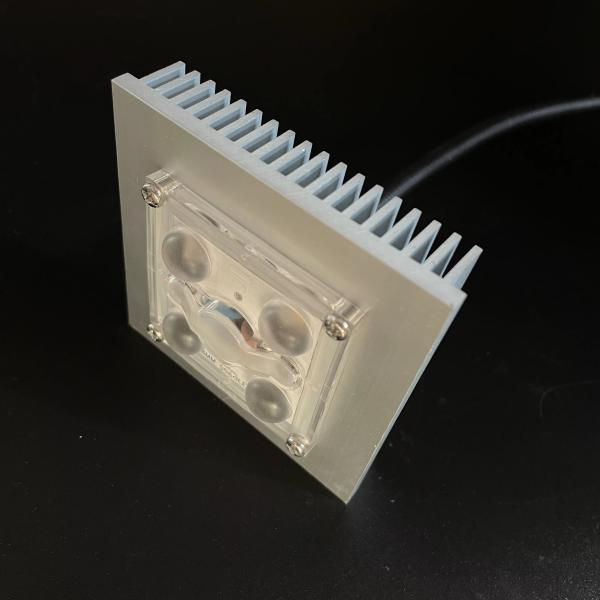

Waterproof 10W 15W Mini 50*50mm SMD 5050 LED Street Light Module 12V 24V for Street Light and Garden Light
Waterproof 10W 15W Mini 50*50mm SMD 5050 LED Street Light Module 12V 24V for Street Light and Garden Light
Waterproof 10W 15W Mini 50*50mm SMD 5050 LED Street Light Module 12V 24V for Street Light and Garden Light
Waterproof 10W 15W Mini 50*50mm SMD 5050 LED Street Light Module 12V 24V for Street Light and Garden Light
Waterproof 10W 15W Mini 50*50mm SMD 5050 LED Street Light Module 12V 24V for Street Light and Garden Light
Waterproof 10W 15W Mini 50*50mm SMD 5050 LED Street Light Module 12V 24V for Street Light and Garden Light
Waterproof 10W 15W Mini 50*50mm SMD 5050 LED Street Light Module 12V 24V for Street Light and Garden Light
Waterproof 10W 15W Mini 50*50mm SMD 5050 LED Street Light Module 12V 24V for Street Light and Garden Light
Specifications
Brand Name :
SunshineOpto
Model Number :
SUN-D5050-4H1-B waterproof
Place of Origin :
China
MOQ :
1000
Price :
negotive
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
1000PCS/week
Delivery Time :
according to the quantity
Packaging Details :
cartons
Heat sink :
L75*W75*T15mm
Lens size :
50X50mm
PCB Circuit :
2S2P or 4P1S, 12V/24VDC for choose
Lens angle :
60/90/150/150x75 degree
Description

Waterproof 10W 15W Mini 50*50mm SMD 5050 LED Light Replacement Retrofit Components 12V 24V LED Module for Street Light and Garden Light

Product description:

Features:

1, We use high quality brand 24V/6V 5050 SMD leds, one module support 10-15W power.

2, The PCB Circuit can design as 2 series or 1 series to meet 12V or 24V voltage requirements.

3, High Luminous flux 150-170lm/W but cheap price .

4, High transmittance PC lens with 60/90/150/150x75 degree beam angle for choose.
5, Designed for square application with easy installation process,
Suitable for retrofit projects and creating circular lights

Quick Details:

Model SUN-D5050-4H1-B waterproof
Power 10W
Input Voltage 24V DC(If you need 12V DC, please contact us)
Current 400mA
Leds 4PCS 5050 LEDS
CCT & CRI 3000K/4000K/5000K/5700K/6500K Ra>70
Luminous efficiency 160lm/W
Luminous flux 1600lm
Material Heat sink: Aluminum / Lens: PC/ PCB: Aluminum
IP level IP 66
Dimensions L75*W75*T15mm

Dimensions & drawing:

Waterproof 10W 15W Mini 50*50mm SMD 5050 LED Street Light Module 12V 24V for Street Light and Garden Light​

Lens beam angle:

Waterproof 10W 15W Mini 50*50mm SMD 5050 LED Street Light Module 12V 24V for Street Light and Garden Light

Details:

Waterproof 10W 15W Mini 50*50mm SMD 5050 LED Street Light Module 12V 24V for Street Light and Garden Light

Waterproof 10W 15W Mini 50*50mm SMD 5050 LED Street Light Module 12V 24V for Street Light and Garden Light

Application:

Waterproof 10W 15W Mini 50*50mm SMD 5050 LED Street Light Module 12V 24V for Street Light and Garden Light
