Hot sale photovoltaic poly-crystalline silicon solar cell 6inch with 3BB / 4BB in stock
Hot sale photovoltaic poly-crystalline silicon solar cell 6inch with 3BB / 4BB in stock
Specifications
Place of Origin :
Taiwan
Brand Name :
NSP, Motec
Model Number :
GS-P6inch
MOQ :
1200pcs
Price :
Get Latest Price
Packaging Details :
Original Package, 100pcs in one boxes, 10boxes in one carton.
Delivery Time :
1-2days
Payment Terms :
TT, Western Union, Money Gram
Supply Ability :
3000000/month
Size :
156*156mm
Number of Cells :
1
Max. Power :
4.5w
Material :
Polycrystalline Silicon
Name :
Hot sale photovoltaic poly-crystalline silicon solar cell 6inch with 3BB / 4BB in stock
Busbar :
3BB / 4BB
Wafer Thickness :
200um+/-30um
Description

Hot sale photovoltaic poly-crystalline silicon solar cell 6inch with 3BB / 4BB in stock

Physical characteristics:

Dimension 156mm X 156 mm ±0.5mm
Wafer Thickness 200um ±30um
Front(-)

Four 1.1mm wide bus bars(silver) with distance 39mm,

Acid texturized surface with blue silicon nitride AR coating.
Back(+) 2.4mm wide silver/aluminum soldering pads, aluminum back surface field.

Typical electrical characteristics:

Efficiency code 1720 1740 1760 1780 1820 1840
Efficiency (min) (%) 17.2 17.4 17.6 17.8 18.2 18.4
Pmax (W) 4.186 4.234 4.283 4.332 4.429 4.478
Voc (V) 0.631 0.632 0.634 0.636 0.640 0.642
Isc (A) 8.446 8.485 8.523 8.573 8.660 8.700
Vmp (V) 0.525 0.527 0.529 0.531 0.535 0.537
Imp (A) 7.973 8.035 8.097 8.160 8.280 8.340

Data under standard testing conditions(STC): 1,000W/m2, AM1.5, 25℃, Pmax: Positive power tolerance.

Typical teperature coefficients:

Voltage -2.08 mV/K
Current +4.58 mA/K
Power -0.40 %/K

Conductor patterns:

Hot sale photovoltaic poly-crystalline silicon solar cell 6inch with 3BB / 4BB in stock

Typical I-V curve:

Hot sale photovoltaic poly-crystalline silicon solar cell 6inch with 3BB / 4BB in stock

Package:

Typical package for one carton contains 1,200 cells. The cells are sealed in cell box every 100 pcs.

Gross weight per unit carton shall be around 16.4kg.

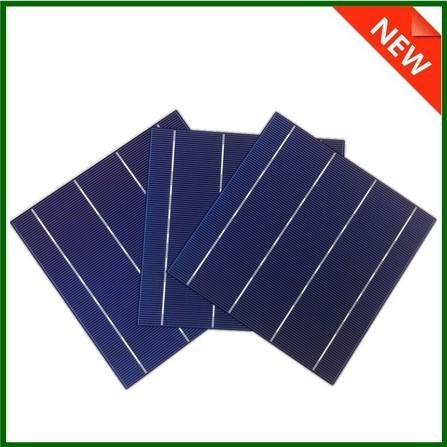

Cell Picture:

Hot sale photovoltaic poly-crystalline silicon solar cell 6inch with 3BB / 4BB in stockHot sale photovoltaic poly-crystalline silicon solar cell 6inch with 3BB / 4BB in stockHot sale photovoltaic poly-crystalline silicon solar cell 6inch with 3BB / 4BB in stockHot sale photovoltaic poly-crystalline silicon solar cell 6inch with 3BB / 4BB in stockHot sale photovoltaic poly-crystalline silicon solar cell 6inch with 3BB / 4BB in stock

How to cell works?

Hot sale photovoltaic poly-crystalline silicon solar cell 6inch with 3BB / 4BB in stock

Hot sale photovoltaic poly-crystalline silicon solar cell 6inch with 3BB / 4BB in stock

Our partner:

Hot sale photovoltaic poly-crystalline silicon solar cell 6inch with 3BB / 4BB in stock

Shipping:

1. Shipment shall be made only after PAYMENT is received.

2. Please do inform us your DETAILED ADDRESS AND CONTACT INFOMATION before shipment.

3. Shipment shall be made in THREE WORKING DAYS.

2. Shipment shall be via EMS, DHL, Fedex,UPS etc.

Hot sale photovoltaic poly-crystalline silicon solar cell 6inch with 3BB / 4BB in stock
