High Eff. 6inch mono-crystalline silicon solar cells with 3BB / 4BB in stock within 3days delivery
High Eff. 6inch mono-crystalline silicon solar cells with 3BB / 4BB in stock within 3days delivery
Specifications
Place of Origin :
Taiwan
Brand Name :
NSP, Motec
Model Number :
GS-M6inch
MOQ :
1200pcs
Price :
Get Latest Price
Packaging Details :
Original Package, 100pcs in one boxes, 10boxes in one carton.
Delivery Time :
1-2days
Payment Terms :
TT, Western Union, Money Gram
Supply Ability :
3000000/month
Size :
156*156mm
Number of Cells :
1
Max. Power :
4.7w
Material :
Monocrystalline Silicon
Name :
High Eff. 6inch mono-crystalline silicon solar cells with 3BB / 4BB in stock within 3days delivery
Bus Bar :
3BB / 4BB
Wafer Thickness :
180/200 ± 20μm
Description

High Eff. 6inch mono-crystalline silicon solar cells with 3BB / 4BB in stock within 3days delivery

Product Specification

6'' Mono-Crystalline Silicon Solar Cell (3BB)
Physical Characteristics
Dimensions 156x156 mm
Diagonal 220 mm
Cell Thickness 180/200 ± 20μm
Front Anisotropically texturized surface and dark silicon nitride anti-reflection coatings
3x1.5mm silver busbar
Back Full-surface aluminum back-surface field
3x2.1mm (silver/aluminum) discontinuous soldering pads
Electrical Characteristics
Efficiency code

Efficiency

Eff(%)

Power

Pmax(W)

Max.Power Current

Ipm(A)

Short Circuit Current

Isc(A)

Max.Power Voltage

Vpm(V)

Open Circuit Voltage

Voc(V)
1940 19.40 4.636 8.490 9.029 0.546 0.645
1930 19.30 4.612 8.462 9.001 0.545 0.645
1920 19.20 4.588 8.434 8.976 0.544 0.644
1910 19.10 4.564 8.405 8.953 0.543 0.643
1900 19.00 4.540 8.376 8.925 0.542 0.642
1890 18.90 4.516 8.332 8.897 0.542 0.642
1880 18.80 4.492 8.304 8.865 0.541 0.641
1860 18.60 4.444 8.231 8.842 0.540 0.640
1840 18.40 4.397 8.157 8.814 0.539 0.638

*Data under standard testing conditions (STC) : 1,000W/M² . AM1.5, 25°C.

Conductor Patterns

High Eff. 6inch mono-crystalline silicon solar cells with 3BB / 4BB in stock within 3days delivery

Typical I-V Curve

High Eff. 6inch mono-crystalline silicon solar cells with 3BB / 4BB in stock within 3days delivery

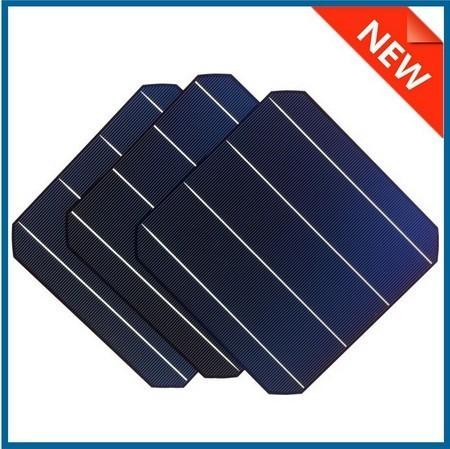

Cell Picture

High Eff. 6inch mono-crystalline silicon solar cells with 3BB / 4BB in stock within 3days deliveryHigh Eff. 6inch mono-crystalline silicon solar cells with 3BB / 4BB in stock within 3days deliveryHigh Eff. 6inch mono-crystalline silicon solar cells with 3BB / 4BB in stock within 3days deliveryHigh Eff. 6inch mono-crystalline silicon solar cells with 3BB / 4BB in stock within 3days deliveryHigh Eff. 6inch mono-crystalline silicon solar cells with 3BB / 4BB in stock within 3days delivery

How Solar Cell Works?

High Eff. 6inch mono-crystalline silicon solar cells with 3BB / 4BB in stock within 3days delivery

High Eff. 6inch mono-crystalline silicon solar cells with 3BB / 4BB in stock within 3days delivery

Our Parterner

High Eff. 6inch mono-crystalline silicon solar cells with 3BB / 4BB in stock within 3days delivery

Products Features

  • High conversion efficiencies resulting in superior power output performance.
  • Out standing power output even in low light or high temperature conditons.
  • Optimized design for ease of soldering and lamination.
  • Long-term stability, reliability and performance.
  • Low breakage rate.

Production and Quality Control

  • Precision cell efficiency sorting procedures.
  • Stringent criteria for color uniformity and appearance.
  • Reverse current and shunt resistance screening.
  • REACH-SVHC test passed, ISO9001, ISO14001 and OHSAS 18001 certificated.
  • Calibrated against Fraunhofer ISE

Why do you buy solar cell from us?

  • We response the inquiry within 6 hours.
  • We provide solar cell with the latest output and premium products at good price with large quantity per month.
  • We have engaged in photovoltaic solar energy since 1998, our teams are able to sharing you with the latest PV events and our proposal on the tendency.
  • The latest samples are always available in our storage, which can be delivered at any time.
  • We are professional at the packagingas per various transportation condition, that would be help you to reduce the breakage.
  • We guarantee within 3 working daysdelivery after we receive your payment.

FREQUENTLY ASKED QUESTIONS

  • Could you avoid the EU's anti-dumping and countervailing duties? We can provide you Taiwan CO.
  • What is your Shipment terms? DHL, FEDEX, UPS, Air transportation,Sea transportation.
  • What is your payment terms? T/T ,Western Union , Money Gram.
  • What is the delivery time? 2 days for solar cell Taiwan and China brand around 100,000pcs; 5 days for Taiwan OEM cell 100,000pcs.

Shipping

1. Shipment shall be made only after Payment is received.

2. Please do inform us your DETAILED ADDRESS before shipment.

3. Shipment shall be made in three working days.

4. Shipment shall be via EMS, DHL, Fedex,UPS etc.

High Eff. 6inch mono-crystalline silicon solar cells with 3BB / 4BB in stock within 3days delivery
