Qaulified 156mm*156mm poly solar cells with 3BB / 4BB in stock for cheap sale
Qaulified 156mm*156mm poly solar cells with 3BB / 4BB in stock for cheap sale
Specifications
Place of Origin :
Taiwan
Brand Name :
NSP, Motec
Model Number :
GS-P6inch
MOQ :
1200pcs
Price :
Get Latest Price
Packaging Details :
Original Package, 100pcs in one boxes, 10boxes in one carton.
Delivery Time :
1-2days
Payment Terms :
TT, Western Union, Money Gram
Supply Ability :
3000000/month
Size :
156*156mm
Number of Cells :
1
Max. Power :
4.5w
Material :
Polycrystalline Silicon
Name :
Qaulified 156mm*156mm poly solar cells with 3BB / 4BB in stock for cheap sale
Busbar :
3BB / 4BB
Wafer Thickness :
200um+/-30um
Description

Qaulified 156mm*156mm poly solar cells with 3BB / 4BB in stock for cheap sale

Physical characteristics:

Dimension 156mm X 156 mm ±0.5mm
Wafer Thickness 200um ±30um
Front(-)

Four 1.1mm wide bus bars(silver) with distance 39mm,

Acid texturized surface with blue silicon nitride AR coating.
Back(+) 2.4mm wide silver/aluminum soldering pads, aluminum back surface field.

Typical electrical characteristics:

Efficiency code 1720 1740 1760 1780 1820 1840
Efficiency (min) (%) 17.2 17.4 17.6 17.8 18.2 18.4
Pmax (W) 4.186 4.234 4.283 4.332 4.429 4.478
Voc (V) 0.631 0.632 0.634 0.636 0.640 0.642
Isc (A) 8.446 8.485 8.523 8.573 8.660 8.700
Vmp (V) 0.525 0.527 0.529 0.531 0.535 0.537
Imp (A) 7.973 8.035 8.097 8.160 8.280 8.340

Data under standard testing conditions(STC): 1,000W/m2, AM1.5, 25℃, Pmax: Positive power tolerance.

Typical teperature coefficients:

Voltage -2.08 mV/K
Current +4.58 mA/K
Power -0.40 %/K

Conductor patterns:

Qaulified 156mm*156mm poly solar cells with 3BB / 4BB in stock for cheap sale

Typical I-V curve:

Qaulified 156mm*156mm poly solar cells with 3BB / 4BB in stock for cheap sale

Package:

Typical package for one carton contains 1,200 cells. The cells are sealed in cell box every 100 pcs.

Gross weight per unit carton shall be around 16.4kg.

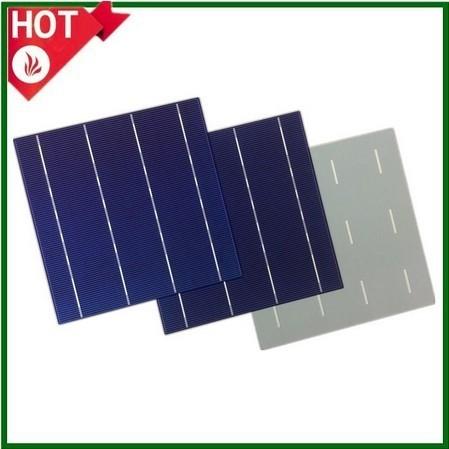

Cell Picture:

Qaulified 156mm*156mm poly solar cells with 3BB / 4BB in stock for cheap saleQaulified 156mm*156mm poly solar cells with 3BB / 4BB in stock for cheap saleQaulified 156mm*156mm poly solar cells with 3BB / 4BB in stock for cheap saleQaulified 156mm*156mm poly solar cells with 3BB / 4BB in stock for cheap saleQaulified 156mm*156mm poly solar cells with 3BB / 4BB in stock for cheap sale

How to cell works?

Qaulified 156mm*156mm poly solar cells with 3BB / 4BB in stock for cheap sale

Qaulified 156mm*156mm poly solar cells with 3BB / 4BB in stock for cheap sale

Our partner:

Qaulified 156mm*156mm poly solar cells with 3BB / 4BB in stock for cheap sale

Shipping:

1. Shipment shall be made only after PAYMENT is received.

2. Please do inform us your DETAILED ADDRESS AND CONTACT INFOMATION before shipment.

3. Shipment shall be made in THREE WORKING DAYS.

2. Shipment shall be via EMS, DHL, Fedex,UPS etc.

Qaulified 156mm*156mm poly solar cells with 3BB / 4BB in stock for cheap sale
