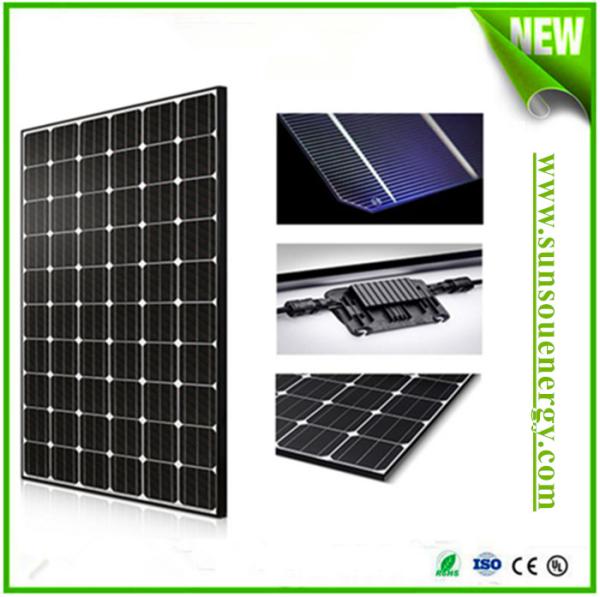

250w mono solar panels with competitive price, combined by 60pcs mono solar cells solar panel for hot sale
250w mono solar panels with competitive price, combined by 60pcs mono solar cells solar panel for hot sale
Specifications
Place of Origin :
China
Model Number :
GS-M250W
Price :
Get Latest Price
Packaging Details :
1box/pallet
Delivery Time :
10 days
Payment Terms :
TT, Western Union, Money Gram
Supply Ability :
30000/month
Brand Name :
Sunsou
MOQ :
1*20GP
Size :
1640*992*45mm
Number of Cells :
60pcs
Max. Power :
250w
Material :
Monocrystalline Silicon
Name :
250w mono solar panels with competitive price, combined by 60pcs mono solar cells solar panel for hot sale
Warranty :
25 years output power guarantee
Backsheet :
Block Humidity and Oxy Effectively
Junction box :
IP67 Rated
Glass :
3.2mm Tempered Low Iron
Frame :
Aluminium Alloy
Type of Connector :
Compatiable Type MC4
Output Cables :
φ=4mm², L=900mm
Description

250w mono solar panels with competitive price, combined by 60pcs mono solar cells solar panel for hot sale

Features:

l= Nominal 24V DC for standard output.

l= High efficiency.

l= Outstanding low-light performance.

l= High transmission tempered glass.

l= Rugged design to withstands high wind pressure and snow load, easy installation.

l= Aesthetic appearance.

l= Design to meet unique demand of customer.

l= 25 year module output warranty.


Solar cells applications:
1. Any large or small on-grid or off-grid solar power stations.
2. Commercial and industrial building roof-top systems.
4. Any commercial or industrial ground mount systems.
5. Other industrial or commercial applications.


Solar panel quality and warranty:
1. Peak power of single module in guaranteed in +-3%power tolerance.
2. Average power of modules in single order is guaranteed not less than the peak power.
3. Rigorous quality control meets the highest international standard.
5. 7 years limited warranty on material and workmanship.
6.10 years and 20 years limited warranty for minimum power output.

250w mono solar panels with competitive price, combined by 60pcs mono solar cells solar panel for hot sale

Solar panel specification:

Nominal power Pm (Wp) 250
Open circuit voltage Voc (V) 37.92
Short-circuit current Isc (A) 8.81
Voltage at max power Vmp (V) 31.61
Current at max power Imp (A) 7.91
Module efficiency (%) 15.37
Cells efficiency (%) 17.29
System Voltage (V) 1000
Temp. coefficient Voc (%; °C) -0.36
Temp. coefficient Isc (%; °C) 0.06
Temp. coefficient Pm (%; °C) -0.36
Operating temp. (°C) - 40 to +85
NOCT (°C) 45±2

Junction box 3 bypass diodes, IP67
Wire cross section (Ø, mm2) 4
Cable lenght (mm) 900
Connector type MC4/MC4 compatible
Dimensions (L x W x H, mm) 1640 x 992 x 40
Weight (kg) 18.5
Cell dimensions (mm) 152.4
No of cells / assembly 60 / 6 x 10
Type of cells Mono-crystalline
Hail resistance Max. Ø 28 mm at 23 m/s
Wind load 2400Pa / 244kg / m²
Mechanical load 6000Pa / 612kg / m²

Project show:

250w mono solar panels with competitive price, combined by 60pcs mono solar cells solar panel for hot sale

250w mono solar panels with competitive price, combined by 60pcs mono solar cells solar panel for hot sale

Payment & Shipping:

Payment Terms T/T EXW 50% T/T in advance, paid the balance before shipment
FOB
CFR(C&F)
CIF
West Union Amount lower than 5000usd
Money Gram
Delivery time 10 working days after receiving payment for one container

>: Shipping will be made via EMS, DHL, Fedex, UPS etc.
250w mono solar panels with competitive price, combined by 60pcs mono solar cells solar panel for hot sale
