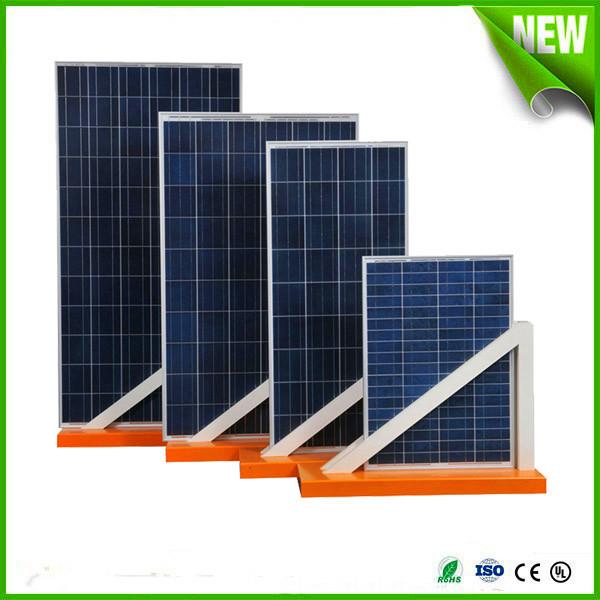

250w poly solar panel with MC4 connector, solar panel poly-crystalline price, poly solar panel for solar system
250w poly solar panel with MC4 connector, solar panel poly-crystalline price, poly solar panel for solar system
Specifications
Place of Origin :
China
Brand Name :
Sunsou
Model Number :
GS-P250W
MOQ :
1*20GP
Price :
Get Latest Price
Packaging Details :
1box/pallet
Delivery Time :
10 days
Payment Terms :
TT, Western Union, Money Gram
Supply Ability :
30000/month
Size :
1640x992x40mm
Number of Cells :
60pcs
Max. Power :
250w
Material :
Polycrystalline Silicon
Name :
250w poly solar panel with MC4 connector, solar panel poly-crystalline price, poly solar panel for solar system
Warranty :
25 years output power guarantee
Backsheet :
Block Humidity and Oxy Effectively
Junction box :
IP67 Rated
Glass :
3.2mm Tempered Low Iron
Frame :
Aluminium Alloy
Weight :
19.5KG
Test Conditions STC :
Air Mass AM 1.5, Irradiance 1000W/m²
Description

250w poly solar panel with MC4 connector, solar panel poly-crystalline price, poly solar panel for solar system

Features:
A grade mono and poly solar panel 250W
a) All the solar panes are +3% tolerance output power
b) Warranty: 90% of 12 years, 80% of 25 years
c) Package: Carton box with Polyfoam or customized package
Weight: 19.5KG
Cell type: 60pcs 156x156mm solar cell with 3 busbar or 2 busbar
Solar cell line: 6x10
Use for solar home system 1000w,2000w,3000w,4000w,5000w, and for industry use, commercial use.

Specifications:

Solar Cells Polycrystalline Silicon Solar Cells156*156mm
Number of Cells 60 pieces
Dimension (mm) 1650*990*40mm
Weight (KG) 19.5

Electrical Characteristics:

Values at Standard Test Conditions STC (Air Mass AM 1.5, Irradiance 1000W/m², Cell Temperature 25ºC)

Model GS-P220w GS-P230w GS-P240w GS-P250w
Max Power Pm(W) 220 230 240 250
Max Power Voltage Vmp(V) 30 30.2 30.4 30.65
Max Power Current Imp(A) 7.34 7.62 7.9 8.17
Open Circuit Voltage Voc(V) 36 36.8 37.32 37.8
Short Circuit Current Isc(A) 7.84 8.15 8.44 8.74
Cell Dimension (mm) 156*156 156*156 156*156 156*156
Module Dimension (mm) 1650*990*40 1650*990*40 1650*990*40 1650*990*40
Module Efficiency (%) 13.47 14.1 14.7 15.3
Maximum System Voltage (V) DC1000 DC 1000 DC 1000 DC 1000
Power Tolerance (%) 0~+3 0~+3 0~+3 0~+3
Series Fuse Rating (A) 15 15 15 15

Temperature Coefficient:

NOCT (ºC) 47 ± 2
Temperature Coefficient of Pm (%/ºC) -0.45 ± 0.05
Temperature Coefficient of Isc (%/ºC) 0.05 ± 0.01
Temperature Coefficient of Voc (%/ºC) -0.35 ± 0.02
250w poly solar panel with MC4 connector, solar panel poly-crystalline price, poly solar panel for solar system
250w poly solar panel with MC4 connector, solar panel poly-crystalline price, poly solar panel for solar system
250w poly solar panel with MC4 connector, solar panel poly-crystalline price, poly solar panel for solar system
250w poly solar panel with MC4 connector, solar panel poly-crystalline price, poly solar panel for solar system
250w poly solar panel with MC4 connector, solar panel poly-crystalline price, poly solar panel for solar system

Shipping:

250w poly solar panel with MC4 connector, solar panel poly-crystalline price, poly solar panel for solar system

FAQ:

•What is the warranty of solar panels?

--- 5-year warranty on material and workmanship,90% power output in 10 years,20% in 25 years

•Can you quote me the best price?

---We need more information about your demands, such as the power/material/Qty/etc, then We can suggest the suitable type and quote the best price for you.

•How do I get solar panel from Sunsou Energy and Where can I get further information?

--- Please visit our website and send us email or call us.
