10w to 200w flexible solar panel with MC4 connector, customized solar panel semi flexible for hot sale
10w to 200w flexible solar panel with MC4 connector, customized solar panel semi flexible for hot sale
Specifications
Place of Origin :
China
Brand Name :
Sunsou
Model Number :
GS-F180W
MOQ :
100pcs
Price :
Get Latest Price
Packaging Details :
Cartons and Pallets, Standard Export Packing
Delivery Time :
7 days after receipt the bank slip
Payment Terms :
TT, Western Union, Money Gram
Supply Ability :
100000W/Month
Size :
1305*796*3.0mm
Number of Cells :
60pcs
Max. Power :
180w
Material :
Monocrystalline Silicon
Solar Cell Efficiency :
Around 22.00%
Maximum Power Voltage (Vmp) :
32.92V
Maximum Power Current (Imp) :
5.48A
Backsheet :
TPT
Lifespan :
Over 8 Years
NOCT :
45±2ºC
Description

10w to 200w flexible solar panel with MC4 connector, customized solar panel semi flexible for hot sale

Main Features:
1. Semi flexible: Bending angle up to 30 -90 degrees
2. Durable with TPT backsheet, no glass
3. Light weight for easy carrying
4. The thickness only 3mm, easy joint to your yacht or RV roof
5. Rounding corners to prevent hand from being scratched
6. High efficiency mono crystalline solar panel

Model number GS-F180W
Peak power / Pm(W) 180±3%
Open circuit voltage / Voc(V) 39.8
Max. power voltage / Vmp(V) 32.9
Max. power current / Imp(A) 5.48
Short circuit current / Isc(A) 5.85
Solar cells efficiency around 22.00%
Solar cells origin /
Dimensions(L*W*T) / Weight(kgs) 1305*796*3.0mm(NOT including the thickness of junction box)
Solar cell / No. of cells and connections 125 solar cells / 60-cell in series.
Encapsulation PET laminated.
Frame NO
Junction box protection degree ≥IP65; on the back side of the panel.
Standard Testing Conditions Irradiance:1000W/m2,
Cell temperature:25ºC, AM:1.5(air mass).
Max. series fuse rating (A) 8A
Max. system voltage (V) 1000Vdc
Application Class Class A
NOCT 45±2ºC
Operating temperature range -40ºC- +85ºC
Power temperature coefficient -0.45%/ºC
Current temperature coefficient 0.08%/ºC
Voltage temperature coefficient -0.37%/ºC
Lifespan ≥10 years
Product Certifications / Standards CE, IEC61215
Other Certifications ISO9001:2008, RoHS

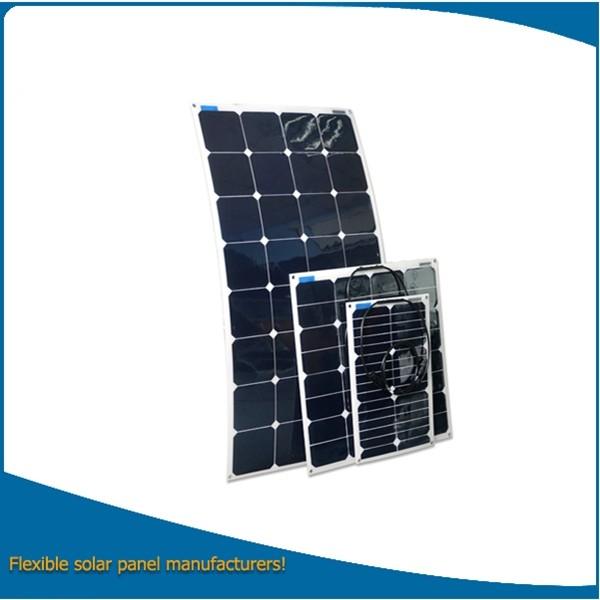

Picture show:

10w to 200w flexible solar panel with MC4 connector, customized solar panel semi flexible for hot sale

10w to 200w flexible solar panel with MC4 connector, customized solar panel semi flexible for hot sale10w to 200w flexible solar panel with MC4 connector, customized solar panel semi flexible for hot sale

Shipping & Payment:

1. Payment term: T/T in advance (W/U for sample order)
2. Lead time: It depends on your quantity. Usually we will send sample within 5-7 working days.
3. Shipping will be made via EMS, DHL, Fedex, UPS etc.

10w to 200w flexible solar panel with MC4 connector, customized solar panel semi flexible for hot sale
