PLC PC Touch Screen Control Lithium Cell Battery Recycling Machine for Mobile Phone
PLC PC Touch Screen Control Lithium Cell Battery Recycling Machine for Mobile Phone
PLC PC Touch Screen Control Lithium Cell Battery Recycling Machine for Mobile Phone
PLC PC Touch Screen Control Lithium Cell Battery Recycling Machine for Mobile Phone
PLC PC Touch Screen Control Lithium Cell Battery Recycling Machine for Mobile Phone
PLC PC Touch Screen Control Lithium Cell Battery Recycling Machine for Mobile Phone
PLC PC Touch Screen Control Lithium Cell Battery Recycling Machine for Mobile Phone
PLC PC Touch Screen Control Lithium Cell Battery Recycling Machine for Mobile Phone
PLC PC Touch Screen Control Lithium Cell Battery Recycling Machine for Mobile Phone
PLC PC Touch Screen Control Lithium Cell Battery Recycling Machine for Mobile Phone
PLC PC Touch Screen Control Lithium Cell Battery Recycling Machine for Mobile Phone
PLC PC Touch Screen Control Lithium Cell Battery Recycling Machine for Mobile Phone
Specifications
Condition :
New
Applicable Industries :
Manufacturing Plant
Showroom Location :
Canada, Turkey, United Kingdom, United States, Italy, France, Germany, Viet Nam, Philippines, Peru, Saudi Arabia, Indonesia, Pakistan, India, Russia, Thailand, Kenya, Argentina, South Korea, UAE, Colombia, Algeria, Sri Lanka, Romania, Bangladesh, South Afr
Place of Origin :
Henan, China
Brand Name :
SUNY
Model Number :
ZY-1000
Type :
Lithium Battery Recycling Machime
Warranty :
1 Year
Power :
25
Production Capacity :
200-3000KG/H
Machinery Test Report :
Provided
Video outgoing-inspection :
Provided
Marketing Type :
Ordinary Product
Warranty of core components :
1 Year
Core Components :
PLC
Weight (KG) :
4000 kg
Machine Type :
Scrap Metal Shredders
Certification :
CE
Voltage :
220V/380V/Customized
Final product :
Copper, Aluminum, Paper, Cobalt Lithium & Graphite Mix Powder
Application :
All Kinds Of Lithium Batteries
Capacity :
200-3000kg/h
Control :
PLC+PC+Touch Screen
Feature :
Easy Operation; High Seperation Ratio
Product name :
Lithium Battery Recycling Machine
Raw material :
Lithium Battery Scrap
Packaging Details :
Waste Computer Phone Wire Copper Cable Separator Scrap Copper Cable Granulating Machines are packaged according to the industry standard.
Port :
We default port is Qingdao, and other Chinese ports is ok
Supply Ability :
20 Set/Sets per Month
Price :
$15,000.00 - $65,000.00/sets
MOQ :
1pc
Description

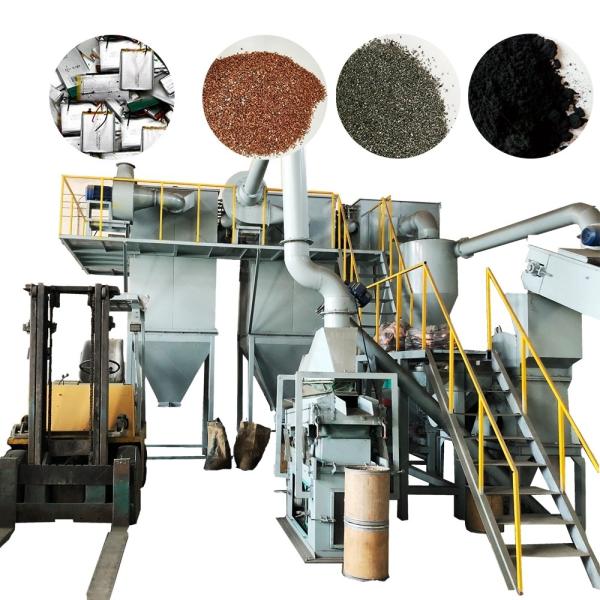

LITHIUM BATTERY RECYCLING PLANT


Mainly recovers metal and black powder on the positive and negative plates of the battery. So as to make profits from sales.
PLC PC Touch Screen Control Lithium Cell Battery Recycling Machine for Mobile Phone

BACKGROUND


At present, the research on the recycling of waste lithium batteries is mainly focused on the recovery of high-value anode precious metals cobalt and lithium. Copper in the negative electrode of waste lithium battery (content up to 35%) is an important production raw material widely used. Based on the structural characteristics of lithium batteries, our company adopts an environmentally-friendly physical separation process to realize efficient separation and recovery of waste lithium batteries.


PRODUCT DESCRIPTION


The pretreatment process of Electric Car Traction Battery Lithium Ion Battery Recycling Machine mainly comprises the following steps: after discharging the recovered waste batteries, crushing, magnetic separation, air separation, crushing, gravity separation, screening and other processes are carried out by mechanical equipment.
PLC PC Touch Screen Control Lithium Cell Battery Recycling Machine for Mobile Phone


RAW MATERIALS


The Electric Car Traction Battery Lithium Ion Battery Recycling Machine is used for dismantling and recycling the soft package battery, cellphone battery, shell battery, cylindrical battery etc. Different types of lithium batteries have different recycling procedures.
PLC PC Touch Screen Control Lithium Cell Battery Recycling Machine for Mobile Phone


FINAL PRODUCTS


The final products of Electric Car Traction Battery Lithium Ion Battery Recycling Machine is graphite powder, cobalt acid lithium,aluminum and copper.
PLC PC Touch Screen Control Lithium Cell Battery Recycling Machine for Mobile Phone


TECHNOLOGICAL PROCESS


Shredder -- Hammer Crusher -- Grinder -- Separation Machine -- Pulse Dust Collector -- Classifying Screen -- Magnetic Machine -- Gravity Separator -- High-pressure Blower
PLC PC Touch Screen Control Lithium Cell Battery Recycling Machine for Mobile Phone


ENVIRONMENTALLY FRIENDLY


Electric Car Traction Battery Lithium Ion Battery Recycling Machine adopts water spray facility and activated carbon device used to absorb odors and pulse dust collecter for dust adsorption.
PLC PC Touch Screen Control Lithium Cell Battery Recycling Machine for Mobile Phone
PLC PC Touch Screen Control Lithium Cell Battery Recycling Machine for Mobile Phone
PLC PC Touch Screen Control Lithium Cell Battery Recycling Machine for Mobile Phone
PLC PC Touch Screen Control Lithium Cell Battery Recycling Machine for Mobile Phone

TECHNICAL PARAMETERS
Model
Capacity
ZYLDC-500
500 Kg/H
ZYLDC-1000
1000 Kg/H
ZYLDC-1500
1500 Kg/H
ZYLDC-2000
2000 Kg/H
ZYLDC-2500
2500 Kg/H
WORKING PERFORMANCE

Raw Material
Lithium Battery
Final Product
Mainly Copper, Aluminum, Lithium Cobalt Oxide, Graphite Powder


NOTE:


Working voltage:380±10V(415V ,440V also can be custom);
(If you want more detailed parameters and quotations, please contact us)


We Are The First Factory


In Henan Province To Develop The Lithium Battery Recycling Plant
TECHNICAL STANDARDS
Feature Item
Indicator Requirments
Recovery Rate of Metallic Aluminum
>98%
Powder Recovery Rate
>98%
Content of Powder In Metal Aluminum
<2%
Content of Metallic Aluminum In Powder
<2%
Other
Contain dust collecter with not pollute
Qualified Rate
99%
Failure Rate
<1%
CMR
≥1.67
