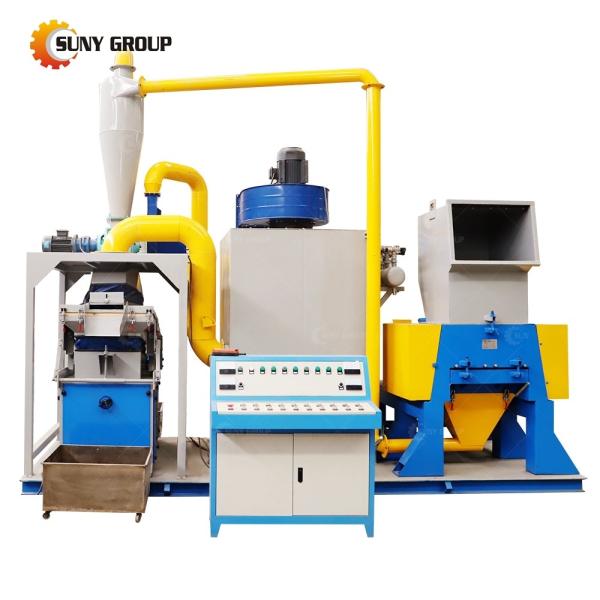

Design Scrap Copper Wire Cable Cutter Granulator Machine Plastic And Copper Separator
Design Scrap Copper Wire Cable Cutter Granulator Machine Plastic And Copper Separator
Design Scrap Copper Wire Cable Cutter Granulator Machine Plastic And Copper Separator
Design Scrap Copper Wire Cable Cutter Granulator Machine Plastic And Copper Separator
Design Scrap Copper Wire Cable Cutter Granulator Machine Plastic And Copper Separator
Design Scrap Copper Wire Cable Cutter Granulator Machine Plastic And Copper Separator
Design Scrap Copper Wire Cable Cutter Granulator Machine Plastic And Copper Separator
Design Scrap Copper Wire Cable Cutter Granulator Machine Plastic And Copper Separator
Design Scrap Copper Wire Cable Cutter Granulator Machine Plastic And Copper Separator
Design Scrap Copper Wire Cable Cutter Granulator Machine Plastic And Copper Separator
Design Scrap Copper Wire Cable Cutter Granulator Machine Plastic And Copper Separator
Design Scrap Copper Wire Cable Cutter Granulator Machine Plastic And Copper Separator
Specifications
Place of Origin :
Henan, China
Brand Name :
SUNY
Condition :
New
Video outgoing-inspection :
Provided
Machinery Test Report :
Provided
Marketing Type :
New Product
Warranty of core components :
1 Year
Core Components :
PLC
Warranty :
1 Year
Power (kW) :
28, 39, 68, 95
Weight (KG) :
5000
Key Selling Points :
High Productivity
Applicable Industries :
Manufacturing Plant, Copper Wire Recycling Plant
Showroom Location :
Egypt, Canada, Turkey, United Kingdom, United States, Italy, France, Germany, Viet Nam, Philippines, Peru, Indonesia, India, Mexico, Russia, Spain, Thailand, Morocco, South Korea, Chile, UAE, Sri Lanka, Bangladesh, South Africa, Uzbekistan, Japan, Malaysia
Name :
Scrap Copper Wire Cable Granulator Machine
Application :
Plastic And Copper Separator
Usage :
Cable Scrap Wire Recycling Machine
Advantage :
Copper Wire Recycling Plant
Capacity :
100-1000kg
Certification :
CE
Voltage :
380V 50Hz 3Phase/Customized
Final product :
Copper & plastic
Sorting rate :
99%
Copper purity :
100%
Packaging Details :
Scrap Copper Wire Cable Cutter Granulator Machine Plastic And Copper Separator are packaged according to the industry standard.
Port :
We default port is Qingdao, and other Chinese ports is ok
Supply Ability :
5 Set/Sets per Month Copper Wire Recycling Plant
Price :
$5,000.00 - $35,000.00/sets
MOQ :
1pc
Description
Design Scrap Copper Wire Cable Cutter Granulator Machine Plastic And Copper Separator

Product Application


The Copper Wire Recycling Machine is dry type structure, mainly used to all kinds of waste copper wire, the copper wire will be separated into tiny copper rice and PVC. This machine can recycle the copper wire which diameter is 0. 3mm-20mm. Automobile electrical wire or the electric wire of car, motorcycle electric wire, computer case wire and communication cable, etc.
Design Scrap Copper Wire Cable Cutter Granulator Machine Plastic And Copper Separator


Final products


Copper Wire Recycling Machine process the waste electric wire and cable into copper and plastic granule. Copper is separated from the plastic, separation efficiency can be 99%. For the copper granule, it can be sold directly or go to further refining. Through our copper electrolysis machine, the copper can be refined into cathode copper in above 99.99% purity. The plastic granules normally are PVC or rubber material, it can also be sold directly.
Design Scrap Copper Wire Cable Cutter Granulator Machine Plastic And Copper Separator

Product Structure


The Copper Wire Recycling Machine is dry type structure, mainly used to all kinds of waste copper wire, the copper wire will be separated into tiny copper rice and PVC. This machine can recycle the copper wire which diameter is 0.3mm-20mm. Automobile electrical wire or the electric wire of car,motorcycle electric wire, computer case wire and communication cable, etc.
Design Scrap Copper Wire Cable Cutter Granulator Machine Plastic And Copper Separator
Design Scrap Copper Wire Cable Cutter Granulator Machine Plastic And Copper Separator

Working process of Copper Wire Recycling Machine

1. Put wasted cable into the crusher machine, they will be cut into granules first. during this process, copper and plastic areseparated but still mixed together.

2.Then the granules are sent to air separator for separation, according to the gravity difference and through air blow, the copper and plastics are separated success sully and comes out from different sides.

3. At last we collect the separated pure copper and plastic.
Details
Design Scrap Copper Wire Cable Cutter Granulator Machine Plastic And Copper Separator
Design Scrap Copper Wire Cable Cutter Granulator Machine Plastic And Copper Separator
Design Scrap Copper Wire Cable Cutter Granulator Machine Plastic And Copper Separator
Design Scrap Copper Wire Cable Cutter Granulator Machine Plastic And Copper Separator
Design Scrap Copper Wire Cable Cutter Granulator Machine Plastic And Copper Separator
Design Scrap Copper Wire Cable Cutter Granulator Machine Plastic And Copper Separator
Product Parameters
Model
Capacity
Weight
Size (m)
Power
ZY-TMJ100
100-200kg/h
1850kg
2.2x2x2.3
28kw
ZY-TMJ300
200 300kg/h
2500kg
3.2x2.1x2.3
39kw
ZY-TMJ500
400-500kg/h
3850kg
6.2x5x3.3
68kw
ZY-TMJ800
700-800kg/h
5500kg
10.4x2.1x3.3
75kw
ZY-TMJ1000
800-1000kg/h
8200kg
12x4.1x4.5
95kw


Process Description


For the small capacity, the cable wires raw materials can be put into the al-in-one machine directly, after crushing, it will using the Air separation system to make the copper and plastic suspended on the screen. Then it can separate the Copper from the plastic by weighting method and the friction force which produced by the Surface of the mesh.

For larger capacity, the cable wires raw materials will be firstly put into the shredder, then go into crusher to get the small pieces wires, then our pulse air separator machine will make the copper and plastic suspended on the screen to separate the Copper from the plastic by weighting method and the friction force which produced by the Surface of the mesh. To improve the purity and capacity, the rest materials will be go into our high voltage electrostatic separator. This model system including the first crusher, pulse air separator, dust and fiber collection system and high voltage electrostatic separator.
Design Scrap Copper Wire Cable Cutter Granulator Machine Plastic And Copper Separator
Product Feature
Design Scrap Copper Wire Cable Cutter Granulator Machine Plastic And Copper Separator
Design Scrap Copper Wire Cable Cutter Granulator Machine Plastic And Copper Separator
Design Scrap Copper Wire Cable Cutter Granulator Machine Plastic And Copper Separator
Design Scrap Copper Wire Cable Cutter Granulator Machine Plastic And Copper Separator
Design Scrap Copper Wire Cable Cutter Granulator Machine Plastic And Copper Separator
Design Scrap Copper Wire Cable Cutter Granulator Machine Plastic And Copper Separator
Design Scrap Copper Wire Cable Cutter Granulator Machine Plastic And Copper Separator
Design Scrap Copper Wire Cable Cutter Granulator Machine Plastic And Copper Separator
