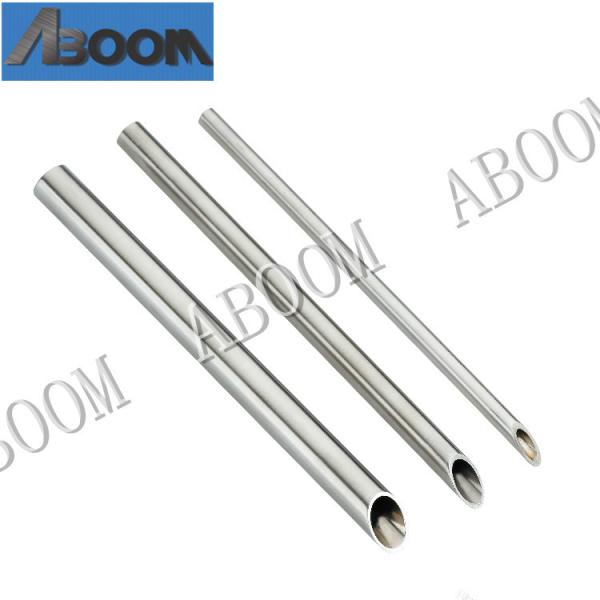

Anti Rust Hastelloy Alloy Hastelloy C-22 Alloy Steel Seamless Pipe N06022
Anti Rust Hastelloy Alloy Hastelloy C-22 Alloy Steel Seamless Pipe N06022
Anti Rust Hastelloy Alloy Hastelloy C-22 Alloy Steel Seamless Pipe N06022
Anti Rust Hastelloy Alloy Hastelloy C-22 Alloy Steel Seamless Pipe N06022
Specifications
Brand Name :
ABOOM
Model Number :
Hastelloy C-22
Certification :
EN 10204 Type 3.1
Place of Origin :
CHINA
MOQ :
1000kgs
Price :
USD Negotiable
Payment Terms :
T/T
Supply Ability :
200 TONS PER MONTH
Delivery Time :
7-15dyas
Packaging Details :
Standard export packaging
TYPE OF MATERIAL :
nickel-base alloy
PRODUCT :
Hastelloy C-22 Nickel base corrosion resistant alloy Seamless tube
STANDARD :
ASTM SB 407
GRADE :
Hastelloy C-22 / N06022
Manufacturing process :
The steel melt shall be refined with AOD or equivalent.
Type Of Tube :
Straight tube, U Bend tube , Coil tube
Surface Finish :
Pickled And Annealed, Bright Annealed, Polished
testing facility :
Accept third-party testing such as SGS
Description

Anti Rust Hastelloy Alloy Hastelloy C-22 Alloy Steel Seamless Pipe N06022

Hastelloy C-22 Nickel base corrosion resistant alloy Seamless tube N06022

Introduction

Hastelloy C-22 is one of the most widely used nickel-chromium-molybdenum-tungsten alloys. It has better resistance to uniform and local corrosion and is suitable for a variety of mixed industrial chemicals. HC-22 has better corrosion resistance than other Ni-Cr-Mo alloys, including C-276, C-4 and 625. C-22 alloys have excellent weldability.

Hastelloy C-22 / N06022 Chemical composition (%)

Ni: balance

Cr: 20.00-22.50

Mo: 12.50-14.50

Fe: 2.00-6.00

W: 2.50-3.00

Co: ≤2.50

C: ≤0.10

Si: ≤0.08

Mn: ≤0.50

P:≤ 0.02

V: ≤0.35

Inspection and Test Procedure


1. 100% PMI,Spectro Chemical Aanlysis Test for Raw Material
2. 100% Dimension & Visual Examination
3. Mechanical Properties Test Include Tension Test,Flaring Test (For Seamless tube/pipe)/ Flange Test (For Welded Pipe & Tube), Hardness Test ,Reversed Flattening Test
4. 100% Hydrostatic Test or 100% NON-DESTRUCTIVE Test (ET or UT)
5. Radiographic Test for Welded Pipe (shall be accordance with specification,or shall be as agreed upon between the purchaser and vendor)
6. Straightness Test (optional)
7. Roughness Test (optional)
8. Intergranular Corrosion Test(optional)
9. Impact Test (optional)
10. Grain Size Determinations (optional)
NOTES : ALL THE TESTS AND INSPECTION RESULT NEED TO BE SHOWED IN REPORTS ACCORDING TO STANDARD AND SPECIFICATION.

Anti Rust Hastelloy Alloy Hastelloy C-22 Alloy Steel Seamless Pipe N06022
