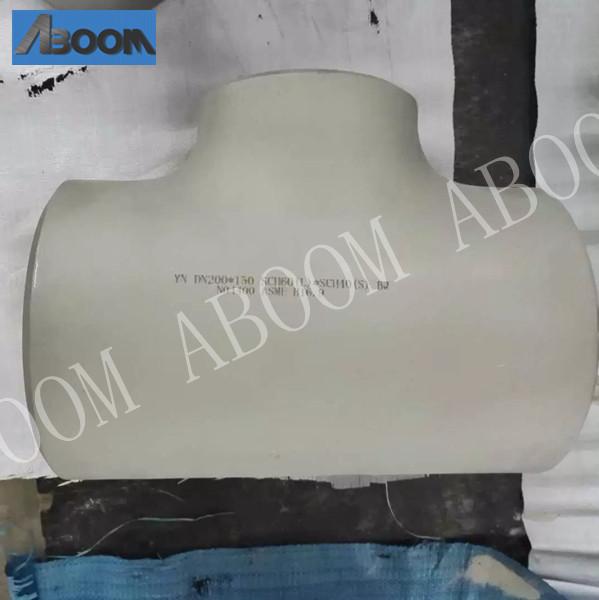

High Strength Monel Alloy UNS N04400 Nickel Based Alloy Steel Tee W.Nr 2.4360
High Strength Monel Alloy UNS N04400 Nickel Based Alloy Steel Tee W.Nr 2.4360
High Strength Monel Alloy UNS N04400 Nickel Based Alloy Steel Tee W.Nr 2.4360
High Strength Monel Alloy UNS N04400 Nickel Based Alloy Steel Tee W.Nr 2.4360
Specifications
Brand Name :
ABOOM
Model Number :
Monel 400 Tee
Certification :
EN 10204 Type 3.1
Place of Origin :
CHINA
MOQ :
10 pieces
Price :
USD Negotiable
Payment Terms :
T/T
Supply Ability :
20000 pieces per day
Delivery Time :
7-15dyas
Packaging Details :
Standard export packaging
TYPE OF MATERIAL :
nickel-copper alloys
PRODUCT :
Monel 400 / UNS N04400 nickel-based alloy steel Tee
STANDARD :
ASME B16.9
GRADE :
Monel 400 / W.Nr 2.4360 / UNS N04400
Manufacturing process :
The steel melt shall be refined with AOD or equivalent.
Type Of Product :
Tee
Surface Finish :
Pickled And Annealed, Bright Annealed, Polished
testing facility :
Accept third party testing such as SGS
Description

High Strength Monel Alloy UNS N04400 Nickel Based Alloy Steel Tee W.Nr 2.4360

Monel 400 / UNS N04400 nickel-based alloy steel Tee W.Nr 2.4360

Tee Monel 400 / UNS N04400 Size:

Outer diameter of tee : 1/2 "－20" (DN15－DN500)
Wall thickness: Sch5S-Sch160

Monel 400 alloy Tee(UNS N04400 or MCu-28-1.5-1.8 or Ni68Cu28Fe) is a kind of seawater, chemical solvent, ammonia sulfur chloride, hydrogen chloride, various acidic media such as sulfuric acid, hydrofluoric acid, hydrochloric acid, phosphoric acid, organic acids , Nickel-based alloy materials with good corrosion resistance in alkaline media, salts and molten salts.
Monel 400 alloy Tee also has good mechanical properties, a wide range of use temperatures from low to high temperatures, good welding performance and medium and high strength.
Monel 400 Tee is mainly used in the fields of chemical and petrochemical and marine development. Can be used to manufacture various heat exchange equipment, boiler feed water heaters, petroleum and chemical pipelines, containers, towers, tanks, valves, pumps, reactors, shafts, etc.

Monel 400 Tee chemical composition:

composition %
Ni 63.0min
Cu 28min~34max
Fe 2.5max
Mn 2.0max
C 0.3max
Si 0.5max
S 0.024max

Monel 400 Tee Physical Properties:


Density:		 0.318 lb/ in3
8.80g/cm3
Elastic Modulus: 26 000 ksi
Heating energy: 0.427 J/g-°C
Thermal conductivity: 21.8 W/m-K
Melting point: 1300 - 1350 °C
magnetic: 200H(At 70 F)
Thermal expansion coefficient, in./in./ F x 106
70-200F 7.7
70 - 400 F 8.6
70 - 800 F 8.9
70 - 1000 F 9.1


Monel 400 Tee mechanical properties


shape		 tensile strength Yield Strength
(0.2% Offset)		 Elongation,
%		 hardness
ksi MPa ksi MPa Brinell
(3000-kg)		 Rockwell B
Bar 70-110 480-760 25-85 170-585 50-5 110min 60min
Plate 70-95 482-655 28-75 193-517 50-30 110-215 60-96
Sheet 70-120 482-827 30-110 207-758 45-2 65min
Strip 70-140 482-965 25-130 172-896 50-2 68min
seamless pipe 70-130 482-896 25-110 172-758 50-3 100max
cold drawing coil 70-180 482-1241 30-170 207-1172 45-2

High Strength Monel Alloy UNS N04400 Nickel Based Alloy Steel Tee W.Nr 2.4360
