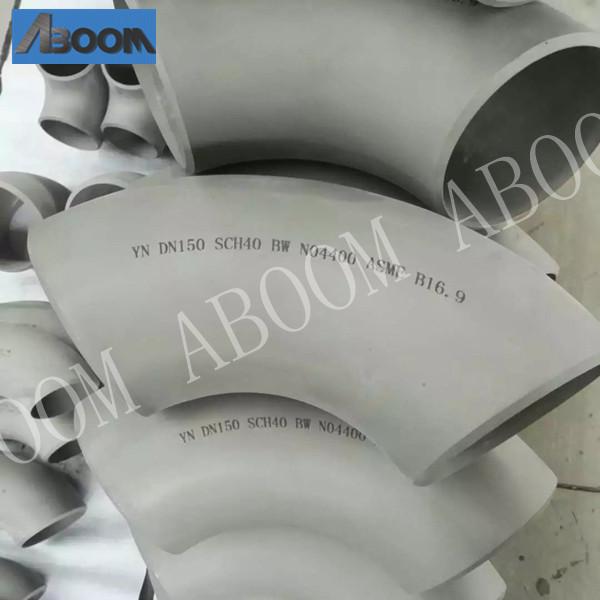

Custom Made Monel Alloy W.Nr 2.4360 Nickel Copper Alloy Steel Seamless Elbows
Custom Made Monel Alloy W.Nr 2.4360 Nickel Copper Alloy Steel Seamless Elbows
Custom Made Monel Alloy W.Nr 2.4360 Nickel Copper Alloy Steel Seamless Elbows
Custom Made Monel Alloy W.Nr 2.4360 Nickel Copper Alloy Steel Seamless Elbows
Specifications
Brand Name :
ABOOM
Model Number :
Monel 400 Elbow
Certification :
EN 10204 Type 3.1
Place of Origin :
CHINA
MOQ :
1000kgs
Price :
USD Negotiable
Payment Terms :
T/T
Supply Ability :
200 TONS PER MONTH
Delivery Time :
7-15dyas
Packaging Details :
Standard export packaging
TYPE OF MATERIAL :
nickel-copper alloys
PRODUCT :
Monel 400 (W.Nr 2.4360) Nickel-Based Alloy Steel Elbow
STANDARD :
ASME B16.9
GRADE :
Monel 400 / W.Nr 2.4360 / N04400
Manufacturing process :
The steel melt shall be refined with AOD or equivalent.
Surface Finish :
Pickled And Annealed, Bright Annealed, Polished
testing facility :
Accept third party testing such as SGS
Description

Custom Made Monel Alloy W.Nr 2.4360 Nickel Copper Alloy Steel Seamless Elbows

Monel 400 (W.Nr 2.4360) Nickel-Based Alloy Steel Elbow Custom Made

Size:

Outer diameter of seamless elbow: 1/2 "－20" (DN15－DN500)
Outer diameter of slotted elbow: 1/2 "－48" (DN15－DN1200)
Wall thickness: Sch5S-SchXXS

Monel®400 is a single-phase solid solution nickel-copper alloy with a density of 8.8g / cm3

Monel 400 alloy (UNS N04400 or MCu-28-1.5-1.8 or Ni68Cu28Fe) is a kind of seawater, chemical solvent, ammonia sulfur chloride, hydrogen chloride, various acidic media such as sulfuric acid, hydrofluoric acid, hydrochloric acid, phosphoric acid, organic acids , Nickel-based alloy materials with good corrosion resistance in alkaline media, salts and molten salts.
Monel 400 alloy also has good mechanical properties, a wide range of use temperatures from low to high temperatures, good welding performance and medium and high strength.
Monel 400 is mainly used in the fields of chemical and petrochemical and marine development. Can be used to manufacture various heat exchange equipment, boiler feed water heaters, petroleum and chemical pipelines, containers, towers, tanks, valves, pumps, reactors, shafts, etc.

Country comparison:

USA

ASTM B127-2005

ASTM B164-2003

 N04400
Special Metals MONEL® alloy 400
JAP JIS H4551:2000 NW4400
Germany DIN 17743:2002

2.4360(NiCu30Fe)

2.4361(LC-NiCu30Fe)

Monel 400 chemical composition:

composition %
Ni 63.0min
Cu 28min~34max
Fe 2.5max
Mn 2.0max
C 0.3max
Si 0.5max
S 0.024max

Monel 400 Typical Engineering Application:

1. Feed water and steam generator piping system of power station;

2. The theme of the heater and evaporator of the salt factory;

3. Alkylation unit of sulfuric acid and hydrofluoric acid;

4. Industrial heat exchanger;

5. Composite plates in crude oil distillation equipment;

6. Wave shields for offshore installations;

7. Shafts of propellers and pumps in seawater systems;

8. Uranium and isotope separation systems in nuclear fuel production;

9. Pumps and valves in chlorinated hydrocarbon production;

10. MEA reboiler pipe.

Custom Made Monel Alloy W.Nr 2.4360 Nickel Copper Alloy Steel Seamless Elbows
