Nickel Based Incoloy Alloy ASTM B407 Incoloy 800H / UNS N08810 / 1.4958
Nickel Based Incoloy Alloy ASTM B407 Incoloy 800H / UNS N08810 / 1.4958
Nickel Based Incoloy Alloy ASTM B407 Incoloy 800H / UNS N08810 / 1.4958
Nickel Based Incoloy Alloy ASTM B407 Incoloy 800H / UNS N08810 / 1.4958
Specifications
Brand Name :
ABOOM
Model Number :
Incoloy 800H
Certification :
EN 10204 Type 3.1
Place of Origin :
CHINA
MOQ :
1000kgs
Price :
USD Negotiable
Payment Terms :
T/T
Supply Ability :
200 TONS PER MONTH
Delivery Time :
7-15dyas
Packaging Details :
Standard export packaging
TYPE OF MATERIAL :
nickel based alloy
PRODUCT :
Incoloy AlloUNS N08810 nickel based alloy seamless Tube
STANDARD :
ASTM B407
GRADE :
Incoloy 800H / UNS N08810 / 1.4958
Manufacturing process :
The steel melt shall be refined with AOD or equivalent.
Heat Treatment :
shall be supplied in the solution annealed / water quenched condition.
Surface Finish :
Descaled, White Pickled, and Passivated Condition
testing facility :
Accept third party testing such as SGS
Description

Nickel Based Incoloy Alloy ASTM B407 Incoloy 800H / UNS N08810 / 1.4958

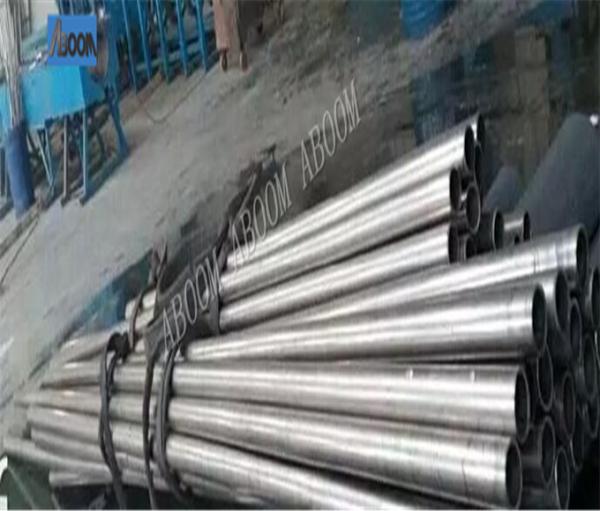

Incoloy Alloy UNS N08810 nickel based alloy seamless Tube Incoloy 800H 1.4958

Material designation: Incoloy 800H nickel based alloy
US grade: NO8810
German grade: X2NiCrAlTi3220

Incoloy 800H (NO8810) nickel-based alloy applications:


Incoloy 800H (NO8810) alloy chemical industry, nuclear generator, nitric acid cooler, acetic anhydride cracking tube, heat exchange equipment, heat exchange tube, etc.

Incoloy 800H (NO8810) nickel-based alloy mechanical properties: see Table-1:

Table-1 %

Temp ℃ σЬ/ MPa σ0.2 / MPa δ5 /%
100 425 140 160
300 390 95 115
500 360 80 100
600 300 75 95

specification:


Outer diameter Φ6—762mm; wall thickness: 0.5-50mm, maximum length 18000mm
Special specifications are available upon negotiation.

Nickel Based Incoloy Alloy ASTM B407 Incoloy 800H / UNS N08810 / 1.4958
