Multi Size Warehouse Storage Shelves With High Strength And Rigidity
Multi Size Warehouse Storage Shelves With High Strength And Rigidity
Multi Size Warehouse Storage Shelves With High Strength And Rigidity
Multi Size Warehouse Storage Shelves With High Strength And Rigidity
Specifications
Brand Name :
FDKL
Model Number :
HD-W15
Certification :
CE
Place of Origin :
China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
T/T, L/C
Supply Ability :
10000 sets per week
Delivery Time :
Within 20 days after deposit received.
Packaging Details :
Upright and beam are packaged by bubble foam, shelf is packed by carton.
Material :
Q235
Loading Capacity :
200-500kg/level
Type :
Medium Duty
Color :
RAL System Available
Structure :
Long Span
Description

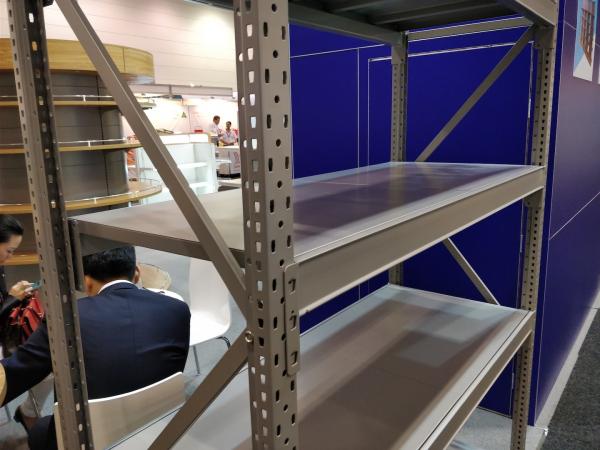

Medium Duty Long Span Warehouse Storage Steel Rack Shelf Shelving Racking System

Description:

The medium duty racking are mainly composed of upright frames, beams, and shelves. It is easy to assemble and disassemble. It is beautiful in appearance and suitable for manual access. The carrying capacity is usually 200KG-1000KG/layer, which can meet most of the requirements of use. They can be adjusted up and down at a pitch of 50mm. For the convenience of operators to access the goods, the total height of the shelves usually does not exceed 2 meters. If the climbing equipment is used, the shelf height can reach up to 3 meters. They can be used alone or in a variety of arrangements.

Feature:

1. The three-dimensional structure can make full use of warehouse space, improving warehouse capacity utilization and expanding warehouse storage capacity

2. To meet the needs of large-volume cargo, a wide variety of storage and centralized management, and with the mechanical handling tools, the same order of storage and handling can be done.

3. Easy access to goods, it is suitable for manual access

4. Meet the management needs of modern enterprises with low cost, low loss and high efficiency logistics supply chain with large capacity, stable structure, easy assembly and disassembly.

Details:

1. Features: 1)Beam levels are adjustable in 50mm pitch interval.
2)Different sizes, various specifications and colors are available according to customers’ different needs.
3)Maximizes space use ratio in any warehouse configuration while retaining optimum product accessibility.
4)Strength and rigidity prevents compression damage to goods.
5)Bottom level of pallets can be stored on the floor, lowering structure costs.
2. Material: High grade Q235B Steel
3. Finish: High-quality Powder Coating Finishing.
4. Load Capacity & Dimension: Loading capacity: 200-1000 kgs UDL/beam level.
Height: 1000-5000mm
Depth: 500-1200mm
Length: 1000-2000mm
Special sizes also available to specific storage needs.
5. Main Parts Specs: 1) Uprights frame: 40*60mm,40*80mm,55*47mm, etc.
2) Beams: 40*60mm, 50*80mm, etc.,
3)Shelves: 0.6~1.2mm
6. CE certified. Our warehouse rack certified by FEM.
7. Quick Delivery. Within 15 days for ordinary order quantity. Big production capacity allow us in a position to make quick delivery.
8. Package Layer boards in cartions and upright posts wrapped by Bubble Films.
9. ODM/OEM Yes
10. MOQ 50sets

Images:

Multi Size Warehouse Storage Shelves With High Strength And RigidityMulti Size Warehouse Storage Shelves With High Strength And Rigidity
