Customization Size Push Back Pallet Rack Q235 With Intensive Storage

Push Back Pallet Rack Introduction

Push Back Pallet Rack is a new generation of high density storage racking system which max your storage utilization and working efficiency. Radio Shuttle racking system is a high-density storage system composed of racking, radio shuttle and forklift; Radio shuttle running on the special rail, and can be increased or decreased to raise and lower the pallet cargo, and return it to position. The shuttle adopts radio remote control, and equipped with battery to provide power, and running forward and backward with four wheels. The radio shuttle racking system is of high dense storage rack system with high investment cost. It suitable for storage of large quantities and single species of goods for FIFO or FILO. But there is special requirement for the bottom surface of the pallet. Space utilization rate can reach 80%.

Push Back Pallet Rack Features

• Large storage capacity and extremely high space utilization

• Suitable for multiple varieties and large quantities of goods

• Suitable for situations such as freezer that need to greatly improve space utilization

1. When the number of pallets of a certain product is large and “first in, first out” is not required, the working procedure can be simplified and the benefits are extremely significant;
2. It can shorten the picking time, no special handling equipment required;
3. Due to the large storage area and fewer channels, space utilization and productivity are high;
4. It can avoid high-density storage shelves often caused by cargo damage during loading and unloading operations.

Push Back Pallet Rack detail

Cart - Bearings – Rails – Anti-Slip Steel – Rail Bracket – Front Stopper

Push Back Pallet Rack function

Push-back rack, also known as push-in rack, are connected by multi-layer carts between the front and rear beams. Stacked goods are pushed into the carts from the outside, and the stored goods will push the original goods into it. It is usually used in places where the storage space is extremely limited, but the storage capacity must be increased or the time required for the goods must be increased.

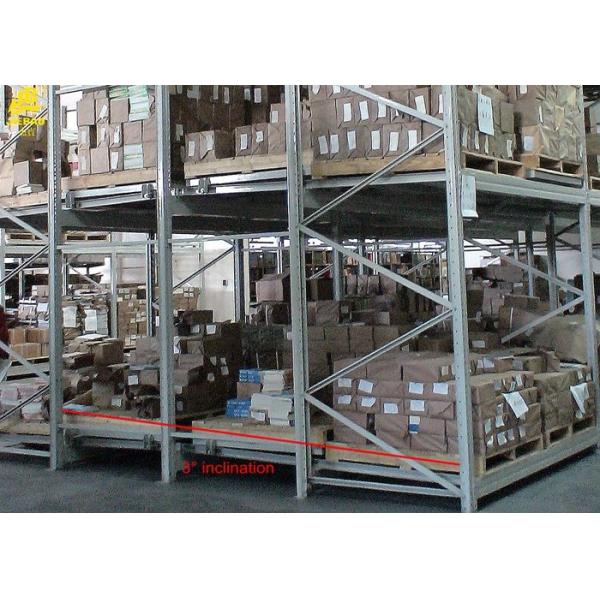

The track of the press-in rack has a certain slope, about 3 °. It uses the weight of the goods, and the pallet goods are specified for single-end storage. The total depth of this kind of rack should not be too deep, generally within the depth of 6 pallets, because the carts are embedded in each other, so they take up some space. The weight of a single pallet is generally within 1500kg, and the rack height is generally below 6m.

The press-in racking system has higher requirements for the manufacturing accuracy of the rack. Because the cooperation between the pallet cart and the guide rail is high, the manufacturing and installation accuracy is strict. Failure to do so will cause the racking system to run poorly and affect work effectiveness.

The cost of press-in rack is higher, which is directly proportional to its value. Its warehouse utilization rate reaches about 80%, and the space utilization rate of the warehouse can be improved.

It is more than 30% high, easy to access and flexible, and is the rack with the highest storage efficiency.

.

Design Features

The track of the press-in rack has a certain slope, about 3 °. It uses the weight of the goods, and the pallet goods are specified for single-end storage. The total depth of this kind of rack should not be too deep, generally within the depth of 6 pallets, because the carts are embedded in each other, so they take up some space. The weight of a single pallet is generally within 1500kg, and the rack height is generally below 6m.
