AIRJET Fluid transfer pump 3V electric mini air pump KMP12A-3A
AIRJET Fluid transfer pump 3V electric mini air pump KMP12A-3A
AIRJET Fluid transfer pump 3V electric mini air pump KMP12A-3A
AIRJET Fluid transfer pump 3V electric mini air pump KMP12A-3A
AIRJET Fluid transfer pump 3V electric mini air pump KMP12A-3A
AIRJET Fluid transfer pump 3V electric mini air pump KMP12A-3A
AIRJET Fluid transfer pump 3V electric mini air pump KMP12A-3A
AIRJET Fluid transfer pump 3V electric mini air pump KMP12A-3A
AIRJET Fluid transfer pump 3V electric mini air pump KMP12A-3A
AIRJET Fluid transfer pump 3V electric mini air pump KMP12A-3A
Specifications
Brand Name :
AIRJET
Model Number :
KMP12A-3A
Certification :
CE, RoHS
Place of Origin :
China
MOQ :
100pcs
Price :
Negotiable
Payment Terms :
T/T, Western Union, Paypal, Alipay
Supply Ability :
10000pcs/month
Delivery Time :
10-15days
Packaging Details :
30*30*25 cm/carton; 15kg
Theory :
Vacuum Pump
Structure :
Diaphragm Pump
Usage :
Air
Power :
Electric
Standard or Nonstandard :
Nonstandard
Fuel :
Electric power, Solar, Battery
Pressure :
Low Pressure
Application :
Wrist Blood Pressure Monitor,Medical Device Mainly used for electronic sphygmomanometer, massage, blood pressure monitors, eye nanny, fish tanks, beer and other equipment products.
Description

AIRJET fluid transfer pump 3V mini air pump

Model: KMP12A-3A

Characteristic

1. Rated Voltage DC3.0V

2. Range of Operating Voltage DC2.0~ 3.2 V

3. Rated Current <460mA

4. Inflation Time <8sec (From 0 to 300mmHg in a 50cc tank)

5. Power Consumption 1.1W

6. Fluid Applied Air

7. Oulet Port O.D. 3.1mm

8. Air Flow >1.0LPM

9. Maximum Pressure >350mmHg

10. Leakage Max 3mmHg/min (From 300mmHg at 50cc tank)

11. Restart Voltage 2.0V

12. Noise <65dB (30cm away)

13. Life 30,000 times (on 7sec,off 7sec as one cycle)

AIRJET Fluid transfer pump 3V electric mini air pump KMP12A-3A

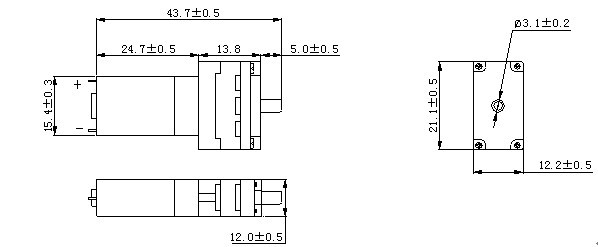

KMP12A-3A outline figure

Electric parameters

MODEL Outward appearance size Fixed quantity voltage Fixed quantity electric current Current capacity Most tremendous pressure Noise Rated Lifetime
mm DC(V) mA LPM mmHG dB Cycles
KMP12A-3A 21*8*32.8 3.0 ≤460 1.0 >350 <65 dB (A) 30000 cycles (on7S,off 7S)
