AIRJET^TM DC 3V 6V 12V 24V Optional Long Life DC Brush Motor Water Pump Vacuum Air Pump

Description:

Brush DC Water and Air Pump 00H220H series use a DC brush motor design that has the capability of over 80000 hours of continuous maintenance-free operation. It is compact, very quiet, highly reliable and inexpensive, it has the design ability to work for chemical liquid or chemical gas continuously operating day and night.

Brush DC Water and Air Pump
1.Brush motor, super long lifetime, super quiet
2. More than 320+_50mL/min for water flowrate, can work with water or wine or oil or ozonized water flowrate or Ammonia gas or liquid. Water suctionable height 2m.
3.Speed adjustable and controllable with square wave signal
4. Corrosive resistance advanced pump film, can carry chemical liquid.
5. lifetime more than 8000hours continuously working day and night

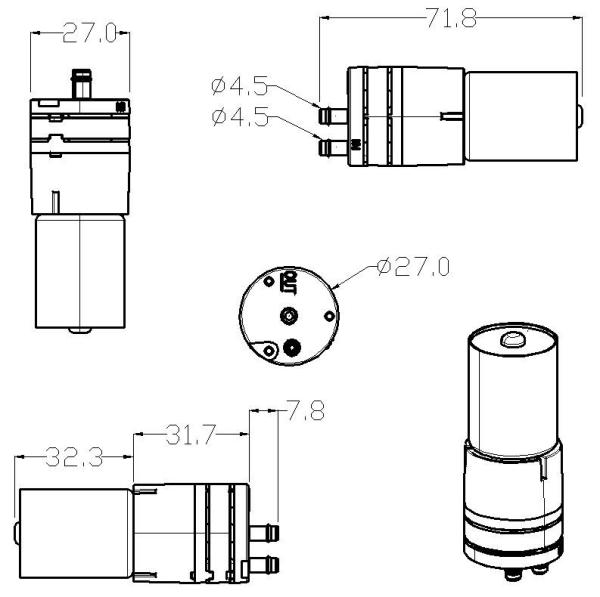

6. size is ∮27x59.7mm
7. Outlet & Inlet Dia: 4mm
8. weight: 60g

Features

Compact size
Steady air outputs with low noise
Low power consumption
Economical
Very low vibration


Applications

oil paint machine
syringe pump
ink machine
aquarium
Household appliance
Dosing chemical material
Battery driving pump
Wine pump
oil pump
ammonia pump
chemical liquid pump
chemical air/liquid pump
ozone pump
fragrance diffuser pump
vacuum pump for suck liquid or air


Competitive Advantage:

long lifetime, low noise, high quality, 320+_50mL/m for liquid flowrate and 90kpa pressure, with chemical resistance pump film, can carry any chemical liquid, RPM speed adjustable and controllable, energy saving suitable for battery driving, Brush DC Water Pump


Performance Curve

for water

for air

Typical Applications

Medical Equipments

Home Appliances　

Use Instructions

Thanks for purchasing our product. Read the following tips before use:

1. Before starting the pump, please make sure connecting the pump to DC power with 3-24V.

2. Check if the input voltage are in the right way fitted to + and - of the motor.

3. No solid particles is allowed in the liquid.

4. Please operate the pump periodically in case of the motor over heating. Run dry without damage but no more than 30 minutes;

5. Working medium: no oil, no strong corrosive, non-acid and alkali, without solid particles of liquid;

6. Installed in a dry, ventilated area; it is self-priming, don't submerse the pump into the water.

If any problem you meet during using, please contact us for help or consult.
