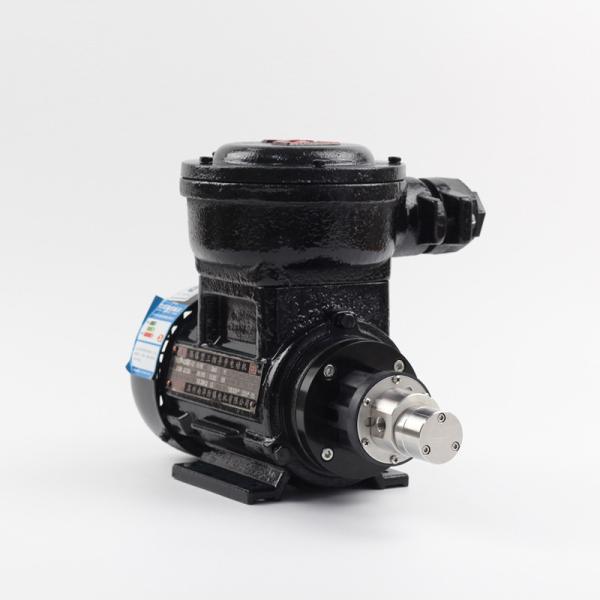

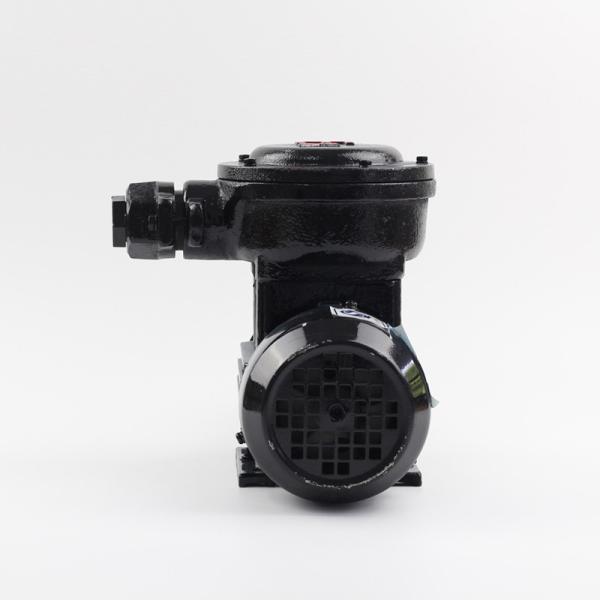

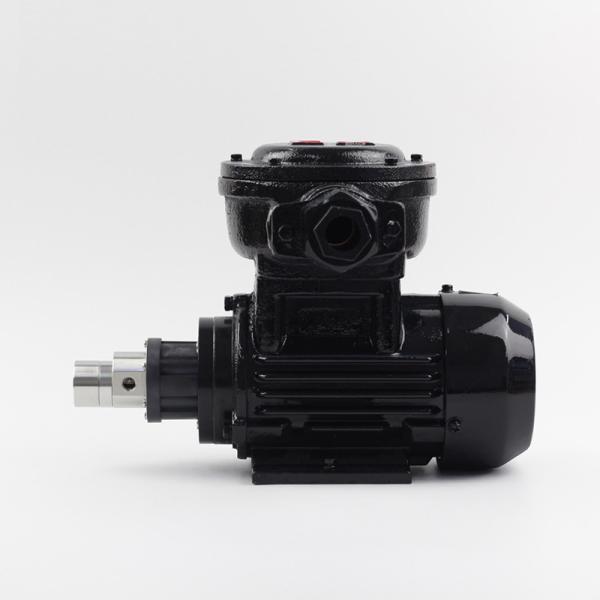

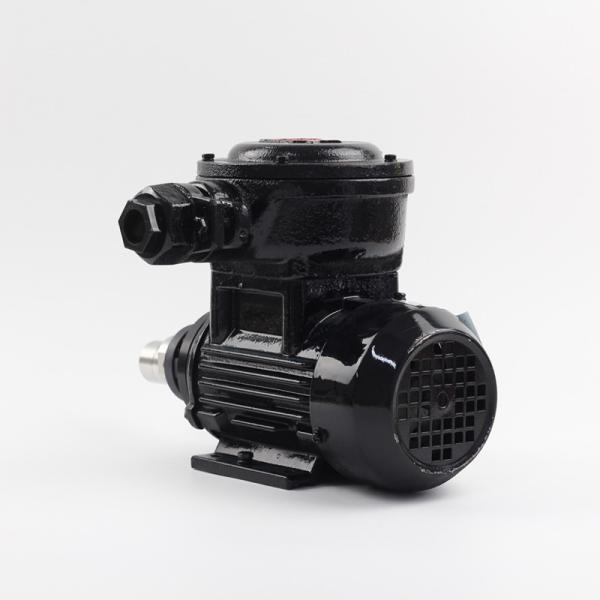

FLOWDRIFT Stainless Steel No Leakage Magnetic Gear Pump Composed By AC Explosion- Protection Drive Device
FLOWDRIFT Stainless Steel No Leakage Magnetic Gear Pump Composed By AC Explosion- Protection Drive Device
FLOWDRIFT Stainless Steel No Leakage Magnetic Gear Pump Composed By AC Explosion- Protection Drive Device
FLOWDRIFT Stainless Steel No Leakage Magnetic Gear Pump Composed By AC Explosion- Protection Drive Device
FLOWDRIFT Stainless Steel No Leakage Magnetic Gear Pump Composed By AC Explosion- Protection Drive Device
FLOWDRIFT Stainless Steel No Leakage Magnetic Gear Pump Composed By AC Explosion- Protection Drive Device
FLOWDRIFT Stainless Steel No Leakage Magnetic Gear Pump Composed By AC Explosion- Protection Drive Device
FLOWDRIFT Stainless Steel No Leakage Magnetic Gear Pump Composed By AC Explosion- Protection Drive Device
FLOWDRIFT Stainless Steel No Leakage Magnetic Gear Pump Composed By AC Explosion- Protection Drive Device
FLOWDRIFT Stainless Steel No Leakage Magnetic Gear Pump Composed By AC Explosion- Protection Drive Device
FLOWDRIFT Stainless Steel No Leakage Magnetic Gear Pump Composed By AC Explosion- Protection Drive Device
FLOWDRIFT Stainless Steel No Leakage Magnetic Gear Pump Composed By AC Explosion- Protection Drive Device
Specifications
Brand Name :
FLOWDRIFT
Model Number :
KMG200XB AC380FB-2-180
Certification :
CE,FDA,ISO9001
Place of Origin :
China
MOQ :
100PCS
Price :
Negotiable
Payment Terms :
T/T, Western Union, MoneyGram,Paypal
Supply Ability :
1000000 Piece/per Year
Delivery Time :
5-15 working days
Packaging Details :
Carton clip bubble pad
Theory :
magnetic drive gear pump
Sturcture :
Gear Pump
Usage :
Oil
Power :
180W
Pressure :
-1~+20 bar
Application :
oil field
Motor power :
180W
Motor rev :
4 = 2 = 2 pole 4 pole
Motor type :
FB = Explosion-Proof Motor
Altitude :
≤2500 meters
Ambient Humidity :
≤85%
Ambient Temperature :
-10-50℃
Fluid viscotity :
0~3000CPS
Description

FLOWDRIFT Stainless Steel No Leakage Magnetic Gear Pump Composed By AC Explosion- Protection Drive Device

KMG200XB/AC380FB-2/180 adopt AC asynchronous explosion-protection motor as power,with the shaft ends of motor connected with the outer annular magnetic loops of REPM to drive the gear pump.This series have the advantage of constant speed, large torque and operating steadily for a long time. Moreover, it can control the flow of pump if equipped with the frequency converter. They are widely used in the chemical, oil field, fuel oil and other flammable and conmbustible liquids delivery. The whole MG200 series can be equipped with this AC asynchronous explosion-protection motor.

Overview:

KMG204XB/AC380FB-2/180 Magnetic Drive Gear Pump,using magnetic coupling drive without leakage. Pump housing material is stainless steel 316. The gear material is PEEK. The sealing material is PTFE. Pump can be used in the -0.1Mpa-2Mpa closed systems. The gear pump could work together with the AC Explosion-proof motors to become different kinds of gear pump units. The rated output pressure is 0.5Mpa. The maximum output pressure is 1.0Mpa . The flow rate is (50-800,100-1800,300-2400) 50-800ml/min.

Main applications:

Widely used in fine chemical industry, oil field, conveying and metering fuel and other inflammable and explosive liquid.

Normal parameters:

1, Altitude : ≤2500 meters

2, Ambient Humidity:≤85%

3, Ambient Temperature:-10-50℃

4, Fluid viscotity: 0~3000CPS

5, Fluid temperature: -10℃≤T≤100℃(except for the freezing)

6, Working way : continuous working

7, Apply the media of : acid , alkali, salt, organic solvents, oils .

Model KMG 2 00 X B / AC380 FB - 2 / 180
Position KMG200 full range of gear pump head can be 1 2 3 4
1 Motor voltage three-phase AC380 = AC 380V
2 Motor Types FB = Explosion-Proof Motor
3 Motor Rev. 4 = 2 = 2 pole 4 pole
4 Motor Power 180 = 180W

Model Rated pressure
(bar)

System pressure

(bar)

Flow rate

(ml/min)

Power

(W)

 Voltage(V) Ports

KMG204XB/

AC380FB-2/180

 5

-1~+20

 50-800

180

2 Poles

Three-Phase/50HZ

AC380 Explosion-proof

G1/8” or G1/4”
KMG209XB/ AC380FB-2/180 5 100-1800
KMG213XB/ AC380FB-2/180 5 300-2400
