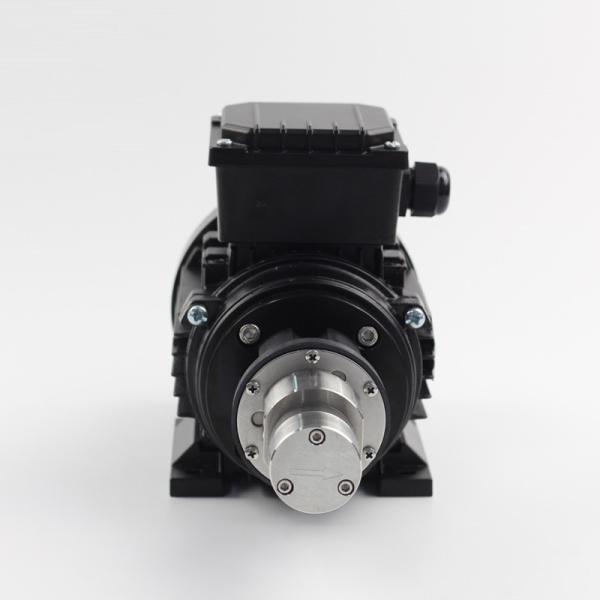

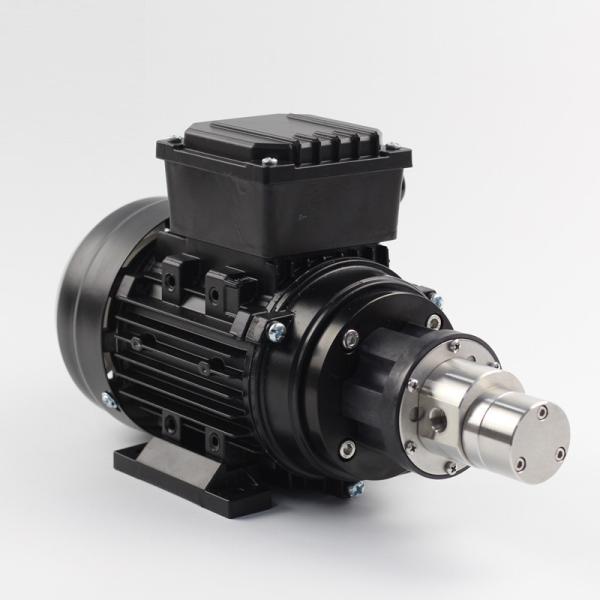

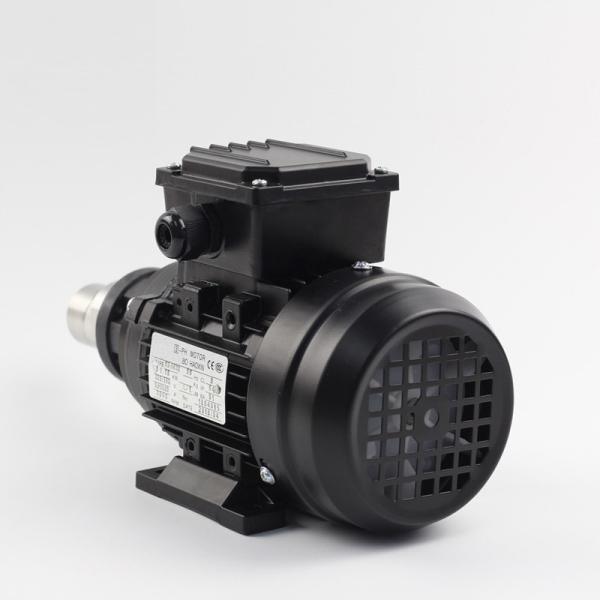

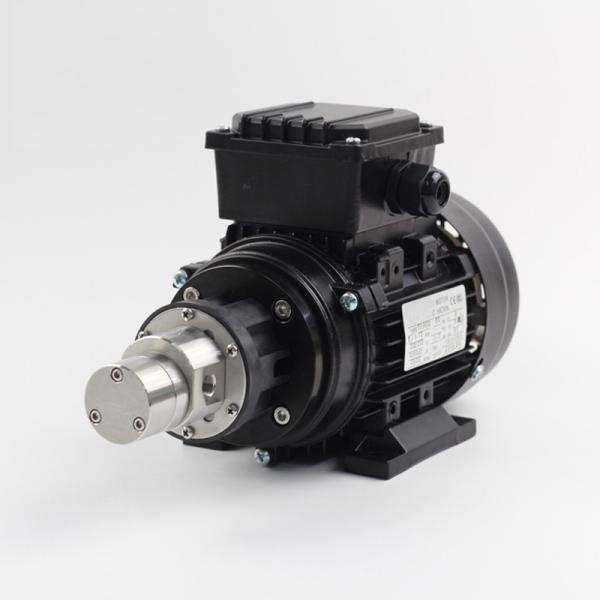

FLOWDRIFT 380V Magnetic Drive Gear Pump KGP-06K Magnetic Drive Pump Stainless Steel for Packing Machine
FLOWDRIFT 380V Magnetic Drive Gear Pump KGP-06K Magnetic Drive Pump Stainless Steel for Packing Machine
FLOWDRIFT 380V Magnetic Drive Gear Pump KGP-06K Magnetic Drive Pump Stainless Steel for Packing Machine
FLOWDRIFT 380V Magnetic Drive Gear Pump KGP-06K Magnetic Drive Pump Stainless Steel for Packing Machine
FLOWDRIFT 380V Magnetic Drive Gear Pump KGP-06K Magnetic Drive Pump Stainless Steel for Packing Machine
FLOWDRIFT 380V Magnetic Drive Gear Pump KGP-06K Magnetic Drive Pump Stainless Steel for Packing Machine
FLOWDRIFT 380V Magnetic Drive Gear Pump KGP-06K Magnetic Drive Pump Stainless Steel for Packing Machine
FLOWDRIFT 380V Magnetic Drive Gear Pump KGP-06K Magnetic Drive Pump Stainless Steel for Packing Machine
FLOWDRIFT 380V Magnetic Drive Gear Pump KGP-06K Magnetic Drive Pump Stainless Steel for Packing Machine
FLOWDRIFT 380V Magnetic Drive Gear Pump KGP-06K Magnetic Drive Pump Stainless Steel for Packing Machine
FLOWDRIFT 380V Magnetic Drive Gear Pump KGP-06K Magnetic Drive Pump Stainless Steel for Packing Machine
FLOWDRIFT 380V Magnetic Drive Gear Pump KGP-06K Magnetic Drive Pump Stainless Steel for Packing Machine
Specifications
Brand Name :
FLOWDRIFT
Model Number :
KGP-06K AC380B-2
Certification :
CE,FDA,ISO9001
Place of Origin :
China
MOQ :
100PCS
Price :
Negotiable
Payment Terms :
T/T, Western Union, MoneyGram,Paypal
Supply Ability :
1000000 Piece/per Year
Delivery Time :
5-15 working days
Packaging Details :
Carton clip bubble pad
Theory :
Magnetic drive gear pump
Structure :
Gear Pump
Usage :
Pesticide spraying
Power :
180W
Pressure :
-1~+20 bar
Application :
Packing machine
Motor :
2 pole Motor
System pressure :
-1~+20 bar
Ports :
G1/8" or G1/4"
Working style :
24 hours continuous worki
Liquid :
water,oil chemical liquid
Description

FLOWDRIFT 380V Magnetic Drive Gear Pump KGP-06K Magnetic Drive Pump Stainless Steel for Packing Machine

KGP-06K magnetic drive gear pump adopt the AC asynchronous motor as power; with the shaft ends of motor connected with the outer annual magnetic loops of REPM to drive the gear pump. This series are featured by constant speed, large torque and operating steadily for a long time. Meanwhile, under the power supply of 380V50(60)Hz,it can regulate the flow of pump if adopting the tri-phase AC variable frequency motor and mating converter.The whole KGP-06 series can be equipped with the type AC asynchronous motor.

Main applications:

Widely used in Science& teaching instrument; Transfer high temperature; Packing machine ;Medical treatment and medicine; Instrument testing; Fine chemistry; Pesticide spraying; Testing equipment.

Model KGP 06 K 04/09/13 / AC380 - 2
Position KGP-06K full range of gear pumps 1 2
1 Motor voltage Tri-phase AC380 = Tri-phase AC.380V
2 Motor Types 2 = 2 pole Motor 4 = 4-pole Motor

Model Rated pressure
(bar)

System pressure

(bar)

Flow rate

(ml/min)

50/(60)HZ

Power

(W)

Voltage

(V)

 Ports

KGP-06K04/AC380-2

 5

-1~+20

50-800

/60-960

180

2 Poles

Three-Phase/

50(60)HZ

AC 380V

 G1/8” or G1/4”

KGP-06K09/AC380-2

 5

100-1800/

120-2160

KGP-06K13/AC380-2

 5

300-2400/

360-2880

FLOWDRIFT 380V Magnetic Drive Gear Pump KGP-06K Magnetic Drive Pump Stainless Steel for Packing MachineFLOWDRIFT 380V Magnetic Drive Gear Pump KGP-06K Magnetic Drive Pump Stainless Steel for Packing MachineFLOWDRIFT 380V Magnetic Drive Gear Pump KGP-06K Magnetic Drive Pump Stainless Steel for Packing Machine
