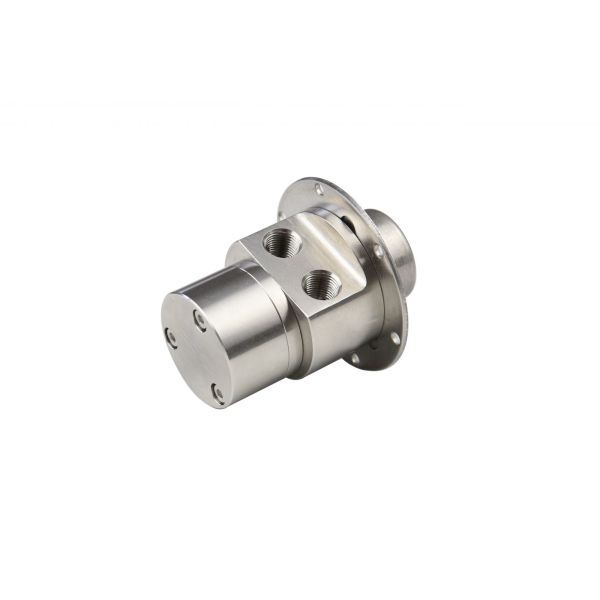

FLOWDRIFT Electric Magnetic Drive Stainless Steel Gear Pump G200 XK/XB series

Specifications

Brand Name :

FLOWDRIFT

Model Number :

G200 series

Certification :

CE;RoHS

Place of Origin :

China

MOQ :

50pcs

Price :

Negotiable

Payment Terms :

100% prepaid via Paypal/Western Union/ T/T/Alipay

Supply Ability :

5000pcs/month

Delivery Time :

3-15days

Packaging Details :

30*30*25 cm; 15kg

Theory :

Vacuum Pump

Structure :

Gear Pump

Usage :

Water

Power :

Electric

Standard or Nonstandard :

Nonstandard

Fuel :

Electric power, Solar, Battery

Pressure :

High Pressure

Application :

hot water, fuel oils, solvent

Description

FLOWDRIFT^TM Electric Magnetic Drive Stainless Steel Gear Pump G200 XK/XB Series Quiet Working Food Grade for Hot Water 0-100℃ High Viscosity 3000CPS Allowed

Name: FLOWDRIFT Electric Magnetic Drive Stainless Steel Gear Pump G200 XKXB series
Brand: FLOWDRIFT
Price: 1 USD

FLOWDRIFT Electric Magnetic Drive Stainless Steel Gear Pump G200 XK/XB series

G200 (XK / XB) Magnetic drive gear pump is a new gear pump, XK Series gear made of special engineering, and quality Stainless steel housing composed of a gear pump. XB Series gear made of high-quality copper, Stainless steel shell composition and quality gear pump, the gear pump lubricating fluid in the absence of the case, can work with structural design of magnetic coupling drive to solve the problem of leakage of the gear shaft end. it is known as a gear pump leak mainly used in the field of micro-delivery medical devices, blood dialysis machines, food processing, filling, selling equipment, analytical instruments.

Model specification

Model	G	2	00	X	K	S	1	A
Position	1	2	3	4	5	6	7	8
1	Pump Type	G = gear pumps
2	Pump Series	2 = 2 series
3	Gear height	04 = 4mm 09 = 9mm 13 = 13mm
4	Shell material	X = Stainless steel 316
5	Gear Material	K = PEEKM plastic B = green copper
6	Pressure limiting valve	S represents a gear pump is equipped with built-in pressure limiting valve, no means no pressure limiting valve
7	Import and export orientation	1 shows a pump inlet direction on the same side, without showing the left and right directions in the import and export sides
8	Importers thread	A threaded hole for the import and export express NPT1 / 8 ", indicates no import and export threaded hole G1 / 8"

Technical parameters

Specifications Model	Displacement (ml / rev)	Rated pressure (bar)	System pressure (bar)	Rev. range (rpm)	Medium viscosity (cps)
G204XK	0.27	5	-0.8 To 20	500 to 3000	0.2 to 3000
G209XK	0.55
G213XK	0.75
G204XB	0.27	3		500 to 3000	500 to 2500
G209XB	0.55
G213XB	0.75

Note: 1, the transmission medium temperature: -30 ℃ ~ 100 ℃ (except frozen); Ambient temperature: -30 ~ 50 ℃.

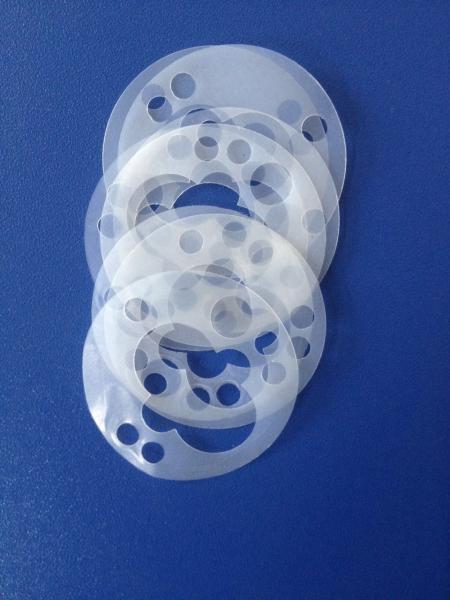

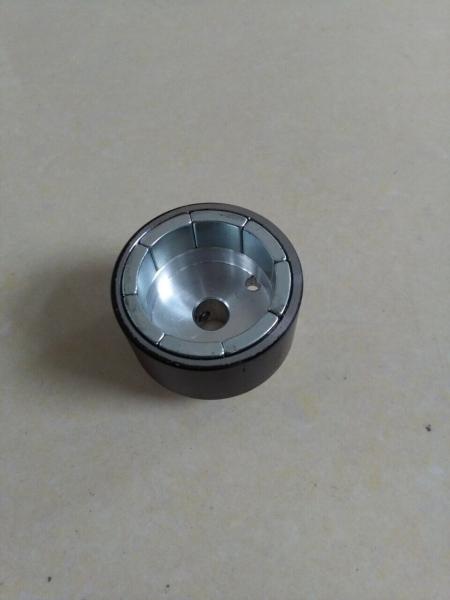

2, the inner rotor gear pump for NdFeB magnets PPS plastic coated, static sealing material is PTFE; rotor cover material Stainless steel 316.

3, the liquid containing the particle diameter of ≤20 microns; PEEK hardness less than the hardness of the particles.

4, G200XK gear pumps all over the liquid material: comply with FDA standards testing requirements.

5, the work: 24 hours of continuous duty.

6, G200XB pump is suitable for conveying oil or medium viscosity ≥500cps media.

7, or may be a high pressure (20bar) used in a closed system under vacuum (-0.8bar).

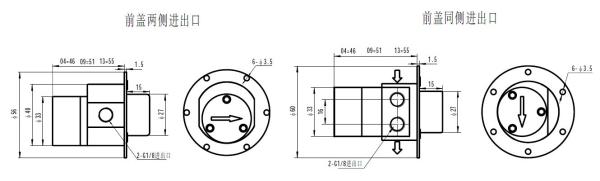

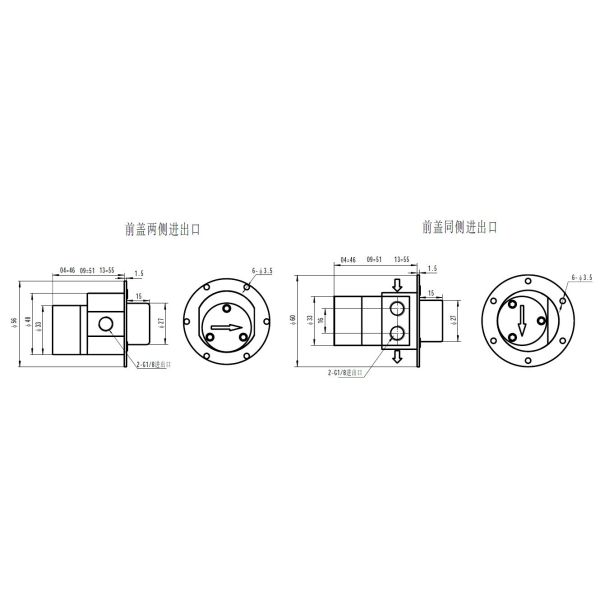

Outline dimension chart:

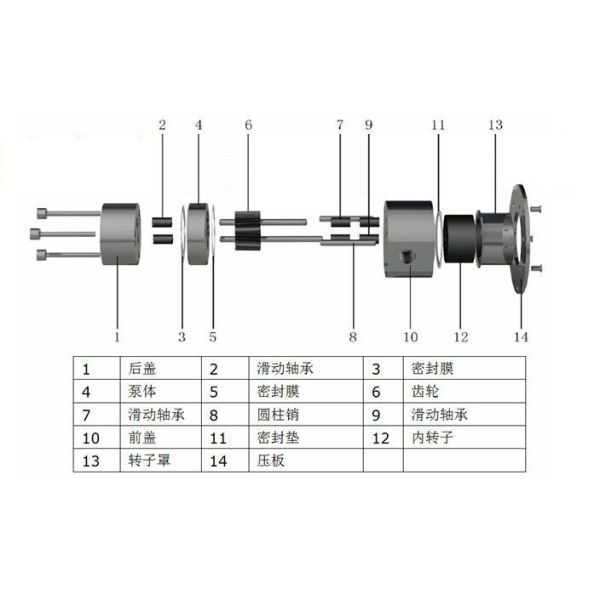

FLOWDRIFT Electric Magnetic Drive Stainless Steel Gear Pump G200 XK/XB series

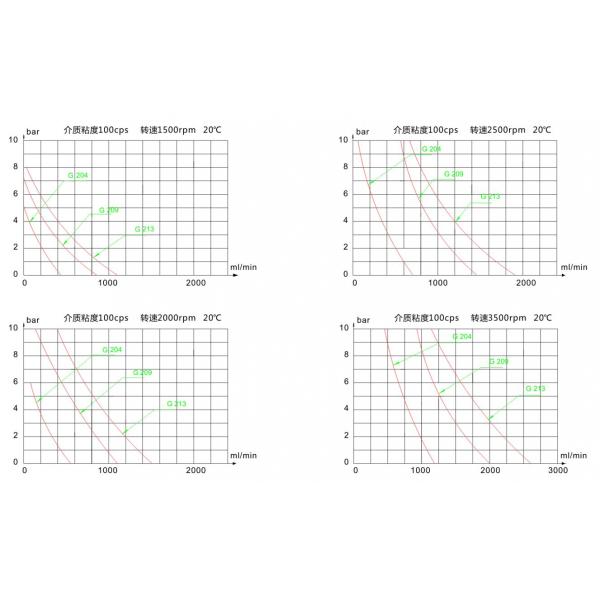

Flow graph:
