FLOWBACK Flexible Bronze DC Impeller Pump KIP-3200
FLOWBACK Flexible Bronze DC Impeller Pump KIP-3200
Specifications
Place of Origin :
China
Brand Name :
FLOWBACK
Certification :
CE;RoHS
Model Number :
KIP-3200 series
MOQ :
10pcs
Price :
Negotiable
Packaging Details :
60*30*25 cm; 27kg
Delivery Time :
3-15days
Payment Terms :
100% prepaid via Paypal/Western Union/ T/T/Alipay
Supply Ability :
5000pcs/month
Theory :
Centrifugal Pump
Structure :
Single-stage Pump
Usage :
Water
Power :
Electric
Standard or Nonstandard :
Nonstandard
Fuel :
Electric power, Solar, Battery
Pressure :
Low Pressure
Application :
water
Description

FLOWBACKTM Flexible Bronze DC Impeller Pump KIP-3200

FEATURES


FLOWBACK Flexible Bronze DC Impeller Pump KIP-3200 Good flow rate, continuously rated pump
FLOWBACK Flexible Bronze DC Impeller Pump KIP-3200 8.5 gpm (32 lpm) at 10ft (3m) total head
FLOWBACK Flexible Bronze DC Impeller Pump KIP-3200 Self -priming up to 4ft (1.2m) allows
FLOWBACK Flexible Bronze DC Impeller Pump KIP-3200 Mounting above wet bilges
FLOWBACK Flexible Bronze DC Impeller Pump KIP-3200 Shower debris presents no problem to this bronze bodied, flexible impeller design
FLOWBACK Flexible Bronze DC Impeller Pump KIP-3200 Simple design means fewer wearing parts-all user serviceable

FLOWBACK Flexible Bronze DC Impeller Pump KIP-3200 Complies with USCG 183.410 and ISO 8846
FLOWBACK Flexible Bronze DC Impeller Pump KIP-3200 MARINE (ignition Protection)
FLOWBACK Flexible Bronze DC Impeller Pump KIP-3200 ISO 8849 MARINE (Bilge Pump Standard)

Features & Benefits
Seamless Shell Design
Thermally Protected Motor
High Quality Efficient Motor
Self-priming
Stainless Steel Shaft

Typical Applications
Extreme duty
Boats
Industrial use

PUMP
Liquid Temperature
140°F (60°C) Max.
Priming Capabilities
4 feet (1.2 m) suction lift
Power
10 amps max current draw
Max Pressure
3 m (9.8 ft)
Inlet/Outlet Ports
3/4" FNPT (19 mm)
Weight
5.46 lbs (2.48 kg)

MOTOR
Type
High quality seamless design
that is thermally protected
Leads
Wire leads
Temperature Limits
140°F (60°C) Max.
Duty Cycle
Intermittent
Voltage
12v/24v

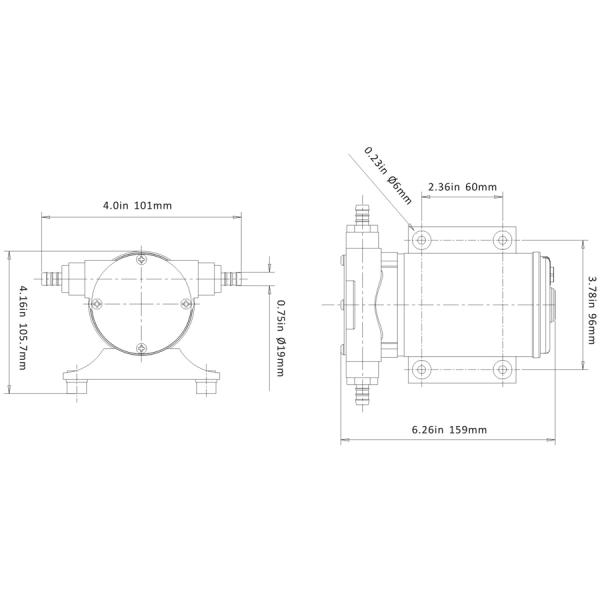

DIMENSIONS DRAWING

FLOWBACK Flexible Bronze DC Impeller Pump KIP-3200

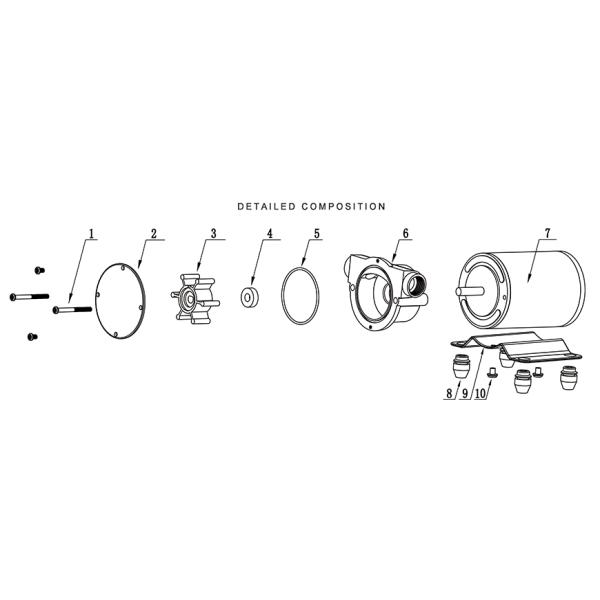

EXPLODED VIEW

FLOWBACK Flexible Bronze DC Impeller Pump KIP-3200

Key Description Quantity
1 Screw 1 4
2 Stainless Stell Shell 1
3 Impeller 1
4 Oil-Seal 1
5 O Ring 1
6 Pump Head 1
7 Motor 1
8 Baste Plate Assembly 1
9 Screw 2 2
10 Rubber Feet 4

STANDARD PUMP CONFIGURATIONS

Model GPM/LPM Dimensions Impeller Ports Lead Molded Voltage

Amps Draw(A)
KIP-3200-12 8.5/32.0 8.46" x 5.31" x 4.33"
215 x 135 x 110mm		 Rubber & copper 3/4" FNPT Yes N/A 12V 7.0
KIP-3200-24 8.5/32.0 8.46" x 5.31" x 4.33"
215 x 135 x 110mm		 Rubber & copper 3/4" FNPT Yes N/A 24V 3.5

CHEMICAL RESISTANCE

Chemical Resistance Code Max Temperature Resistance Code

A —— Excellent

B —— Good

C —— Ordinary

× —— Unacceptable

－ —— Unusable

1 —— 20℃(68F)

2 —— 40℃(104F)

3 —— 60℃(140F)

4 —— 80℃(176F)

5 —— 100℃(212F)

6 —— 120℃(248F)
CHEMICAL MATERIAL
PP PTFE FKM NBR EPDM 95 Ceramic
Sulfuric Acid 0-10% A4 A6 A6 B2 A4 A5
10-75% A3 A6 A4 X A3 A5
75-100% B2 A4 A4 － B2 A5
Nitric Acid 10% A3 A5 A5 X A2 A5
30% A2 A6 A6 X A2 A5
50% B2 A3 A1 X X A5
Hydrochloric Acid 0-25% A4 A6 A3 B1 C3 A5
25-40% A4 A6 A2 X C2 A5
Hydrofluoric Acid 10% B2 A6 A3 X A3 －
30% C2 A6 A4 － B3 －
60% X A6 A4 － C2 －
Acetic Acid 20% A2 A6 B1 B2 A2 A5
80% B1 A6 X － － A5
Sodium Hydroxide 20% A3 A6 B1 B2 A3 －
50% A3 A6 X B1 A4 －
Bromine Water C1 A3 A2 － X A1
Ethyl Alcohol A2 A3 A3 X B3 A3
Ketone A2 A6 X － B2 A3
Freon 12 X A6 A1 X B1 A4
Aluminum Chloride A4 A6 A5 B4 A4 A4
Ammonia Liquid A1 A6 C1 B4 B3 A3
Aqua Regia C2 A5 B2 － C2 A4
Formaldehyde A4 A6 A4 X A4 A4
Gasoline X A6 B3 B3 X A4
Kerosene A1 A6 A1 B1 X A4
Methyl Alcohol A3 A6 B2 B4 A3 A5
Toluene C1 A4 B1 － X A5
Trichloroethylene C1 A6 A1 － X A4
Xylene X A6 B1 － X A5
Nitric Acid Anhydrous C1 A3 A1 － X A5
Oleum X A6 A4 － X A5
Potassium Hydroxide A4 A6 B1 C2 A5 －

USAGE SCOPE

Widely used in general industrial equipment, medical equipment, chemical equipment, agricultural (lawns and gardens), tourist vehicles, special vehicles, ships, beverage, vehicle cleaning, carpet cleaning, floor cleaning, water purification and water treatment equipment.
1. Production of agricultural use electric sprayer, pressure sprayer can also be hand modified electric sprayer (pressure sprayer in hand directly on the micro-pumps, adding a battery or hand lamp can be).
2. Solve vehicles, ships, yachts, boats, etc. in use diet, wash, shower, toilet, wash water.
3. Food and beverage processing and handling equipment, to achieve the transfer of liquid food, distribution, filling and so on.
4. Domestic water supply. For example, water-saving toilet, water-saving toilet, electric toilet, pressurized water system.
5. Solar energy industry.
6. Water purification industry. For example, purification equipment, water treatment equipment, drinking fountains, water machines. For towel disposal, drinking fountains, Coke machines, juice machines, dishwashers, disinfection machines, solar bonsai, car washing and other manufacturers supporting the glass.
7. Other liquid transfer needs, as well as measurement of spray equipment and systems. For example, garbage trucks, water truck, carpet cleaning equipment, floor cleaning equipment, cleaning equipment, vehicles, road construction equipment, medical equipment, chemical equipment, chemical equipment, disinfection equipment, cooling systems, pressurization systems.
