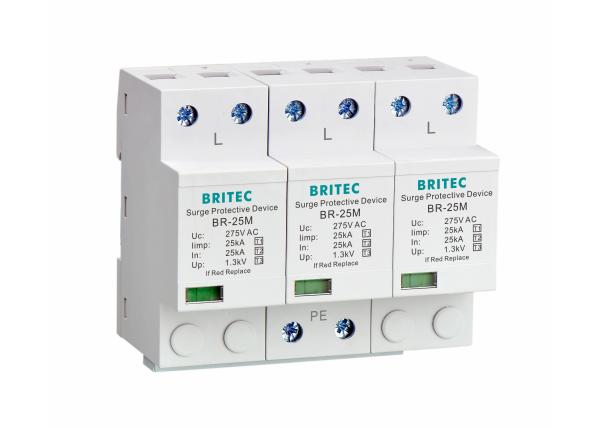

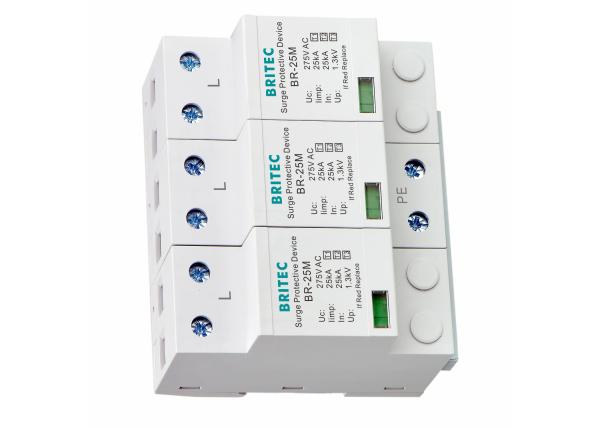

SPD 275v Lightning Surge Protectors 3 Phase Lightning Arrester Type 1
SPD 275v Lightning Surge Protectors 3 Phase Lightning Arrester Type 1
SPD 275v Lightning Surge Protectors 3 Phase Lightning Arrester Type 1
SPD 275v Lightning Surge Protectors 3 Phase Lightning Arrester Type 1
Specifications
Brand Name :
BRITEC
Model Number :
BR-25M 3P
Certification :
CE
Place of Origin :
China
MOQ :
100 Piece/Pieces
Payment Terms :
L/C, D/A, T/T, Western Union
Supply Ability :
50000 Piece/Pieces Month
Delivery Time :
Shipped in 15 days after payment
Packaging Details :
EXPORT PACKING
Item Name :
Lightning protection device
Place of Origin :
Zhejiang, China (Mainland)
Model Numbers :
BR-25M 3p
Pole number :
3P
Rated voltage :
220V
Uc :
275V
Iimp :
25kA
Application :
3 phase
Class :
Type 1
Description

SPD 275v Lightning Surge Protectors 3p Lightning Protection Devices Type 1

SPD 275v Lightning Surge Protectors Features:

• In parallel module type surge protective device.
• Large lightning current discharge capacity, large circulation, each line max. discharge current could reach Imax= 100kA(8/20us).
• Module design, nice sealing performance.
• Matched and faulty indicator window.
• Remote signal interface: optional.
• Installed in 35mm DIN rail, easy to wire.
• Could supply different working voltage level and lightning discharge current, also could customized according to different requirement.

SPD 275v Lightning Surge Protectors Technology characteristic:

BR-25M 3P
Max. continuous operating a.c. voltage Uc 275V
Voltage protection level Up ≤1.3kV
Lightning impulse current (10/350us) Iimp 25kA
Nominal discharge current (8/20us) In 25kA
Maximum discharge current (8/20us) Imax 100kA
Response time tA ≤25ns
Cross-section area (Min.) 4mm2
Cross-section area (Max.) 35mm2
Max. backup fuse 315A
Operating temperature range Tu -40℃—80℃
Relative humudity(25°C) ≤95%
For mounting on 35mm Din rail
Enclosure material Thermal plastic UL94-V0

Dimension:

SPD 275v Lightning Surge Protectors 3 Phase Lightning Arrester Type 1

SPD 275v Lightning Surge Protectors Application:

Suits for 220V power supply distribution lightning protection.

Factory:
SPD 275v Lightning Surge Protectors 3 Phase Lightning Arrester Type 1
Certificate:
SPD 275v Lightning Surge Protectors 3 Phase Lightning Arrester Type 1
Shipping:
SPD 275v Lightning Surge Protectors 3 Phase Lightning Arrester Type 1
FAQ:

Q1: If I'm interested in your product when I can receive your quotation and detail information after send the enquiry?

A1: All your enquiry will be replied in 24hours.

Q2: Can I get a sample before the order because I really don't how is your product quality?

A2: Of course! We also think sample order is the best way to build the trust.

Q3: Do you have a catalogue? Can you send me the catalogue to have a check of all your products?

A3: Yes, We have product catalogue. Please contact us on line or send an Email to sending the catalogue.
