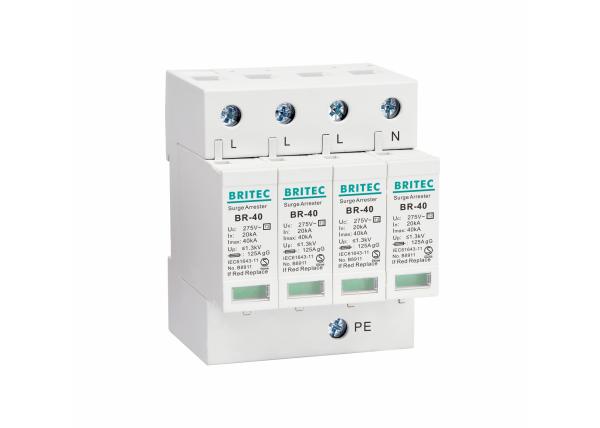

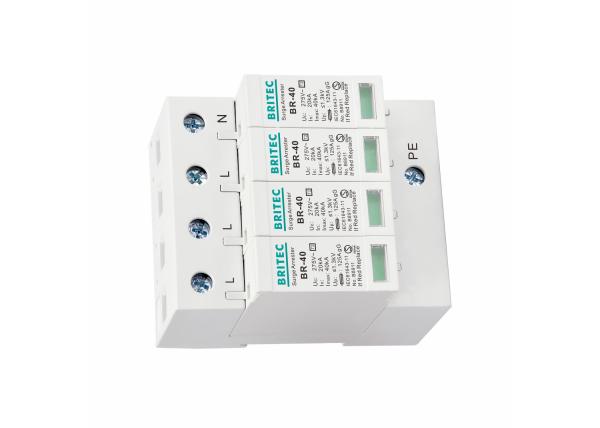

3 Phase Type 2 Surge Protection Device BR-40 4P 4 Pole Surge Protector
3 Phase Type 2 Surge Protection Device BR-40 4P 4 Pole Surge Protector
3 Phase Type 2 Surge Protection Device BR-40 4P 4 Pole Surge Protector
3 Phase Type 2 Surge Protection Device BR-40 4P 4 Pole Surge Protector
Specifications
Brand Name :
BRITEC
Model Number :
BR-40 4P
Certification :
CB/CE/TUV
Place of Origin :
China
MOQ :
100 Piece/Pieces
Payment Terms :
L/C, D/A, T/T, Western Union
Supply Ability :
50000 Piece/Pieces Month
Delivery Time :
Shipped in 15 days after payment
Packaging Details :
EXPORT PACKING
Item Name :
lightning surge arrester
Type :
Ac Surge Protector
Pole number :
4P
Uc :
275V
In :
20kA
Imax :
40kA
Enclosure :
Thermalplastic UL94-VO
Tu :
-40℃-80℃
Application :
surge protective device is suitable for three-phase TN-S system
Certificate :
TUV/CE/ROHS/ISO9001
Description

3 Phase Type 2 Surge Protection Device BR-40 4P 4 Pole Surge Protector

3 Phase Type 2 Surge Protection Device Features:

- High performance varistor with thermal disconnection tripping device.
- Plug-in module/base design facilitate replacement of a failed module without the need to remove system wiring etc.
- Protection class: Type 2,Class II.
- Pole number: 4P.
- The core parts are metal oxide vristor components with high discharge capacity.
- Low residual voltage and quick response.
- With remote signaling contact for control device.
- Fault indication via red mark in the inspection window.

3 Phase Type 2 Surge Protection Device Technology characteristic:

Specification BR-40 4P
Item name Surge Arrester
SPD dassification according to EN61643-11 Type 2
SPD dassification according to EN61643-11 Class II
Max continuous 0perating a.c. voltage Uc 275V
Norminal discharge current (8/20µs) In 20kA
Max. discharge current (8/20µs) Imax 40kA
Voltage protection level Up ≤1.3kV
Max. backup fuse 125A gG
Response time tA ≤25ns
For mounting on 35mm Din rail
Degree of protection IP20
Operating temperature range Tu -40℃—80℃
Operating state/fault indication green/red
Cross-section area (Min.) 4mm²
Cross-section area (Max.) 35mm²
Enclosure material Thermal plastic UL94-V0

Dimension:

3 Phase Type 2 Surge Protection Device BR-40 4P 4 Pole Surge Protector

3 Phase Type 2 Surge Protection Device Application:

- Protecting low-voltage consumers' installations against indirect lightning discharges.
- Used to guard sensitive equipments from voltage spike.
- For using in the lightning protection zones concept at boundary 1-2.

Production process:

3 Phase Type 2 Surge Protection Device BR-40 4P 4 Pole Surge Protector

About us:

Wenzhou Britec Electric Co., Ltd. is a professional manufacturer, specialized in SPDs. The factory was founded in 2003 in Yueqing, Zhejiang, China. Main products are: AC surge protector, DC (PV) surge protection device, data lightning protection, LED lightning protective device and most of products got CE and TUV certificated.

3 Phase Type 2 Surge Protection Device BR-40 4P 4 Pole Surge Protector

Laboratory:

3 Phase Type 2 Surge Protection Device BR-40 4P 4 Pole Surge Protector

Certification:

3 Phase Type 2 Surge Protection Device BR-40 4P 4 Pole Surge Protector

Shipping:

3 Phase Type 2 Surge Protection Device BR-40 4P 4 Pole Surge Protector

FAQ:

Q1: How about your experience?
A: We have our own factory and in-house test laboratory, our R&D department have more than 17 years experiences.

Q2: What's your advantage?
A: Fast delivery: 3 weeks. Large scale production drive cost down: 300,000 pieces per year. Qulaity recognized :cooperate with transnational company.

Q3: Is custom design package acceptable?
A: Inner box and out carton are made as per international standard. We can make packaging according to customer's need.

Q4: Could you do OEM for us?
A: Sure, we accept OEM and ODM order, please supply with the letter of Authorization for the brand.

Q5: How about warranty?
A: 2 years.
