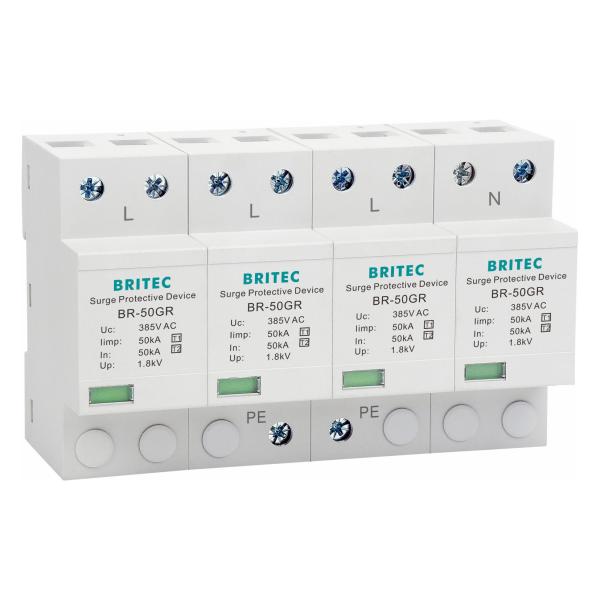

White Color Small Surge Protector Type 1 Spd Surge Protection Device
White Color Small Surge Protector Type 1 Spd Surge Protection Device
White Color Small Surge Protector Type 1 Spd Surge Protection Device
White Color Small Surge Protector Type 1 Spd Surge Protection Device
Specifications
Brand Name :
BRITEC
Model Number :
BR-50GR 4P
Place of Origin :
China
MOQ :
100 Piece/Pieces
Price :
USD 45-120 Piece/Pieces
Payment Terms :
L/C, D/A, T/T, Western Union
Supply Ability :
50000 Piece/Pieces mONTH
Delivery Time :
Shipped in 15 days after payment
Packaging Details :
EXPORT PACKING
Item Name :
surge protective
Type :
Ac Surge Protector
Material :
Plastic
Class :
SPD classification according to EN61643-11 Type 1
Pole number :
1P,2P,3P,4P,1+1,3+1
Enclosure :
Thermalplastic UL94-VO
Protection :
IP20
Certificate :
CE/ROHS/ISO9001 approved standard
Tu :
-40℃-80℃
Application :
surge protective is suitable for three-phase system
Description


White Color Small Surge Protector Type 1 Spd Surge Protection Device

White Color Small Surge Protector Features:

Endurable, sustains thousands of strikes.
Status indication.
Uc 150V/275V/320V can be achieved.
Protection class: Type 1, Class I.
Pole number: 4P
Widely suitable for three-phaseTN-S system, for protecting the buildings to avoid national defense

Dimension:
White Color Small Surge Protector Type 1 Spd Surge Protection Device

White Color Small Surge Protector Product characteristics:

Specification BR-50GR 4P
Item name Surge Protective
SPD dassification according to EN61643-11 Type 1
SPD dassification according to IEC61643-11 Class I
Max continuous 0perating a.c. voltage Uc 275V
Lightning impulse current (10/350µs) limp 50kA
Norminal discharge current (8/20µs) In 50kA
Maximum discharge current (8/20µs) Imax 200kA
Voltage protection level Up ≤1.8kV
Shorting-circuit current rating a.c. Isccr 25kA rms

Max. backup fuse

350A gG

Response time tA

≤100ns

For mounting on 35mm Din rail
Degree of protection IP20
Operating temperature range Tu -40℃—80℃
Cross-section area (Min.) 4mm²
Cross-section area (Max.) 35mm²

Enclosure material

Thermal plastic UL94-V0

Workshop:

Britec owns advanced test equipments and product line, perfect management, professional technical personnel and well-trained workers. Britec team keep developing newest product for our customer, that is why technical level of our products can be reached to the leading level, we also can help customer OEM/ODM.

White Color Small Surge Protector Type 1 Spd Surge Protection Device

Company Information:

Wenzhou Britec Electric Co., Ltd. was established in 2003, is a professional surge protective devices (SPD) manufacture with many years experiences.We are providing quality products, competitive price, prompt delivery and excellent service, and looking forward to even greater cooperation with overseas trade based on mutual benefits.

White Color Small Surge Protector Type 1 Spd Surge Protection Device

Exhibition:

Britec have strong sales team, our surge protection device are sold to many countries around the world. Europe and Asia are our main market. We would like to cooperate with global customers and help you success in your market.

White Color Small Surge Protector Type 1 Spd Surge Protection Device

Certifications:

Britec offer full range of SPD products which has CE, RoHS,TUV, SEMKO, CB certification.The company implements ISO9001 quality mangement system.

White Color Small Surge Protector Type 1 Spd Surge Protection Device

Product Uses:

Britec have developed a wide range of products mainly covering requirements in the area of low voltage lightning protection, such as SPD for power system,PV system and data , etc. All these products have been widely applied in electronic system, computer network and security system, protection for power industry, petroleum chemical industry and national defense industry.

FAQ:
Q1: What's about MOQ?
A1: First order MOQ=100pcs.
Q2: How could I get a sample?
A2: We will ship a sample to you. You will be charged a sample price plus all related shipping costs. Express delivery charge depends on the quantity of the samples.
Q3: How about your experience?
A3: We have our own factory and in-house test laboratory, our R&D department have more than 17 years experiences.
