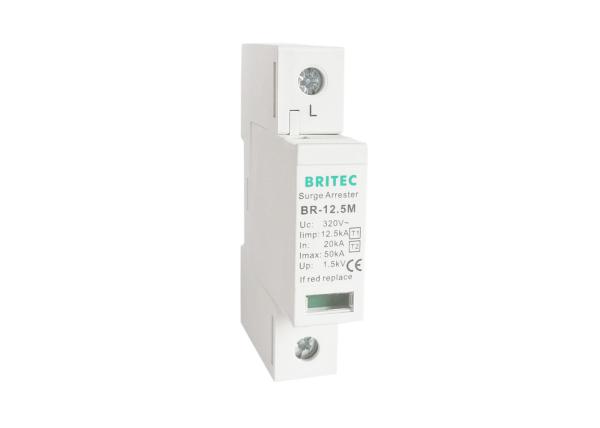

320V White Power Surge Protection Device One Pole Type 1+2 AC Class 1+2 SPD
320V White Power Surge Protection Device One Pole Type 1+2 AC Class 1+2 SPD
320V White Power Surge Protection Device One Pole Type 1+2 AC Class 1+2 SPD
320V White Power Surge Protection Device One Pole Type 1+2 AC Class 1+2 SPD
Specifications
Brand Name :
BRITEC
Model Number :
BR-12.5M 320 1P
Place of Origin :
China
MOQ :
100 Piece/Pieces
Payment Terms :
L/C, D/A, T/T, Western Union
Supply Ability :
50000 Piece/Pieces Month
Delivery Time :
20 Days
Packaging Details :
EXPORT PACKING
Item Name :
Surge protector device
Place of Origin :
Zhejiang, China (Mainland)
Type :
Type 1+2
Material :
Thermal plastic
Type item :
Power SPD
Uc :
320V
Iimp :
12.5kA
Usage :
Low Voltage
Description

320V White Surge Protector Device One Pole Type 1+2 AC Power Class 1+2 SPD

320V White Power Surge Protection Device Features:

• Indoor fixed installation, voltage limited type.
• Module design.
• Large lightning current discharge capacity.
• Installed in 35mm DIN rail, easy to wire.
• Easy to maintain.
• When the SPD works normally, the visible window displays green, and when it fails, it displays red.
• Time of response <25ns.
• Could supply different working voltage level and lightning discharge current, also could customized according to different requirement.

320V White Power Surge Protection Device Technology characteristic:

BR-12.5M 320 1P
Max. continuous operating a.c. voltage Uc 320V
Voltage protection level Up ≤1.5kV
Lightning impulse current (10/350us) Iimp 12.5kA
Nominal discharge current (8/20us) In 20kA
Max. discharge current (8/20us) Imax 50kA
Response time tA ≤25ns
Test Standard IEC61643-1
Operating temperature range Tu -40℃—80℃
Cross-section area (Min.) 4mm2
Cross-section area (Max.) 35mm2
For mounting on 35mm Din rail

Dimension:

320V White Power Surge Protection Device One Pole Type 1+2 AC Class 1+2 SPD

Shipping:

• Shipment port: SHANGHAI/NINGBO.

• By Air or by Sea for batch goods, Airport / Port receiving.

• Customers specifying freight forwarders or negotiable shipping methods.

320V White Power Surge Protection Device One Pole Type 1+2 AC Class 1+2 SPD

Our Services:

• One to one service, feedback within 24 hours.

• Design for special packing, products printing and logo OEM.

• Find the solution for any problems actively.

Certificate:

320V White Power Surge Protection Device One Pole Type 1+2 AC Class 1+2 SPD

Workshop:

320V White Power Surge Protection Device One Pole Type 1+2 AC Class 1+2 SPD

FAQ:

Q1: If I'm interested in your surge protector when I can receive your quotation and detail information after send the enquiry?

A1: All your enquiry will be replied in 24hours.

Q2: Can I get a sample before the order because I really don't know how is your Surge diverter quality?

A2: Of course! We also think sample order is the best way to build the trust. But in our company samples are not free.

Q3: How's the delivery? Because I really need them is urgently?

A3: For sample order 7 days will be no problem. And for regular order we promise in 30 days.
